N Male to N Male High-Performance RF Test & Measurement Cable Assembly – Use CFT780MH Coax

N Male to N Male High-Performance RF Test & Measurement Cable Assembly – Built with CFT780MH Coaxial Cable

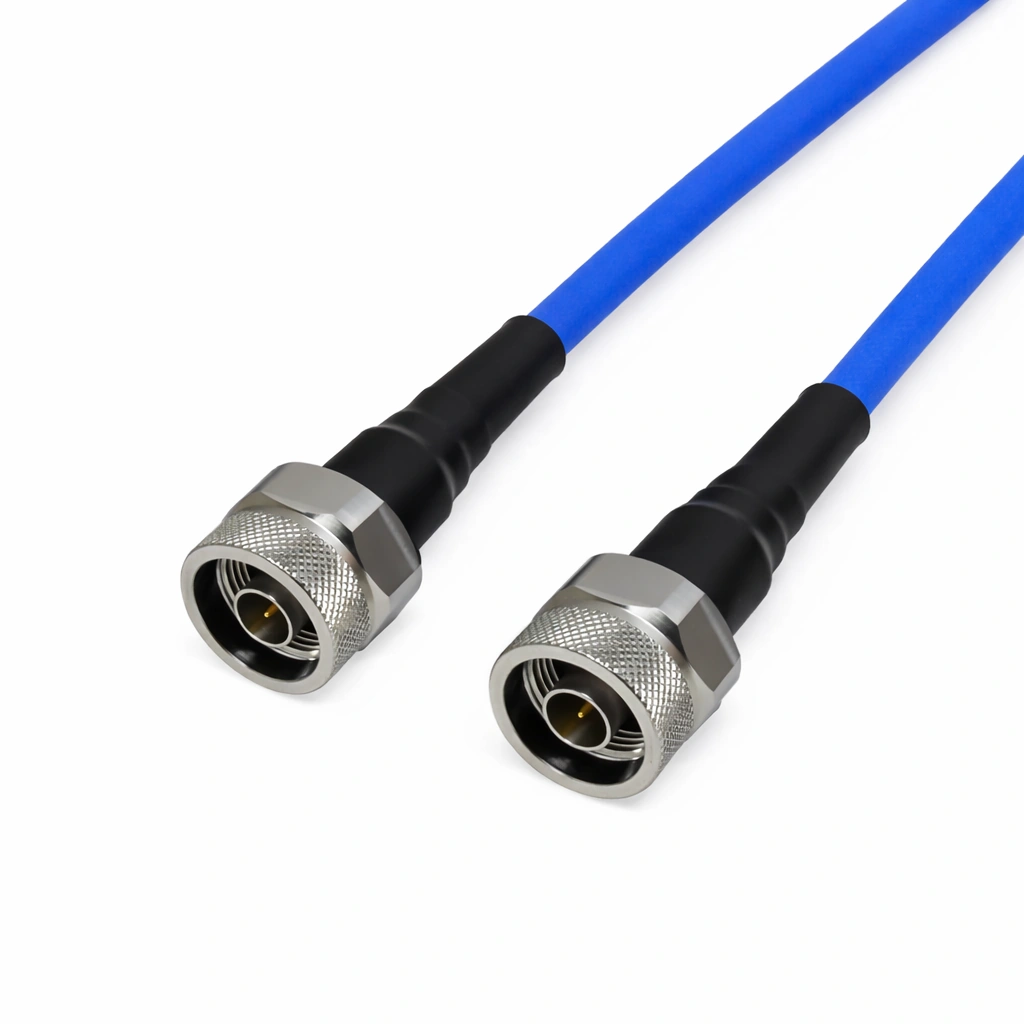

The N Male to N Male High-Performance RF Test & Measurement Cable Assembly — model TCAN-NMNM-1M — is designed for robust RF and microwave test setups operating up to 18 GHz. This 1 meter assembly is manufactured using Mechanc’s CFT780MH coaxial cable, a high-stability, rugged variation of the CFT780M Phase-Stable 18 GHz Ultra-Flexible Precision Test Coaxial Cable. Both ends are terminated with durable N male connectors (reference N-JCFT780MH-1), making this cable assembly ideal for N-type based measurement systems and production test environments.

Reliable RF Performance up to 18 GHz

The TCAN-NMNM-1M supports a continuous operating range from DC to 18 GHz, providing the stable impedance and low reflection required for accurate RF and microwave measurements. With a 1.25 typical VSWR and 1.03 dB typical insertion loss over 1 meter, the assembly ensures clean signal transmission for VNA calibration, S-parameter verification, RF module evaluation, and general-purpose test benches using N-type interfaces.

Phase-Stable CFT780MH Construction for Repeatable Measurements

The CFT780MH coaxial cable is engineered to maintain electrical stability under movement, bending, and thermal variation. It delivers ±5° mechanical phase stability and ±0.05 dB amplitude stability, helping preserve measurement repeatability during frequent cable repositioning. With a robust 7.8 mm outer diameter, 80 mm minimum bend radius, and 20,000-cycle typical bend life, this assembly is suitable for intensive use in RF laboratories and production lines. An 82% velocity of propagation supports accurate time-domain and phase-sensitive measurements across a wide –55 °C to +165 °C operating range.

Rugged N-Type Interfaces for Laboratory and Production Use

Each end of the TCAN-NMNM-1M uses precision N-JCFT780MH-1 male connectors designed for secure, low-reflection mating at microwave frequencies. These rugged N-type interfaces are well-suited to high-power test setups, system cabling, and automated measurement platforms. For additional N-type solutions, explore the complete N RF Cable Assemblies series.

Qualified for Professional RF & Microwave Test Systems

As part of Mechanc’s TC-series portfolio, every TCAN-NMNM-1M assembly is fully tested for VSWR, insertion loss, phase stability, and mechanical endurance. The cable is produced to meet stringent quality and environmental standards, including REACH and RoHS compliance, ensuring long-term reliability in demanding RF and microwave measurement environments.
