N Male to N Male High-Performance RF Test & Measurement Cable Assembly – Use CFT500MWH18 Coax

N Male to N Male High-Performance RF Test & Measurement Cable Assembly – Built with CFT240H18 Coaxial Cable

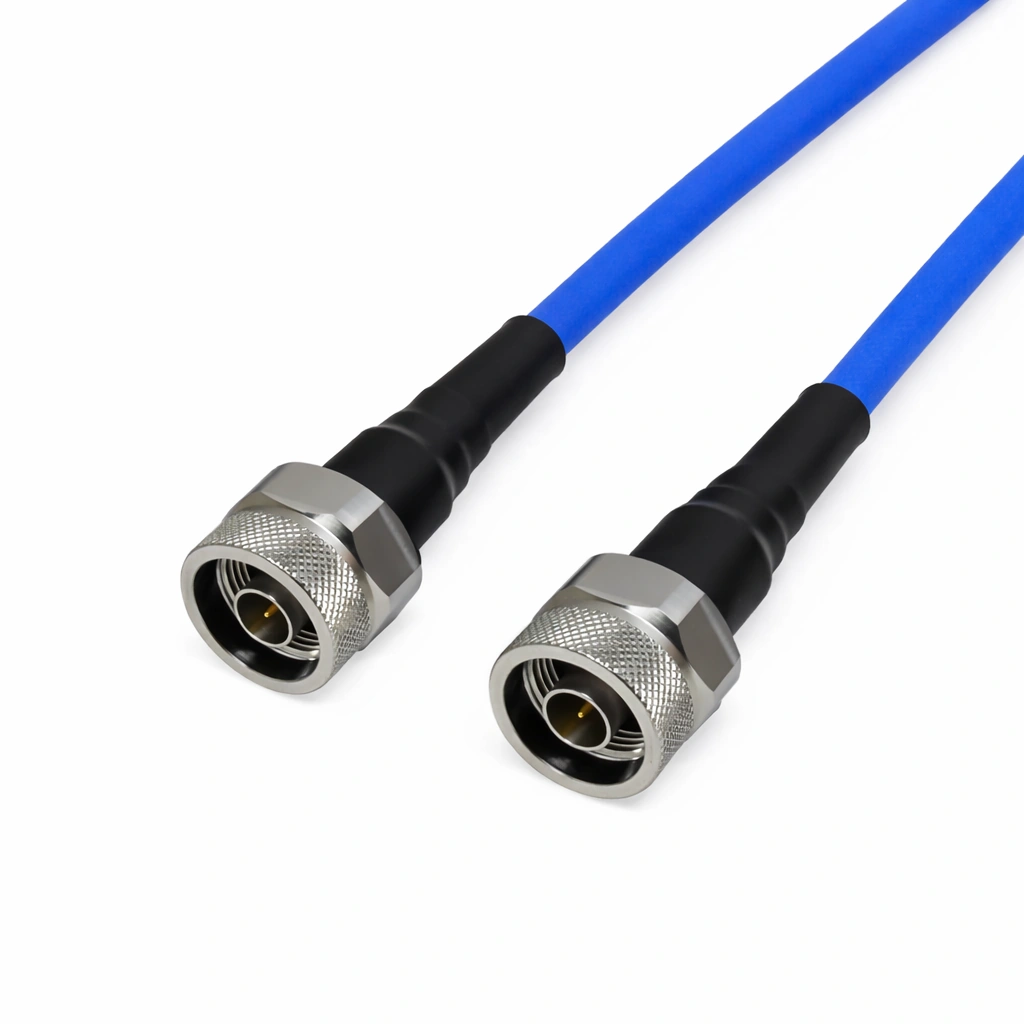

The N Male to N Male High-Performance RF Test & Measurement Cable Assembly — model TCBN-NMNM-1M — is designed for stable, repeatable RF performance up to 18 GHz. This 1 meter assembly uses Mechanc’s CFT240H18 coaxial cable, a high-stability, ruggedized evolution of the CFT240 Phase-Stable 67 GHz Precision Test Coaxial Cable. Both ends are terminated with robust N male connectors (reference N-JCFT240H18-1), making this assembly ideal for N-type RF systems requiring durability and repeatability.

Reliable RF Performance up to 18 GHz

The TCBN-NMNM-1M supports a continuous operating range from DC to 18 GHz, providing the low-reflection, stable impedance essential for accurate RF and microwave measurements. It delivers a 1.2 typical VSWR and a 1.08 dB typical insertion loss over 1 meter, enabling dependable VNA calibration, S-parameter validation, module testing, and broadband system verification in N-type test environments.

Phase-Stable CFT240H18 Construction for Consistent Measurements

The CFT240H18 coaxial cable is engineered for electrical stability during motion, bending, and repeated handling. It provides ±6° mechanical phase stability and ±0.06 dB amplitude stability, ensuring reliable measurement repeatability. Its compact 2.4 mm outer diameter, 24 mm minimum bend radius, and 2,000-cycle bend life support long-term durability in laboratory and production settings. An 81% velocity of propagation contributes to accurate time-domain and phase-dependent measurements across a wide –55 °C to +165 °C temperature range.

Rugged N-Type Interfaces for Professional RF Testing

Each end features precision N-JCFT240H18-1 male connectors designed for low-reflection, repeatable mating at microwave frequencies. These durable N-type interfaces provide secure engagement for high-power test setups, benchtop instrumentation, and automated measurement platforms. Explore additional assemblies in this interface family within the N RF Cable Assemblies category.

Qualified for Advanced RF & Microwave Measurement Systems

As part of Mechanc’s high-performance TC series, each TCBN-NMNM-1M assembly undergoes complete testing for VSWR, insertion loss, amplitude stability, and phase repeatability. The product is fully compliant with REACH and RoHS standards, ensuring long-term reliability for demanding RF and microwave laboratory applications.
