N Male to N Male High-Performance RF Test & Measurement Cable Assembly – Use CFT500MWH6 Coax

N Male to N Male High-Performance RF Test & Measurement Cable Assembly – Built with CFT500MWH6 Coaxial Cable

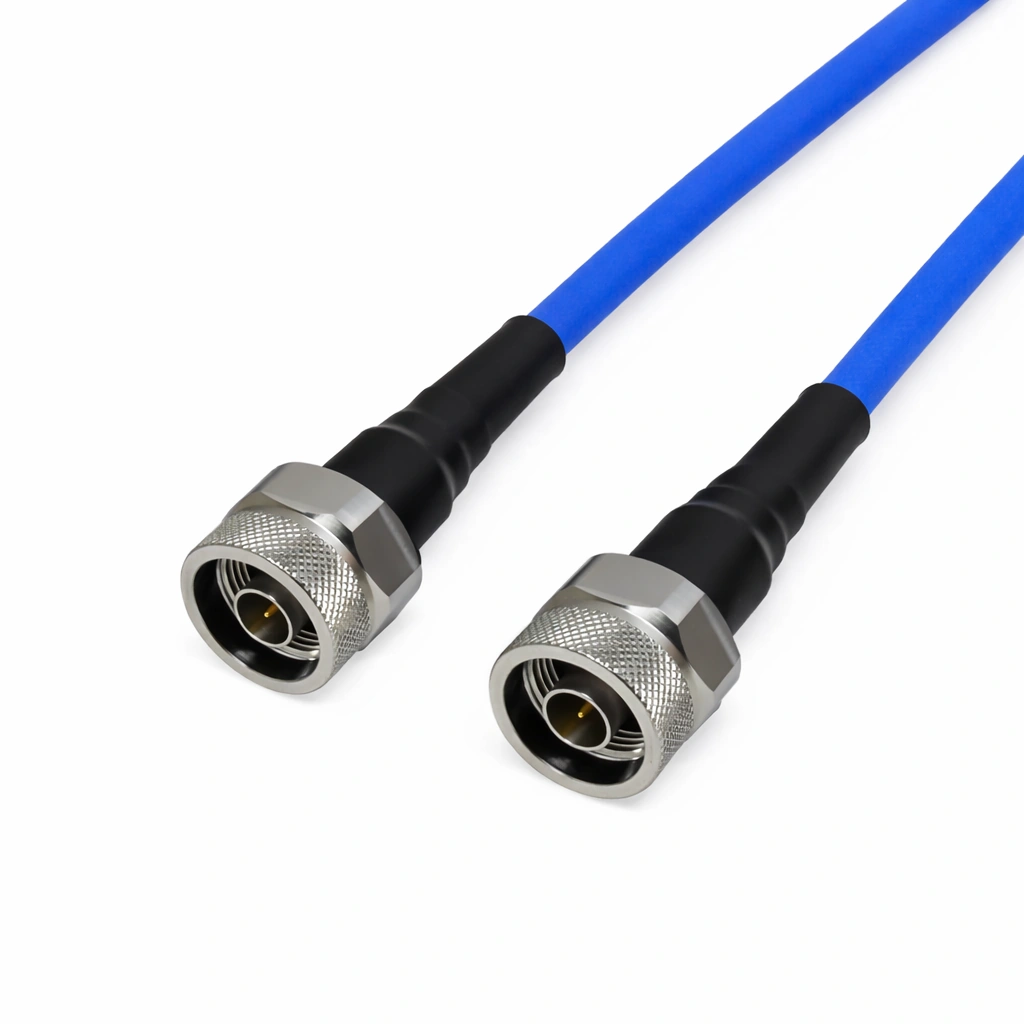

The N Male to N Male High-Performance RF Test & Measurement Cable Assembly — model TCBS-NMNM-1M — is a robust, general-purpose RF test cable designed for accurate measurements up to 6 GHz. This 1 meter assembly is built using Mechanc’s CFT500MWH6 coaxial cable, a rugged, phase-stable evolution of the CFT500MW Phase-Stable 26.5 GHz Ultra-Flexible Precision Test Coaxial Cable. Both ends are terminated with durable N male connectors (reference N-JCFT500MWH6-1), providing a secure, low-reflection interface for N-type RF equipment and system interconnects.

Stable RF Performance up to 6 GHz

Optimized for everyday RF measurements, the TCBS-NMNM-1M supports a DC–6 GHz operating band with consistent impedance and low return loss. The assembly delivers a 1.2 typical VSWR and a 0.92 dB typical insertion loss over its 1 meter length, ensuring clean signal transmission for network analyzer checks, gain and return-loss verification, system-level testing, and general-purpose N-type bench work.

Phase-Stable, Long-Life CFT500MWH6 Construction

The CFT500MWH6 coaxial cable is engineered for electrical stability and mechanical durability in active test environments. It offers ±3° mechanical phase stability and ±0.05 dB amplitude stability, helping preserve measurement repeatability during frequent cable movement or re-routing. A robust 5.1 mm outer diameter, generous 51 mm minimum bend radius, and impressive 50,000-cycle bend life make this assembly well-suited to intensive laboratory and production use. With an 82% velocity of propagation, it also supports accurate time-domain and phase-sensitive RF characterization across a wide –55 °C to +165 °C operating temperature range.

N-Type Interfaces for Laboratory & System Interconnects

Each end of the TCBS-NMNM-1M uses precision N-JCFT500MWH6-1 male connectors designed for secure mating, low reflection, and repeatable performance at RF and lower microwave frequencies. These rugged N-type interfaces are ideal for high-power test setups, rack-level system cabling, and automated test stations. For additional N-type configurations, explore the N RF Cable Assemblies series.

Qualified for Professional RF Test Environments

As part of Mechanc’s TC-series product line, every TCBS-NMNM-1M assembly is fully tested for VSWR, insertion loss, phase stability, and mechanical endurance. Manufactured in compliance with REACH and RoHS requirements, this cable assembly provides a reliable, long-life interconnect solution for professional RF and microwave measurement systems.
