N Male to N Male Phase Stable Precision Test RF Cable Assembly – Use CFT780MP Coax

N Male to N Male Phase-Stable Precision Test RF Cable Assembly – Built with CFT780MP Coaxial Cable

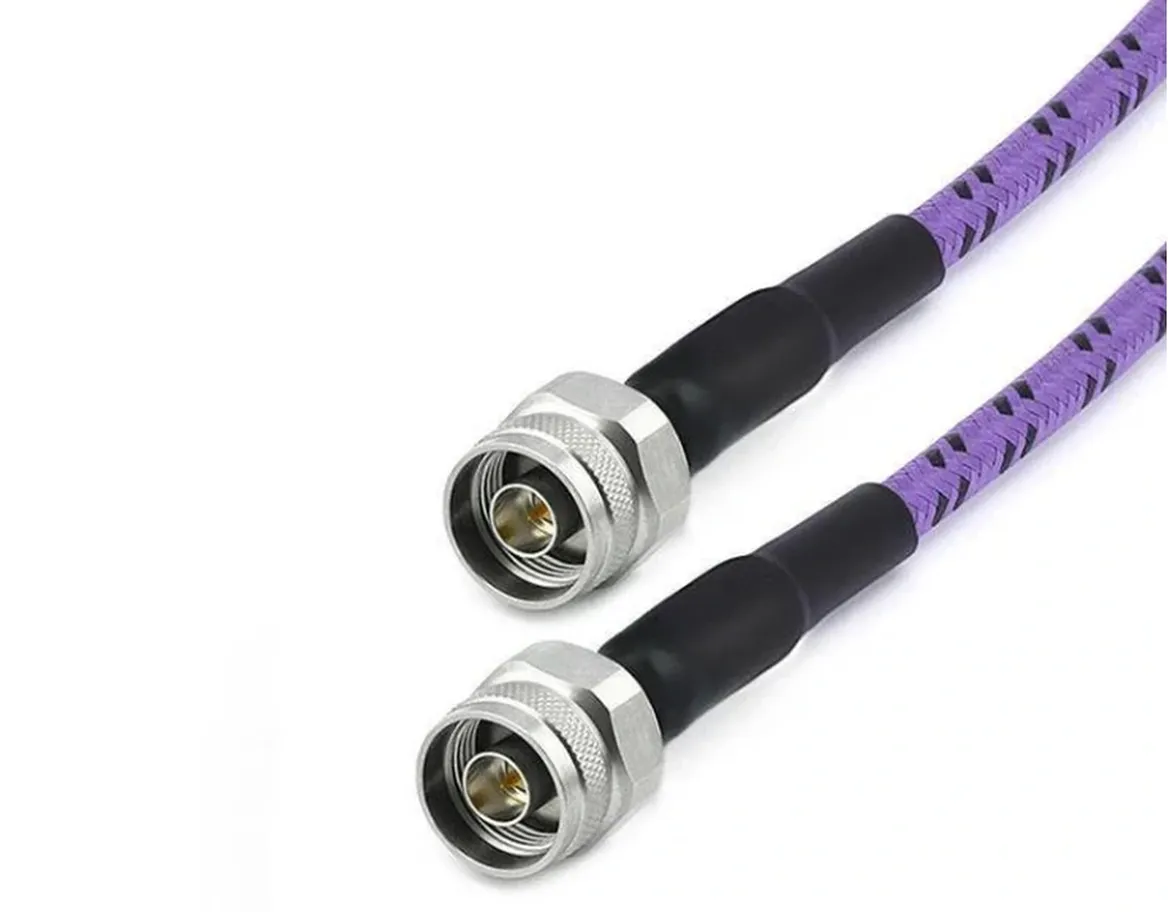

The N Male to N Male Phase-Stable Precision Test RF Cable Assembly — model PCAN-AP-NMNM-1M — is engineered for laboratory and field environments requiring highly stable phase performance, low-loss transmission, and repeatable measurement accuracy. It is manufactured using Mechanc’s CFT780MP coaxial cable, equipped with dedicated cable armor (reference CFT780MP-ARMOR), a phase-stable variation of the CFT780M phase-stable 18 GHz ultra-flexible precision test coaxial cable with FEP jacket. The assembly is terminated with two precision N male connectors (reference N-JCFT780MP-1). Operating up to 18 GHz, it delivers excellent phase stability, low insertion loss, a maximum VSWR of 1.25, and a robust 7.8 mm outer diameter for heavy-duty RF testing environments.

Stable Phase Behavior and Repeatable High-Frequency Performance

The PCAN-AP-NMNM-1M ensures consistent phase tracking and low reflection across its full operating bandwidth. Its precision-machined N male interfaces provide reliable mating stability, making this assembly ideal for power measurements, VNA calibration, antenna testing, RF verification benches, and rugged microwave laboratory setups.

For additional assemblies using this connector interface, explore N RF Cable Assemblies.

Rugged Low-Loss Coaxial Construction with Integrated Cable Armor

The CFT780MP coaxial cable incorporates a phase-stable design that minimizes phase drift during bending, vibration, or thermal changes. The inclusion of cable armor (CFT780MP-ARMOR) provides enhanced mechanical protection and ensures consistent electrical performance in demanding operating conditions. With its 7.8 mm diameter, the cable offers exceptional durability while maintaining the flexibility required for precision testing.

Reliable Interconnect for Broadband RF and Microwave Systems

As part of Mechanc’s Phase-Stable Precision Test RF Cable Assemblies – PC Series, the PCAN-AP-NMNM-1M is fully tested for insertion loss, VSWR, and phase stability to ensure long-term reliability. All assemblies comply with REACH and RoHS requirements, offering professional-grade performance for high-accuracy RF and microwave measurements.
