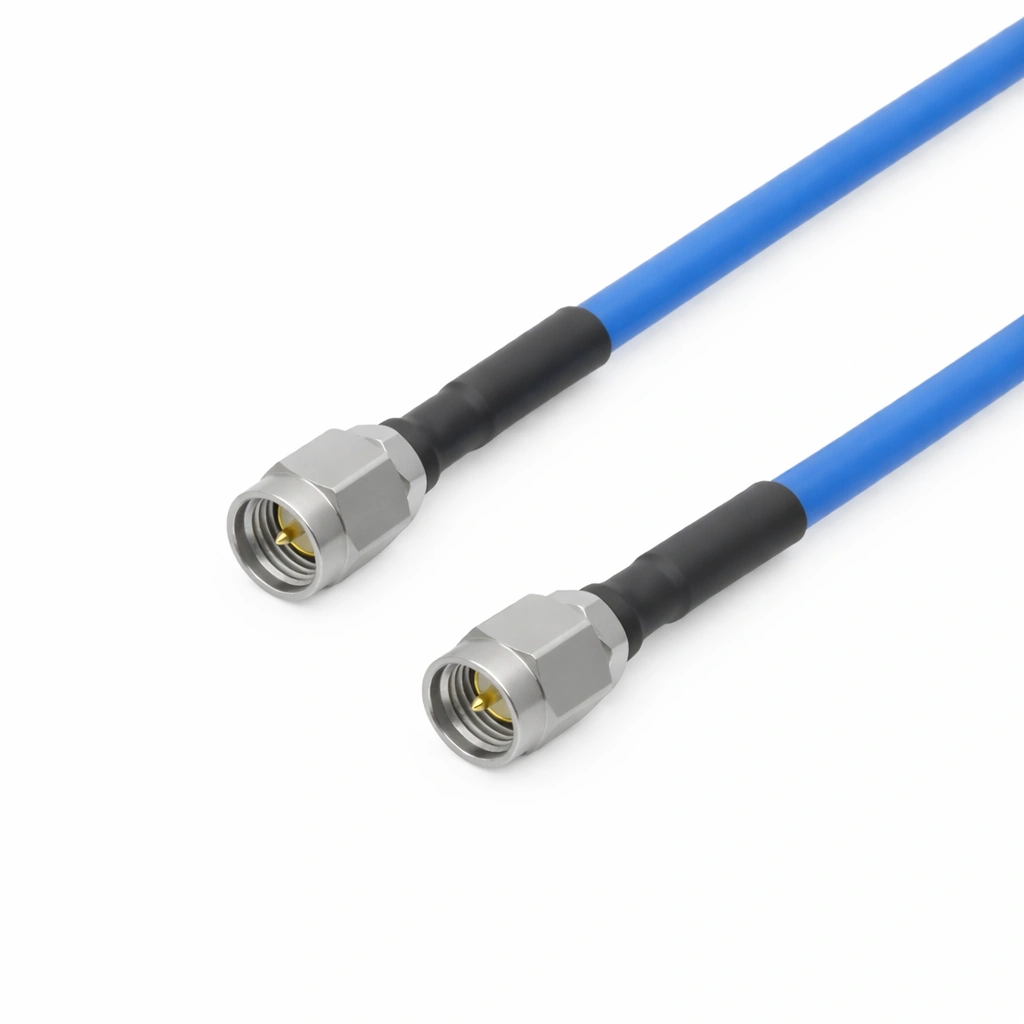

The SMA Male to SMA Male High-Performance RF Test & Measurement Cable Assembly — model TCC35-SMSM-1M — is engineered for stable, repeatable RF and microwave performance up to 26.5 GHz. This 1 meter assembly is constructed using Mechanc’s CFT240H26 coaxial cable, a precision phase-stable variant of the CFT240 Phase-Stable 67 GHz Precision Test Coaxial Cable. Terminated with high-accuracy SMA male connectors (reference SMA-JCFT240H26-1), this assembly provides dependable RF interfaces for SMA-based test systems.

Consistent Microwave Performance up to 26.5 GHz

Supporting a continuous operating range from DC to 26.5 GHz, the TCC35-SMSM-1M delivers the low-reflection, stable impedance necessary for accurate RF and microwave testing. The assembly achieves a 1.3 typical VSWR and a 2.93 dB typical insertion loss over its 1 meter length, enabling reliable VNA calibration, S-parameter characterization, and broadband signal-path verification for laboratory and production-level measurement environments.

Phase-Stable CFT240H26 Construction for Precision Measurements

The CFT240H26 coaxial cable is designed to maintain electrical integrity under bending, repositioning, or temperature variation. It provides ±7° mechanical phase stability and ±0.07 dB amplitude stability, ensuring consistent measurement results across repeated test cycles. With a compact 2.4 mm outer diameter, 24 mm minimum bend radius, 2,000-cycle bend life, and an 81% velocity of propagation, the assembly supports precise time-domain analysis and long-term mechanical reliability across a wide –55 °C to +165 °C operating range.

Precision SMA Interfaces for Repeatable RF Connections

Each end of the assembly features precision SMA-JCFT240H26-1 male connectors engineered for low reflection and tightly controlled mechanical tolerances. These connectors deliver consistent mating performance for VNAs, signal generators, spectrum analyzers, and automated microwave test systems. For additional SMA-based solutions, explore the complete SMA RF Cable Assemblies series.

Fully Qualified for High-Performance RF & Microwave Testing

Every TCC-series cable undergoes full qualification for VSWR, insertion loss, amplitude stability, and phase repeatability. The TCC35-SMSM-1M is manufactured to comply with strict REACH and RoHS standards and is designed for reliability in demanding RF and microwave laboratory environments.
