SMA Male to SMA Male System Interconnect Low-Loss RF Cable Assembly – Use CFS550H6 Coax

SMA Male to SMA Male Low-Loss RF Cable Assembly – Built with CFS550H6 Coaxial Cable

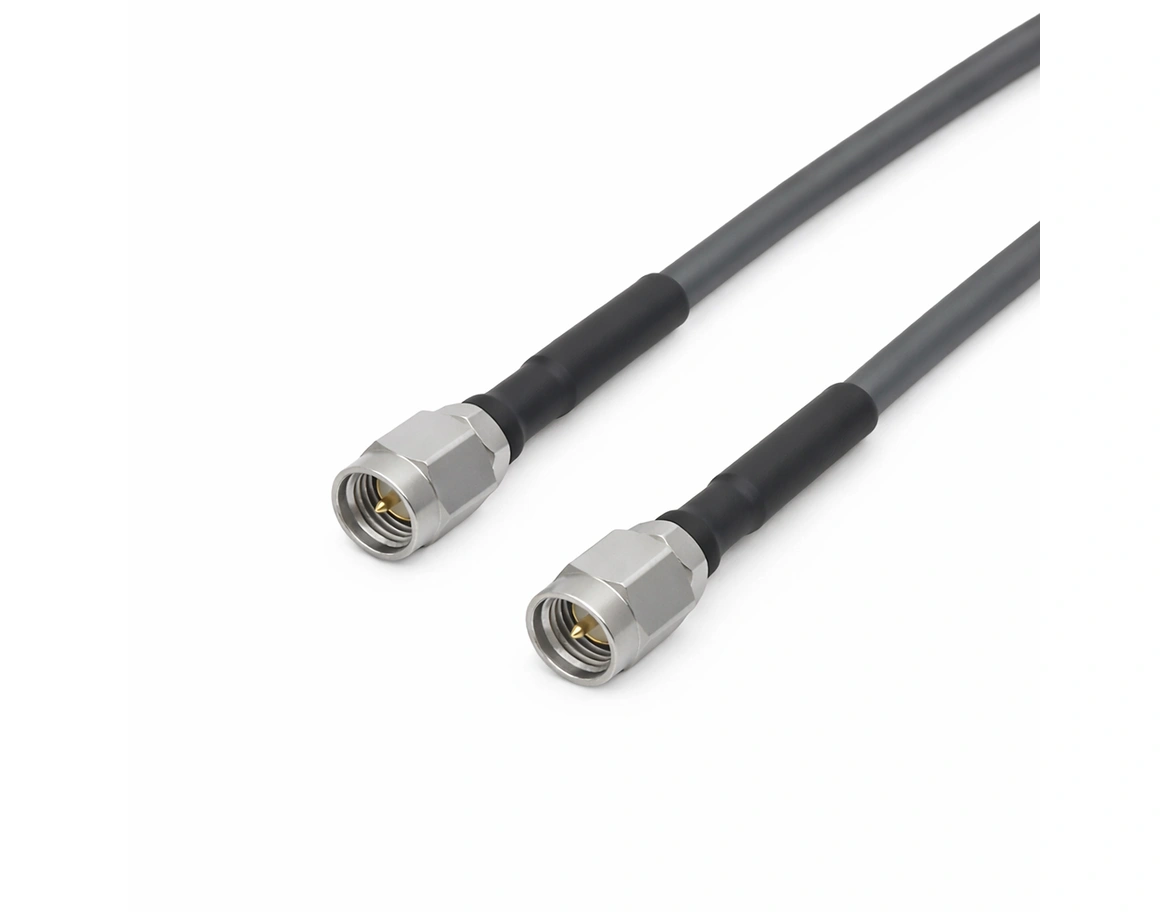

The SMA Male to SMA Male Low-Loss RF Cable Assembly — model IFCIS-SMSM-1M — is a precision interconnect solution designed for broadband, RF, and microwave test applications requiring superior electrical stability and mechanical reliability. It is manufactured using Mechanc’s CFS550H6 coaxial cable, a variation of the CFS550 ultra-low-loss 18 GHz precision test coaxial cable with PFA jacket, and terminated with two precision SMA male connectors (reference SMA-JCFS550H6-1). The assembly ensures consistent impedance control, low insertion loss, and excellent phase linearity across the full operating band.

Precision Broadband Signal Transmission

Optimized for RF and microwave measurement systems, the IFCIS-SMSM-1M provides phase-stable, low-attenuation signal performance for high-frequency testing environments. Its SMA male connectors deliver precise mechanical alignment and excellent return-loss control, making it ideal for VNA calibration, broadband signal verification, and RF component evaluation in laboratory and production setups.

Explore the complete range of SMA RF Cable Assemblies — developed for microwave and broadband test systems where low-loss transmission, high repeatability, and long-term electrical reliability are essential.

Low-Loss Coaxial Structure and Mechanical Strength

The CFS550H6 coaxial cable combines a low-dielectric-loss core and a robust PFA jacket that offers outstanding flexibility, temperature resistance, and environmental protection. This construction ensures low insertion loss, stable phase performance, and mechanical endurance through thousands of connection cycles, even under demanding laboratory conditions.

Reliable Interconnect for High-Frequency Testing

Part of Mechanc’s System Interconnect RF Cable Assemblies – IFC Series, the IFCIS-SMSM-1M delivers precise, low-loss signal transmission and long-term durability for professional RF and microwave measurement systems. Each assembly is fully tested for insertion loss and VSWR compliance and certified under REACH and RoHS standards for sustainable, high-reliability performance.
