1.0mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.23mm Pin Diameter

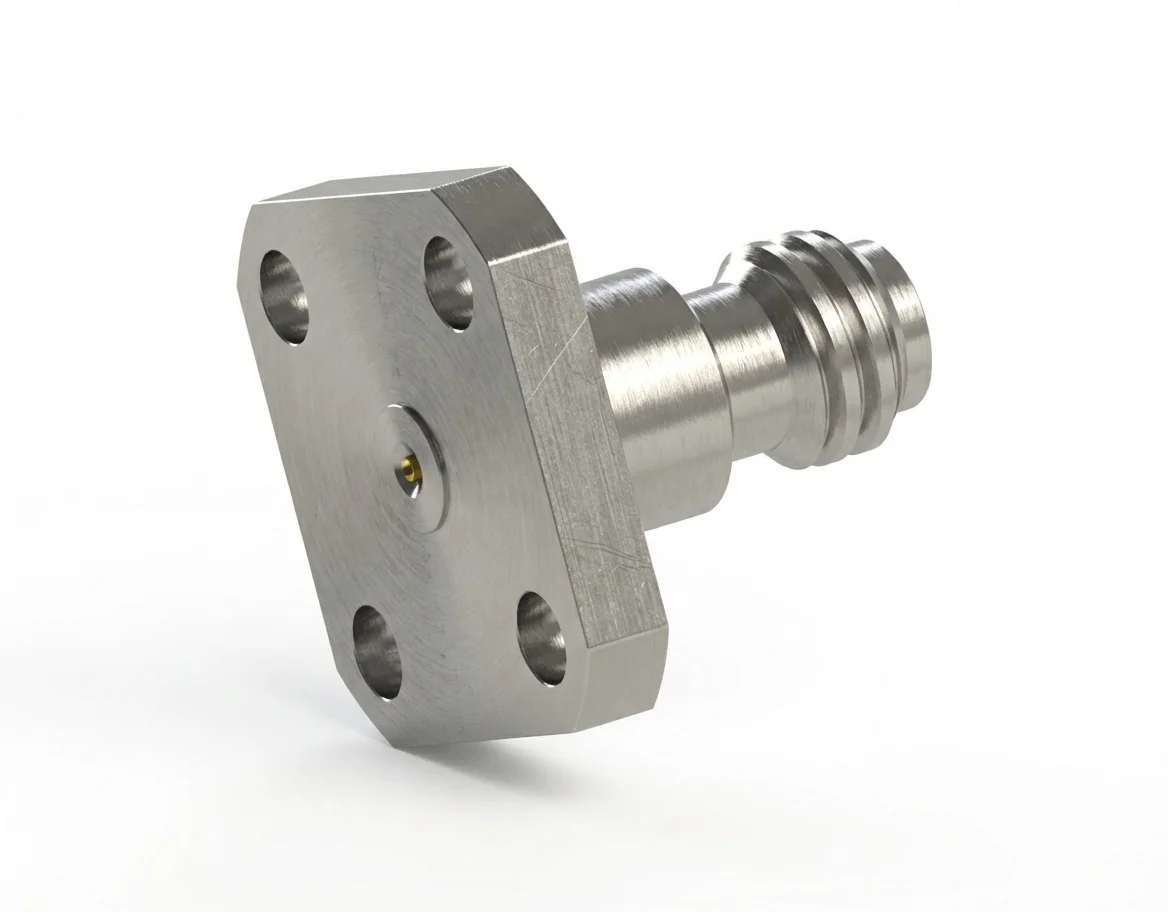

1.0mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, Model 1.0-KFD1

The 1.0mm female 4-hole flange mount RF connector with 6.35 mm hole spacing and a 0.23 mm pin diameter ensures exceptional precision for ultra-high-frequency measurements up to 110 GHz. Designed for 50 Ω impedance, the 1.0-KFD1 provides stable, low-loss signal transmission in millimeter-wave instrumentation and calibration assemblies. Discover the full range of RF connectors for precision testing applications.

Precision Frequency Performance

The 1.0-KFD1 RF connector achieves VSWR ≤ 1.25 and insertion loss ≤ 0.06 √F(GHz) dB, ensuring minimal return loss and outstanding repeatability across the complete operating band. Its female 1.0 mm interface delivers superior phase consistency and signal integrity for analyzers, calibration kits, and frequency-extension modules. For more models, visit our collection of 1.0mm connectors.

Construction and Contact Reliability

Engineered from passivated stainless steel with gold-plated beryllium copper contacts, the 1.0-KFD1 connector maintains reliable electrical contact through repeated connection cycles. The precision-machined interface guarantees concentric alignment and low contact resistance, providing stable results during long-term use. Each connector is fully RoHS and REACH compliant, ensuring both performance and environmental responsibility. Learn more about our field-replaceable connectors.

Flange Design and Mechanical Strength

The 4-hole flange mount design of the 1.0-KFD1 allows secure panel installation and precise alignment in compact test modules and analyzer ports. Its 6.35 mm hole pattern enhances mechanical rigidity while preserving electrical continuity under vibration and torque stress, ensuring excellent connector stability even under frequent reconnections.

Applications and Custom Engineering

The 1.0-KFD1 4-hole flange RF connector is widely used in network analyzers, frequency-extension systems, and metrology-grade calibration tools. Custom variations are available, including modified flange geometry, alternative plating finishes, and specialized mounting configurations to suit specific laboratory and production requirements. Contact Mechanc for tailored RF connector solutions.

For the corresponding male interface, see the mirror part: 1.0mm Male 4-Hole Flange RF Connector – 0.23 mm Pin Diameter, Model 1.0-JFD1.
