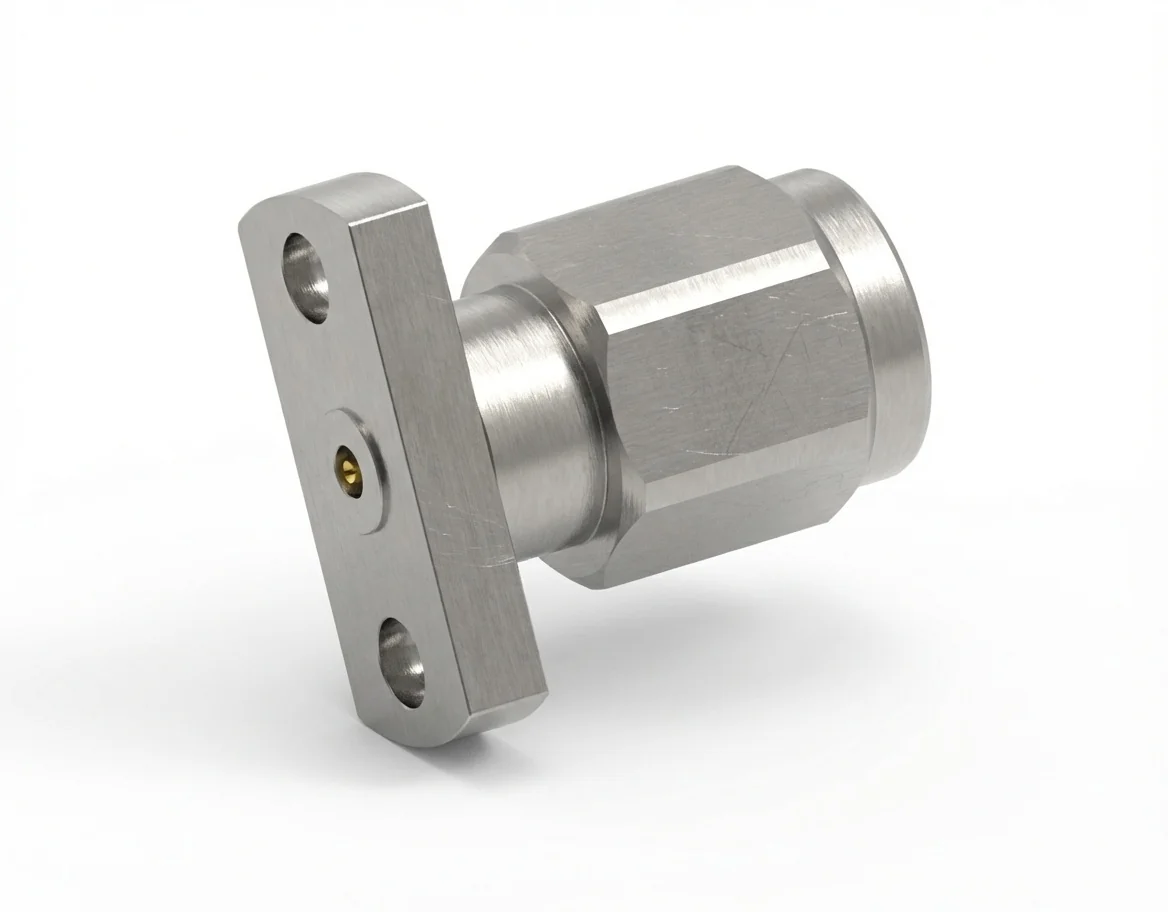

The 1.0mm male 2-hole flange mount RF connector with 7.1 mm hole spacing and a 0.23 mm pin diameter provides exceptional signal precision and long-term stability in compact, high-frequency systems. Designed for 50 Ω impedance and performance up to 110 GHz, the 1.0-JFD2 is ideal for calibration assemblies, analyzer ports, and precision measurement modules. View the complete RF connector range from Mechanc.

Performance at Millimeter-Wave Frequencies

The 1.0-JFD2 RF connector maintains VSWR ≤ 1.25 and insertion loss ≤ 0.06 √F(GHz) dB across the entire operating range, providing stable impedance matching and minimal phase variation. Its precisely machined male 1.0 mm interface ensures repeatable contact alignment for reliable data integrity in metrology and W-band instrumentation. Learn more about Mechanc’s 1.0mm connectors.

Mechanical Construction and Finish

Manufactured from passivated stainless steel with gold-plated beryllium copper contacts, the 1.0-JFD2 connector combines mechanical robustness with optimal electrical conductivity. Surface treatments and tolerance control ensure stable RF performance through repeated connect–disconnect cycles. All materials comply with RoHS and REACH regulations. See more of our field-replaceable connectors for high-frequency systems.

Compact Two-Hole Mounting Design

The 2-hole flange mount design allows efficient use of panel space while providing excellent torque resistance and mounting stability. The 7.1 mm hole pattern supports secure installation in portable or space-constrained assemblies, maintaining precise reference plane control in demanding laboratory environments.

Use Cases and Custom Engineering

The 1.0-JFD2 2-hole flange mount RF connector is suited to modular test platforms, frequency-extension devices, and compact network analyzers. Mechanc provides customizable options including flange thickness variations, mounting-hole adjustments, and alternative plating finishes to meet unique mechanical or electrical requirements.

For the corresponding female interface, see the mirror part: 1.0mm Female 2-Hole Flange RF Connector – 0.23 mm Pin Diameter, Model 1.0-KFD2.
