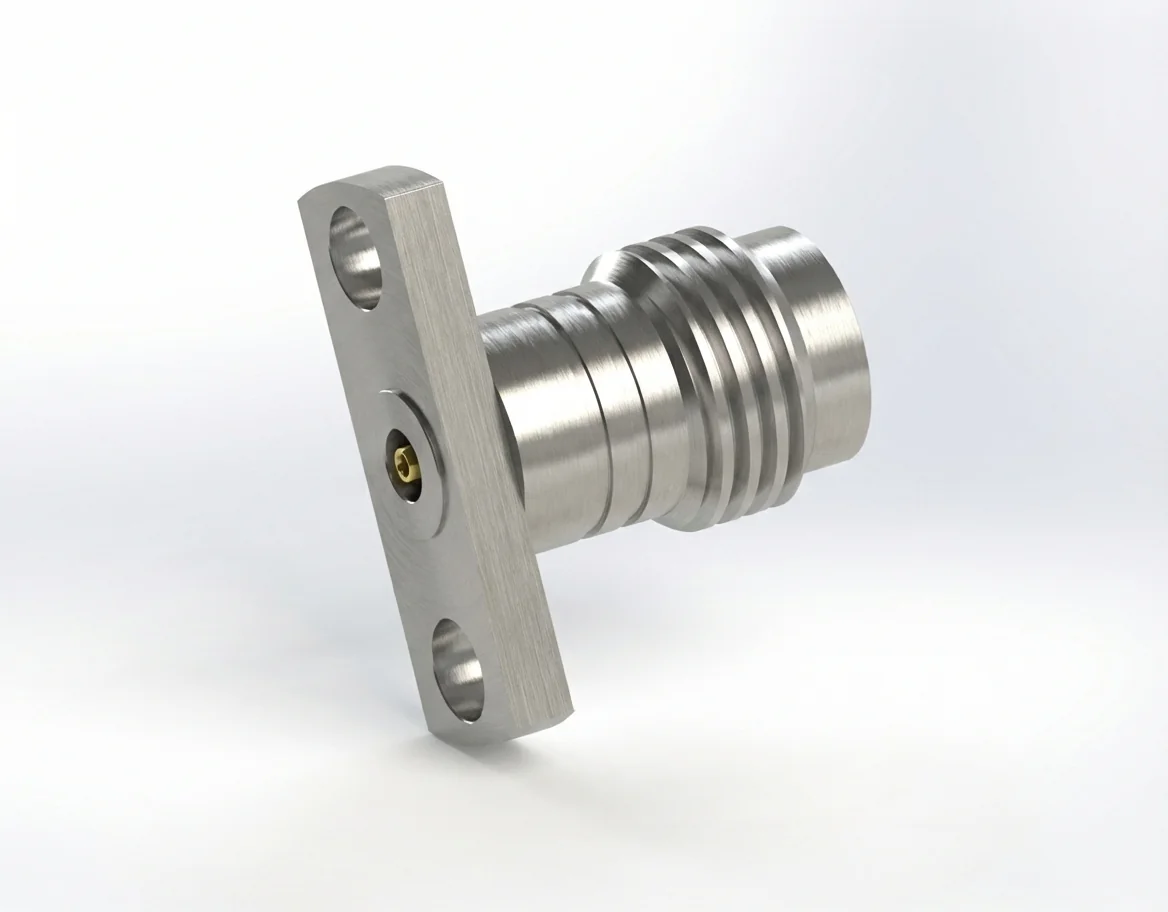

1.85mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.30mm Pin Diameter

1.85mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, Model 1.85-KFD10

The 1.85 mm female 2-hole flange mount RF connector with 10.2 mm hole spacing and a 0.30 mm pin diameter provides high-frequency accuracy and mechanical robustness for advanced microwave and millimeter-wave applications. Designed for 50 Ω impedance and operation up to 67 GHz, the 1.85-KFD10 ensures consistent, low-loss electrical performance. Discover Mechanc’s complete RF connector selection.

Electrical Precision and Bandwidth Control

The 1.85-KFD10 RF connector achieves VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, maintaining precise impedance matching and phase linearity throughout its full operating frequency range. The 1.85 mm female interface minimizes reflection and provides repeatable performance in calibration standards and high-frequency analyzers. Learn more about our 1.85 mm connectors.

Mechanical Stability and Mounting Design

The 2-hole flange mount configuration with 10.2 mm spacing enables compact installation and stable integration into measurement instruments and test modules. Its symmetrical layout provides excellent torque balance, ensuring reliable reference-plane alignment even under mechanical vibration or repeated connection cycles.

Material Quality and Contact Endurance

Built from passivated stainless steel and featuring a gold-plated beryllium-copper contact, the 1.85-KFD10 connector delivers optimal conductivity and long-term resistance to wear and corrosion. Precision machining ensures coaxial accuracy and low intermodulation. Every component is fully RoHS and REACH compliant. Browse related field-replaceable connectors.

Applications and Customization Possibilities

The 1.85-KFD10 2-hole flange mount RF connector is ideal for millimeter-wave analyzers, calibration systems, and precision measurement devices requiring reliable high-frequency coupling. Mechanc provides custom engineering options including flange redesigns, alternate plating finishes, and non-magnetic materials for specialized environments.

For the corresponding male interface, see the mirror part: 1.85 mm Male 2-Hole Flange RF Connector – 0.30 mm Pin Diameter, Model 1.85-JFD10.
