2.4mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.23mm Pin Diameter

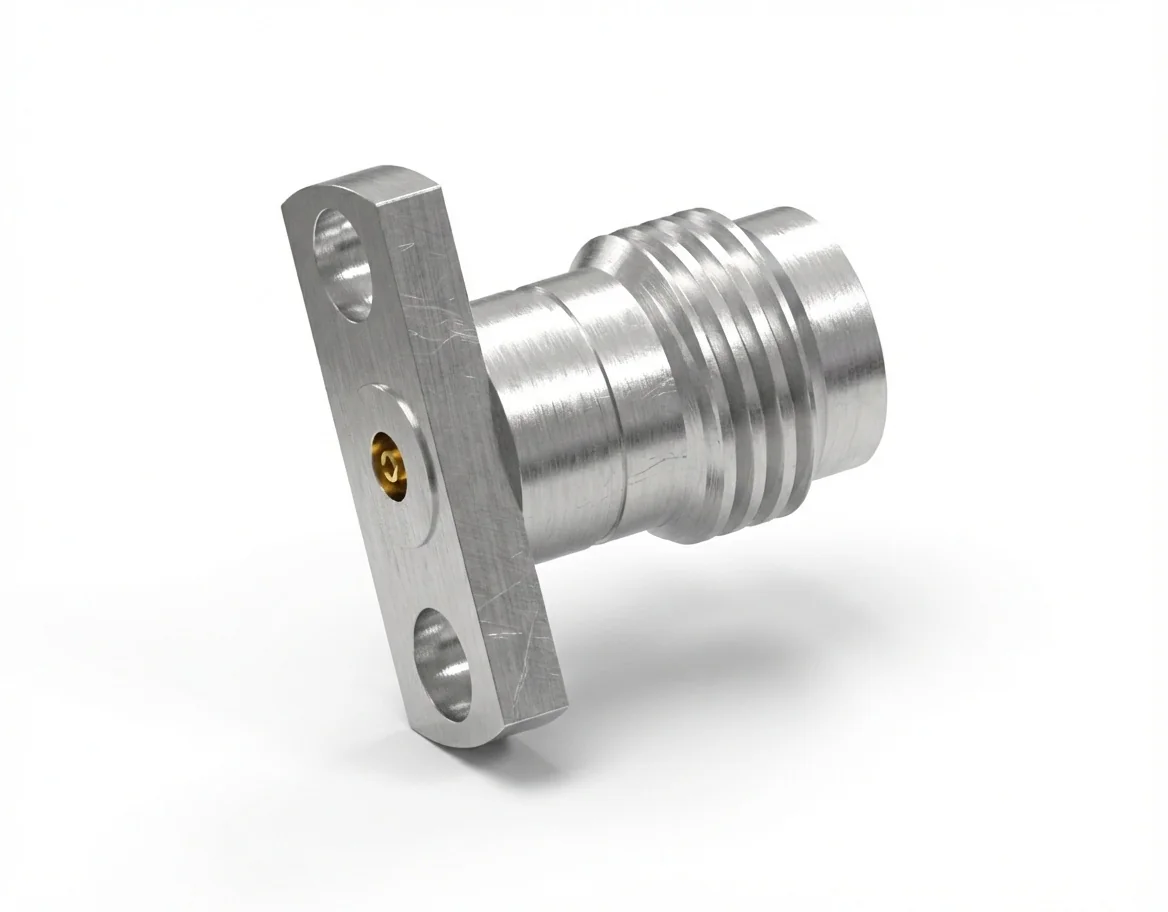

2.4mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD26

The 2.4mm female 2-hole flange mount RF connector with a 0.23 mm pin and 9.0 mm hole spacing is purpose-built for compact precision assemblies. Designed for 50 Ω impedance and operating up to 50 GHz, this field-replaceable connector provides exceptional stability and electrical repeatability for fine calibration and measurement systems.

Precision Electrical Performance

Offering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4mm female 2-hole flange mount RF connector ensures ultra-low reflection and consistent impedance control. The fine 0.23 mm pin enables precise signal alignment in micro-scale measurement setups.

Material Integrity and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.4mm female flange connector delivers superior corrosion resistance and stable contact performance. Fully REACH and RoHS compliant, it guarantees long-term environmental and material safety while operating between −55 °C and +165 °C.

Compact Mounting Applications

The reduced 9.0 mm flange spacing supports installation within 2-hole flange mount RF connectors used in ultra-compact analyzers, test heads, and calibration modules.

Custom Micro-Scale Engineering

Mechanc designs 2.4 mm RF connectors for precision RF testing, offering flexible geometry and material options. Visit the RF Connector Catalog to explore compatible field-replaceable solutions. Pair with the 2.4mm male 2-hole flange mount RF connector – Model 2.4-JFD26 for seamless electrical integration and precision impedance matching.
