2.4mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.51mm Pin Diameter

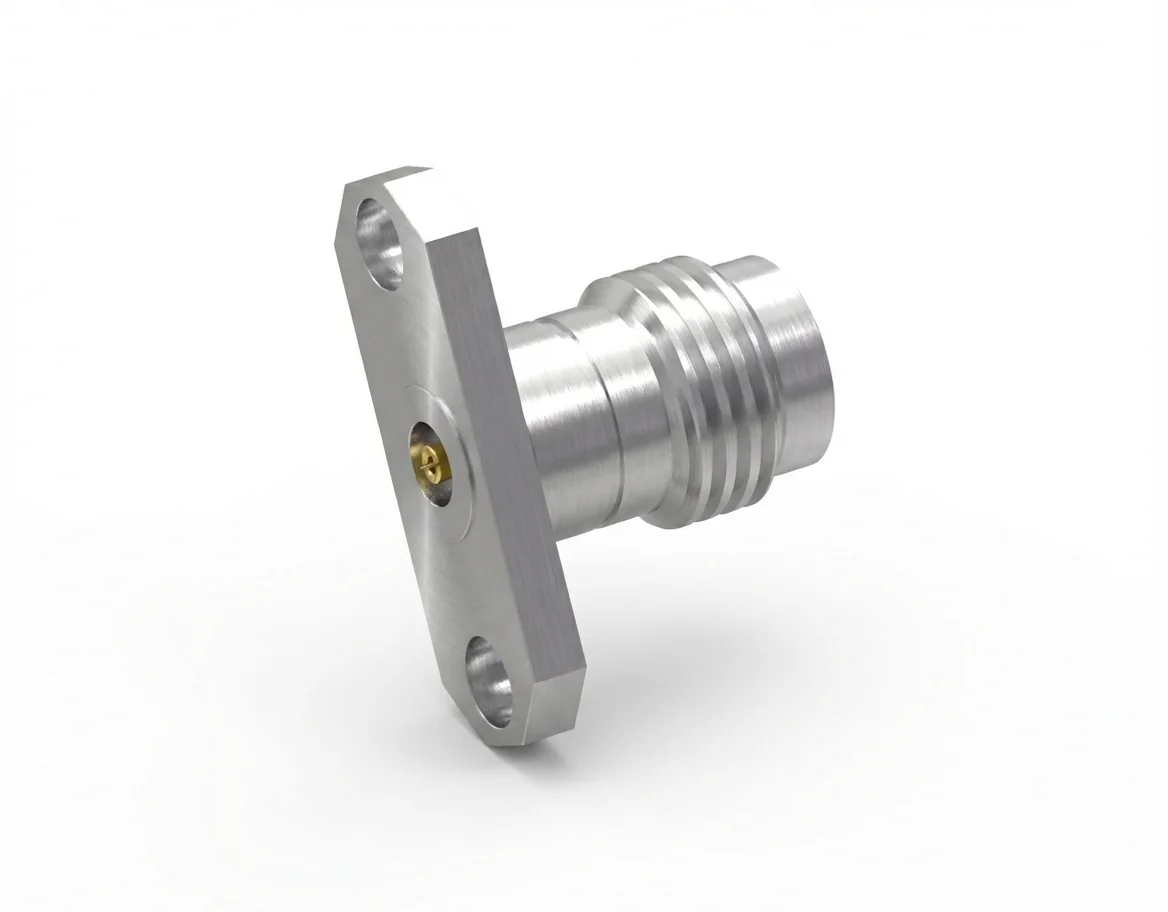

2.4mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD20

The 2.4mm female 2-hole flange mount RF connector with a 0.51 mm pin and 12.22 mm hole spacing is designed for high-load RF test setups that demand strength, precision, and low insertion loss. Operating from DC to 50 GHz at 50 Ω, this field-replaceable connector ensures reliable performance in demanding laboratory and industrial environments.

Optimized for Signal Stability

The 2.4mm female 2-hole flange mount RF connector achieves VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, minimizing reflection and maintaining impedance accuracy even during extended use. The 0.51 mm pin diameter enhances durability under high-power signal transfer conditions.

Material Performance and Compliance

Made from stainless steel with gold-plated beryllium-copper contacts, the 2.4mm female flange connector ensures long-term conductivity, corrosion protection, and stable mechanical strength. Fully REACH and RoHS compliant, it adheres to international environmental standards and remains dependable from −55 °C to +165 °C.

Applications in High-Power RF Modules

The 12.22 mm two-hole flange format simplifies integration into 2-hole flange mount RF assemblies used in defense testing racks, power amplifier verification systems, and microwave signal distribution networks.

Custom-Engineered RF Solutions

Mechanc offers a wide range of 2.4 mm RF connectors adapted to specific flange geometries, plating finishes, and mechanical requirements. Discover our RF Connector Catalog for precision components that match your testing and production needs. Pair with the 2.4mm male 2-hole flange mount RF connector – Model 2.4-JFD20 to ensure full electrical compatibility and optimized high-frequency performance.
