2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.23mm Pin Diameter

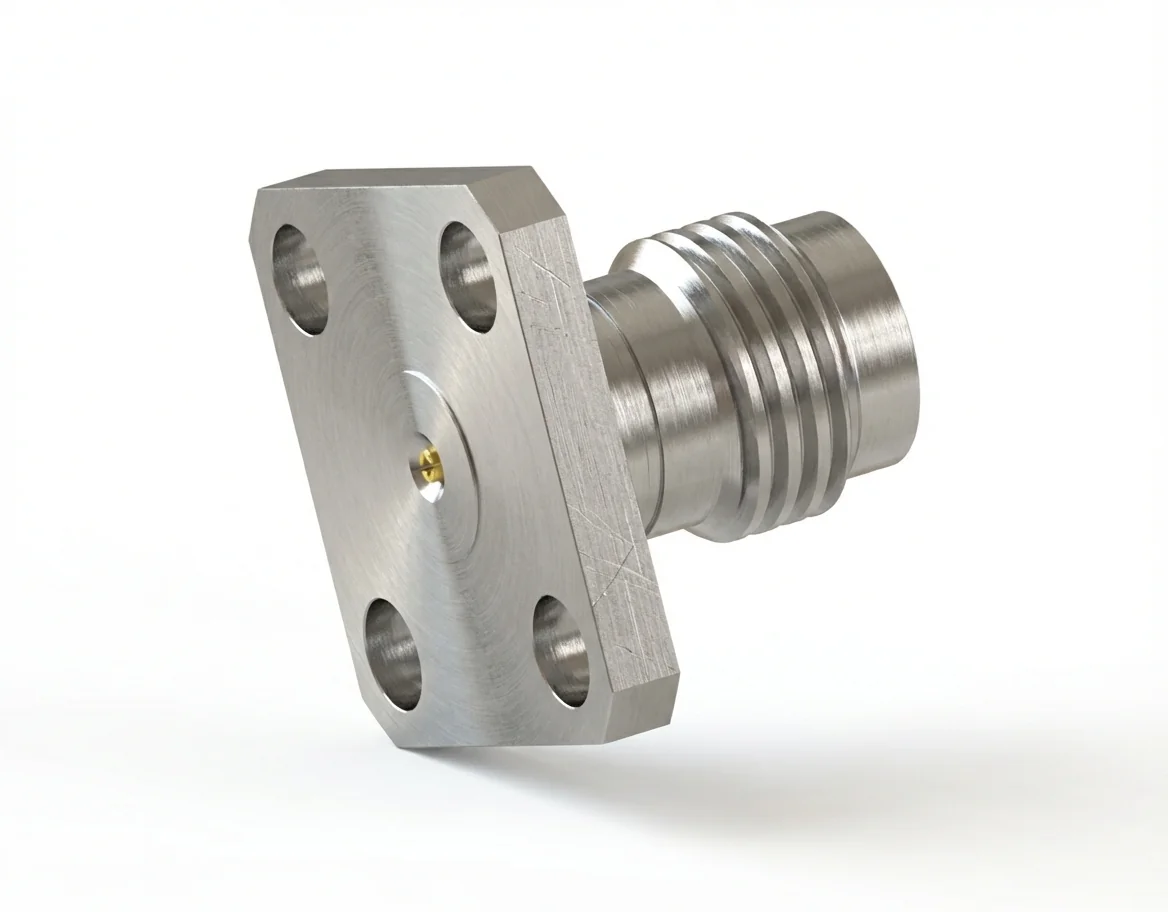

2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, Model 2.4-KFD1

The 2.4 mm female 4-hole flange mount RF connector with 8.64 mm hole spacing and a 0.23 mm pin diameter delivers reliable, low-loss performance across a wide microwave frequency range. Designed for 50 Ω impedance and operation up to 50 GHz, the 2.4-KFD1 ensures precise signal integrity and mechanical repeatability for laboratory and production test systems. Discover Mechanc’s full range of RF connectors.

Electrical Performance and High-Frequency Capability

The 2.4-KFD1 connector offers VSWR ≤ 1.18 and insertion loss ≤ 0.06 √F(GHz) dB, providing excellent impedance matching and minimal reflection from DC to 50 GHz. Its precision 2.4 mm interface supports repeatable mating cycles with minimal phase deviation, making it ideal for high-frequency analyzers, calibration modules, and precision test ports. Explore related 2.4 mm RF connectors.

Flange Design and Mechanical Precision

The 4-hole flange mount design ensures secure attachment and precise reference-plane alignment. With its 8.64 mm flange spacing, the 2.4-KFD1 provides structural rigidity and low vibration sensitivity, ensuring stable performance under repeated torque and environmental variations.

Material Composition and Contact Integrity

Manufactured from passivated stainless steel with a gold-plated beryllium-copper contact, the 2.4-KFD1 female connector offers high durability, excellent conductivity, and corrosion resistance. Tight machining tolerances guarantee coaxial accuracy, low intermodulation, and full RoHS and REACH compliance. View other field-replaceable connectors engineered by Mechanc.

Applications and Engineering Customization

The 2.4-KFD1 4-hole flange mount RF connector is suited for precision instrumentation, metrology equipment, and high-frequency laboratory setups where phase stability and repeatable mechanical coupling are critical. Mechanc provides tailored engineering options such as custom flange geometry, special platings, and low-magnetic materials for demanding RF and aerospace environments.

For the matching male version, see the mirror part: 2.4 mm Male 4-Hole Flange RF Connector – 0.23 mm Pin Diameter, Model 2.4-JFD1.
