2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.38mm Pin Diameter

2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, Model 2.4-KFD3

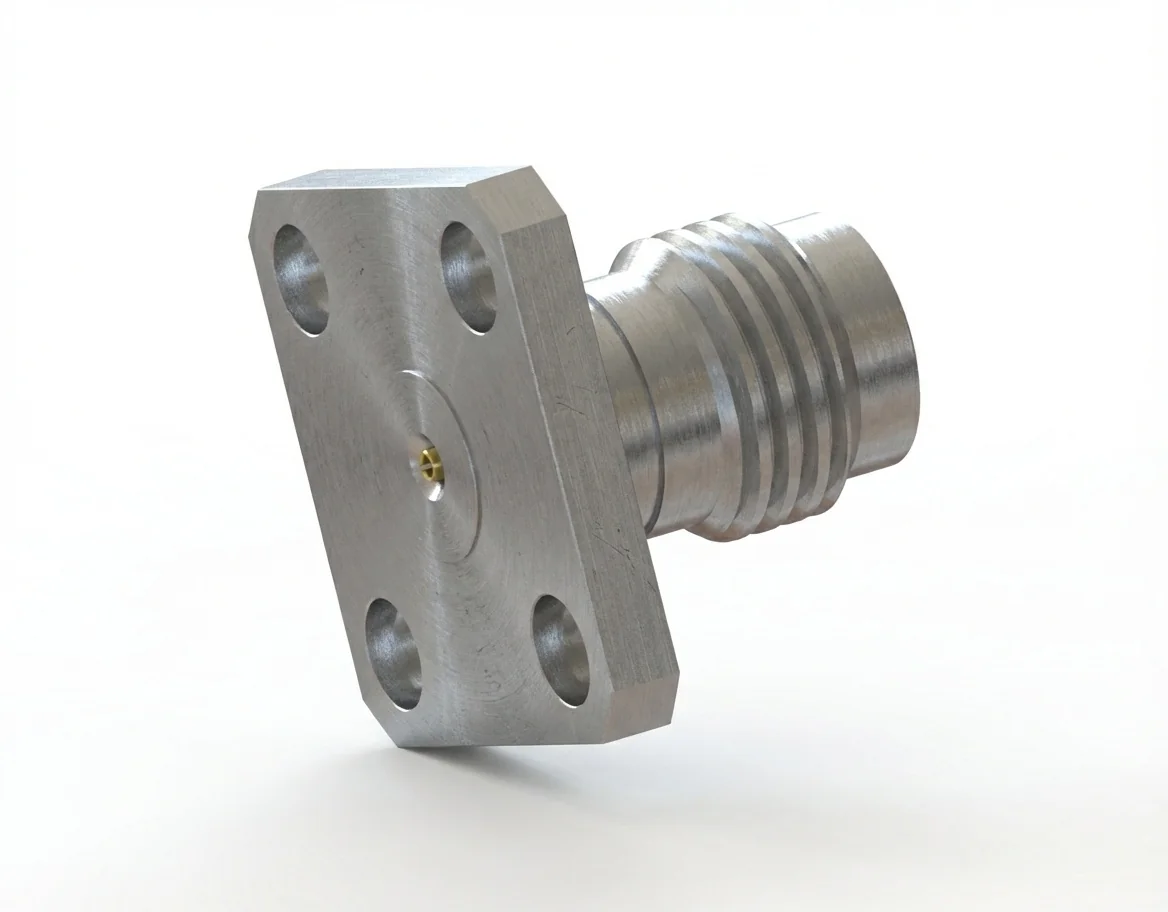

The 2.4 mm female 4-hole flange mount RF connector with 8.64 mm hole spacing and a 0.38 mm pin diameter provides robust mechanical stability and excellent electrical performance up to 50 GHz. With a characteristic impedance of 50 Ω, the 2.4-KFD3 ensures reliable, low-loss signal transmission for precision instrumentation and broadband microwave assemblies. Explore additional RF connectors from Mechanc.

Electrical Precision and Frequency Range

The 2.4-KFD3 RF connector achieves VSWR ≤ 1.18 and insertion loss ≤ 0.06 √F(GHz) dB, offering tight impedance control and exceptional return loss across the DC–50 GHz spectrum. Its refined 2.4 mm interface guarantees consistent performance in phase-critical systems such as calibration kits and vector network analyzers. View the complete 2.4 mm connector range.

Flange Design and Mounting Accuracy

The 4-hole flange mount layout provides secure fastening and accurate reference-plane alignment. With 8.64 mm mounting spacing, the connector maintains vibration resistance and repeatable torque response, ideal for high-stability test environments and fixed panel installations.

Materials and Structural Integrity

Constructed from passivated stainless steel with a gold-plated beryllium-copper center contact, the 2.4-KFD3 connector delivers high mechanical strength and conductivity. Each unit is engineered to resist corrosion and fatigue while fully meeting RoHS and REACH environmental standards. Browse other field-replaceable connectors for precision test setups.

Applications and Custom Engineering

The 2.4-KFD3 4-hole flange mount RF connector is suited for metrology instruments, mm-wave modules, and precision coaxial test ports where stability and repeatability are essential. Mechanc supports tailored configurations, alternate flange patterns, and special alloy finishes to meet unique RF and environmental specifications.

For the corresponding male version, see the mirror part: 2.4 mm Male 4-Hole Flange RF Connector – 0.38 mm Pin Diameter, Model 2.4-JFD3.
