2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.38mm Pin Diameter

2.4mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD8

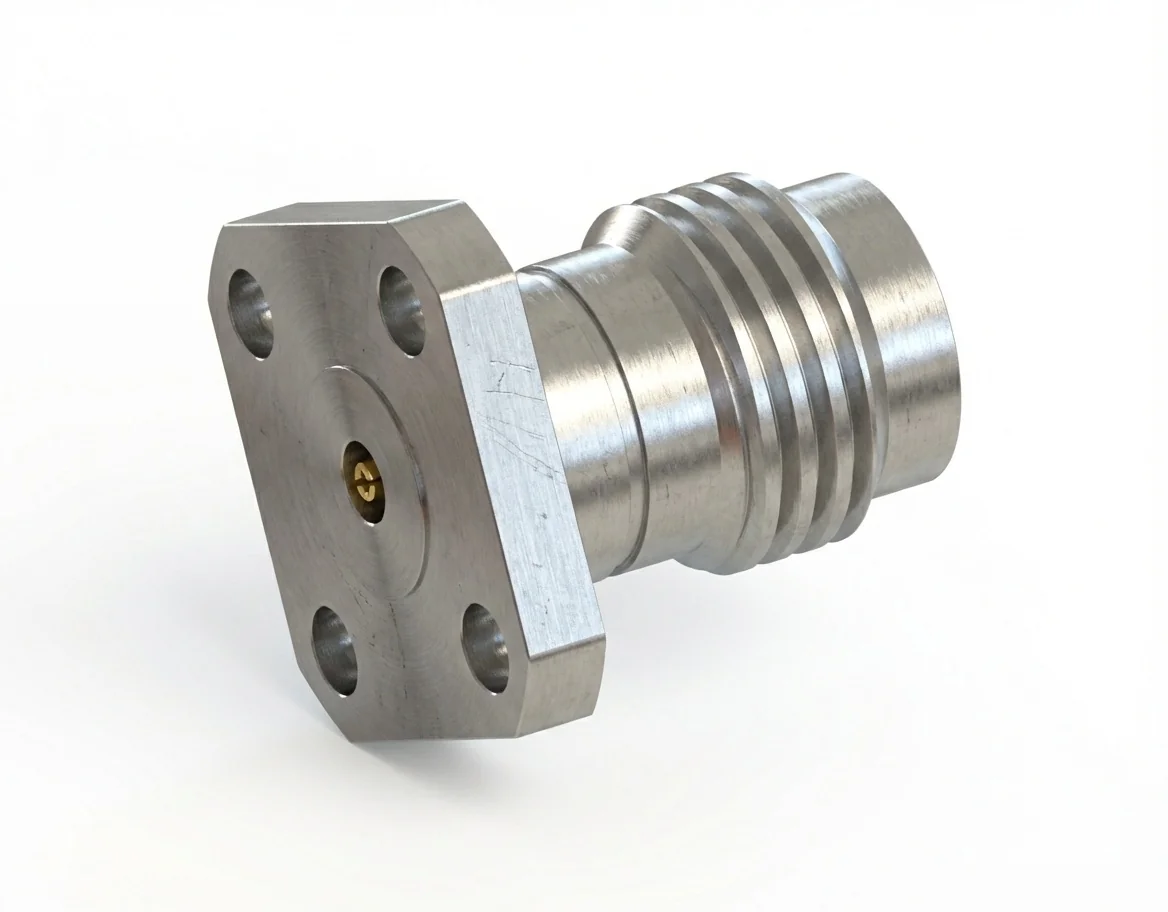

The 2.4mm female 4-hole flange mount RF connector with a 0.38 mm pin diameter and 6.35 mm hole spacing provides an optimal combination of durability and electrical precision. Designed for 50 Ω systems operating from DC to 50 GHz, this field-replaceable connector is ideal for compact measurement devices and multi-port test setups requiring repeatable performance.

Balanced Electrical and Mechanical Design

The 2.4mm female 4-hole flange mount RF connector achieves VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, ensuring low reflection and consistent impedance matching. The 0.38 mm pin provides robust mechanical strength while maintaining precise signal alignment for broadband testing applications.

Material Composition, Reliability, and Compliance

Crafted from stainless steel and beryllium copper with gold-plated contacts, the 2.4mm female flange connector offers long-term conductivity, corrosion resistance, and mechanical stability across thousands of mating cycles. Fully REACH and RoHS compliant, it adheres to international environmental and material safety standards while maintaining reliable operation between −55 °C and +165 °C.

Applications in Compact Test Assemblies

The reduced 6.35 mm flange spacing supports mounting within 4-hole flange mount RF modules where limited surface area and mechanical rigidity are critical. This configuration is widely used in portable analyzers and high-density instrumentation racks.

Precision Manufacturing Options

Mechanc offers customized 2.4 mm RF connectors with alternate pin geometries and flange formats for integration into precision RF assemblies. Explore our RF Connector Catalog to find related models and compatible components. Pair with the 2.4mm male 4-hole flange mount RF connector – Model 2.4-JFD8 for high-frequency symmetry and superior return loss performance.
