2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.3mm Pin Diameter

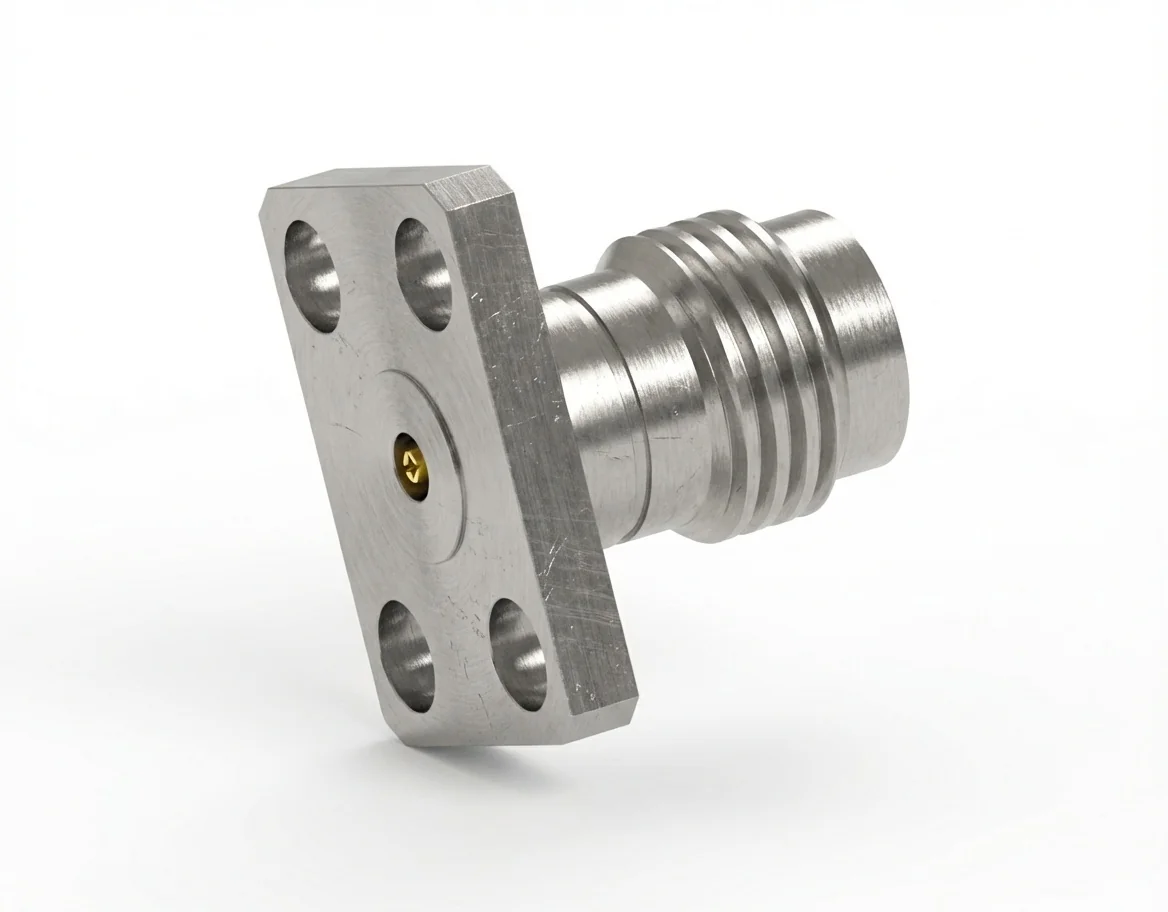

2.4mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD12

The 2.4 mm female 4-hole flange mount RF connector with a 0.30 mm pin and 5.64 mm hole spacing is engineered for high-density RF systems where precision and compact mounting are critical. Supporting a 50 Ω impedance and a frequency range up to 50 GHz, this field-replaceable connector ensures low-loss, phase-stable performance across demanding laboratory and communication applications.

Balanced Electrical Performance

Offering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm female 4-hole flange mount RF connector maintains high signal fidelity even in compact assemblies. The 0.30 mm pin diameter delivers an optimal balance between mechanical robustness and alignment precision for broadband testing.

Material Quality and Reliability

Manufactured from stainless steel and beryllium copper with gold-plated contacts, the 2.4 mm female flange connector withstands continuous operation from −55 °C to +165 °C. Fully REACH and RoHS compliant, it provides long-term corrosion resistance and maintains consistent contact performance throughout extended service life.

Applications in Compact RF Platforms

The 5.64 mm mounting geometry enables secure integration within micro-analyzers, calibration systems, and precision RF enclosures. The configuration matches 4-hole flange mount RF connectors used in densely packed test assemblies requiring repeatable coupling.

Precision Customization Services

Mechanc delivers tailored 2.4 mm RF connectors to meet specific mechanical layouts, pin tolerances, and flange dimensions. Browse our RF Connector Catalog for compatible field-replaceable and high-frequency components designed for long-term stability and integration flexibility. Pair with the 2.4mm male 4-hole flange mount RF connector – Model 2.4-JFD12 for fully matched impedance and stable high-frequency performance.

“`
