2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.46mm Pin Diameter

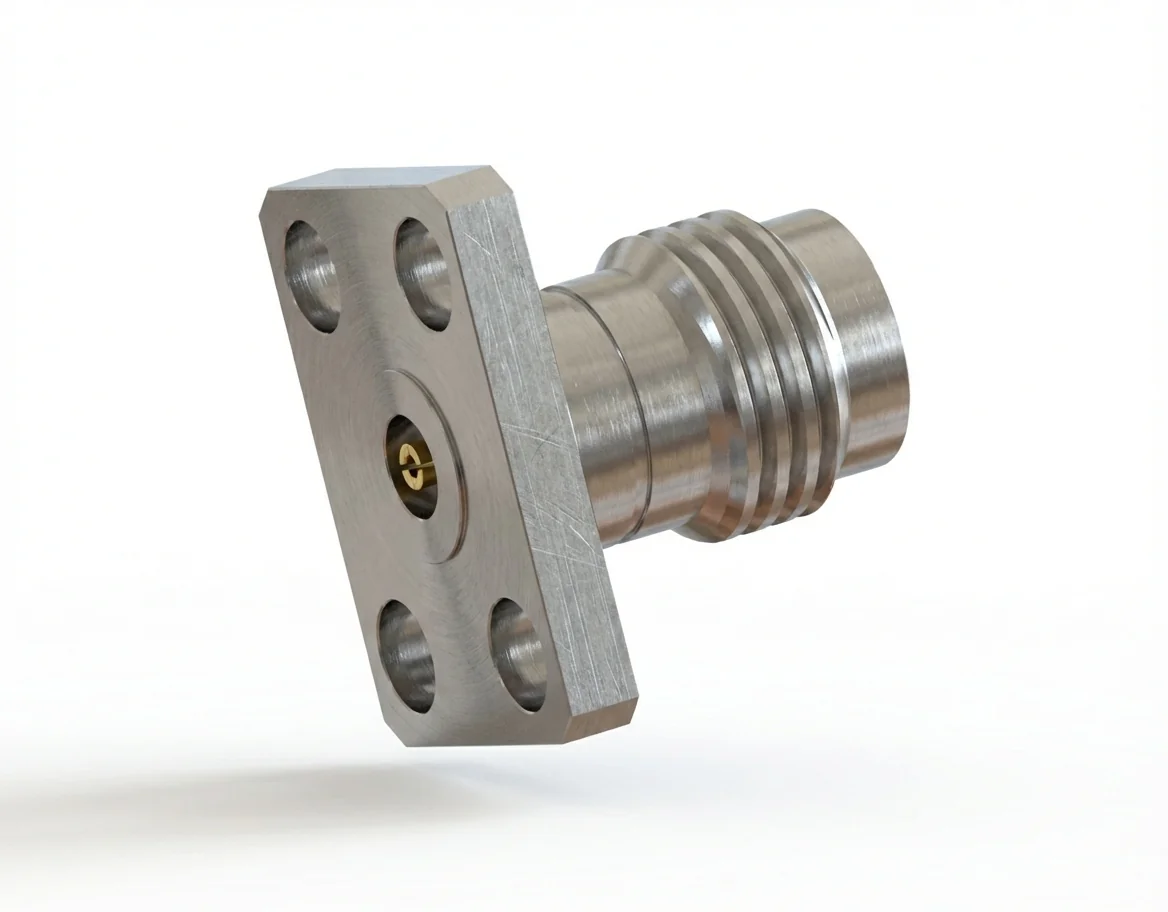

2.4mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD14

The 2.4 mm female 4-hole flange mount RF connector with a 0.46 mm pin and 5.64 mm hole spacing ensures robust electrical and mechanical performance for mid-power test applications. Designed for 50 Ω operation from DC to 50 GHz, this field-replaceable connector is a proven choice for precision test assemblies and analyzer platforms.

Optimized Electrical Control

Delivering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm female 4-hole flange mount RF connector achieves consistent return-loss performance. The 0.46 mm pin diameter enhances power handling and repeatability in continuous-use measurement environments.

Durable Construction and Compliance

The 2.4 mm female flange connector combines stainless steel housing and gold-plated beryllium-copper contacts for longevity and conductivity. Each unit is REACH and RoHS compliant and maintains stable electrical properties between −55 °C and +165 °C.

Typical Applications

The 5.64 mm flange spacing simplifies integration within 4-hole flange mount RF connector systems used in calibration devices, high-frequency amplifiers, and vector-network analyzers.

Engineering Flexibility

Mechanc offers customized 2.4 mm RF connectors with alternative flange sizes and plating finishes. Review the RF Connector Catalog for compatible accessories and specialized precision series models. Pair with the 2.4mm male 4-hole flange mount RF connector – Model 2.4-JFD14 for high-power consistency and broadband impedance matching.
