2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.46mm Pin Diameter

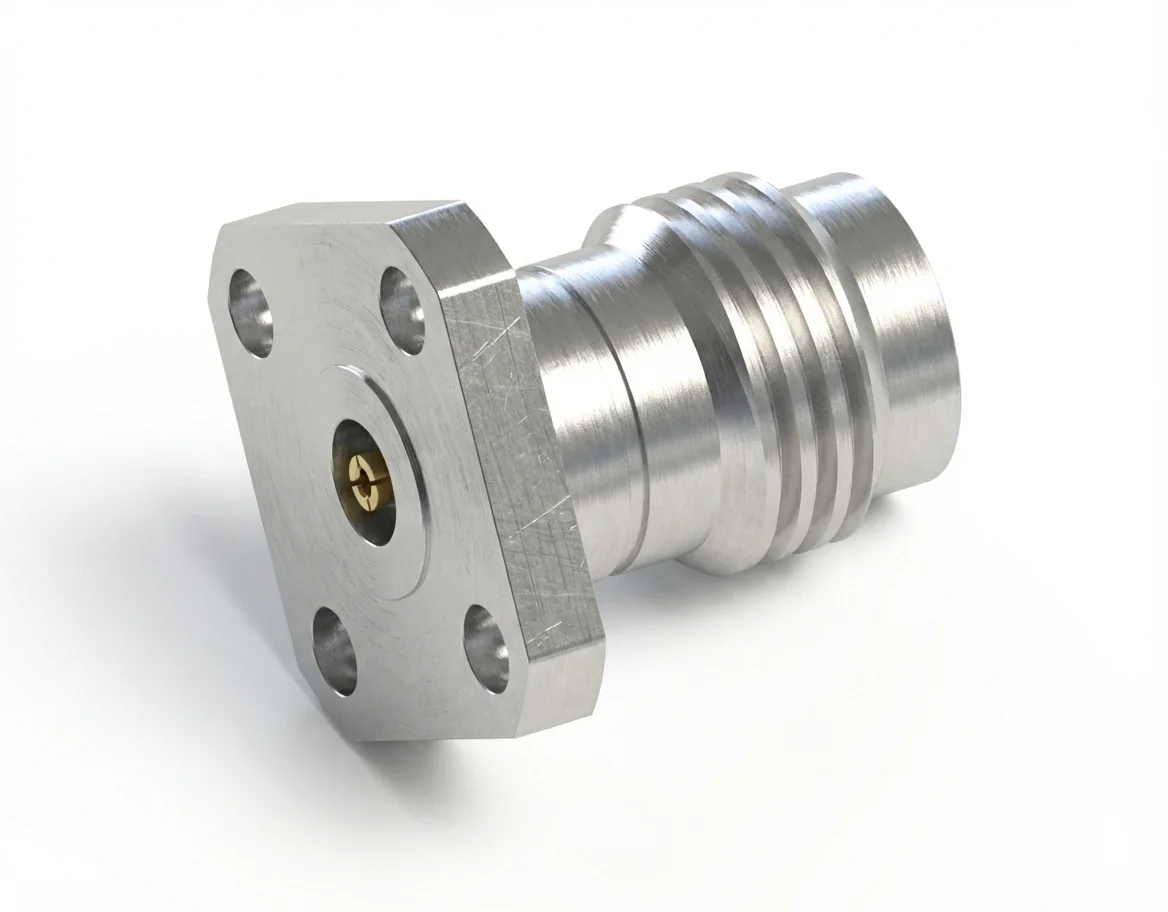

2.4mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD9

The 2.4mm female 4-hole flange mount RF connector with a 0.46 mm pin diameter and 6.35 mm hole spacing is engineered for high-power, compact RF applications. Operating at 50 Ω up to 50 GHz, this field-replaceable connector delivers consistent electrical integrity and mechanical endurance in professional laboratory environments.

High-Power Signal Integrity

The 2.4mm female 4-hole flange mount RF connector achieves a VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB. The 0.46 mm pin diameter offers a broader contact surface, improving signal transfer stability and minimizing resistive heating in repeated use.

Mechanical Endurance, Build Quality, and Compliance

The 2.4mm female flange connector features precision-machined stainless steel with gold-plated beryllium copper contacts, ensuring long-term electrical stability and mechanical strength. Fully REACH and RoHS compliant, it satisfies international safety and environmental directives while maintaining performance across −55 °C to +165 °C. This durability makes it well-suited for intensive laboratory use and high-frequency testing setups.

Engineered for Compact Power Systems

Its 6.35 mm hole spacing allows installation on 4-hole flange mount assemblies with restricted mounting surfaces, making it ideal for power-sensitive radar analyzers, synthesizers, and RF component evaluation systems.

Tailored Design Solutions

Mechanc specializes in 2.4 mm RF connectors offering bespoke mechanical configurations for specific test architectures. Visit our RF Connector Catalog to explore compatible models across the 2.4 mm precision series. Pair with the 2.4mm male 4-hole flange mount RF connector – Model 2.4-JFD9 for stable broadband connectivity and repeatable metrological precision.
