2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.51mm Pin Diameter

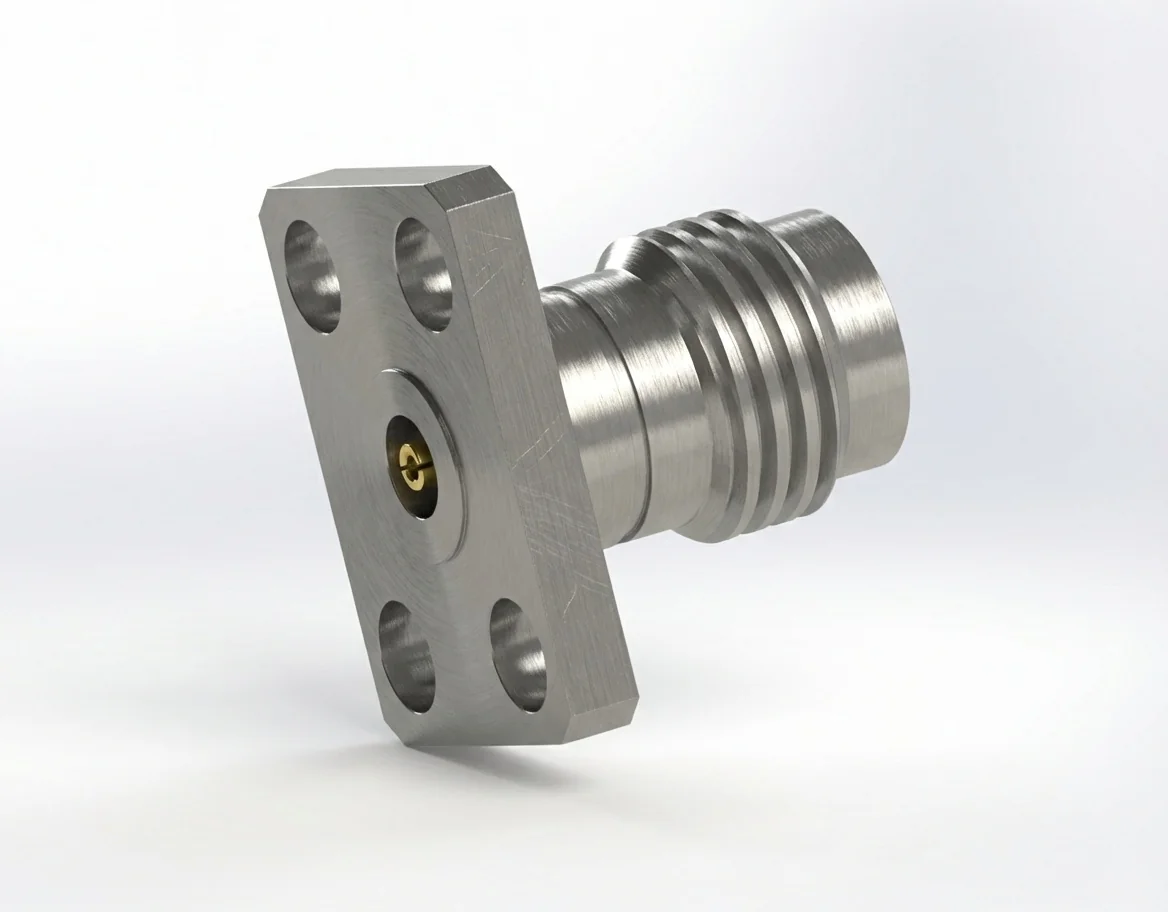

2.4mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD15

The 2.4 mm female 4-hole flange mount RF connector with a 0.51 mm pin and 5.64 mm hole spacing is engineered for rugged laboratory environments requiring mechanical reliability and signal consistency. With 50 Ω impedance and a maximum frequency of 50 GHz, this field-replaceable connector provides exceptional stability for precision RF testing.

Stable Electrical Parameters

Exhibiting VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm female 4-hole flange mount RF connector maintains accurate impedance matching under frequent coupling cycles. The 0.51 mm pin diameter offers reliable contact strength for heavy-duty use.

Material Integrity and Environmental Compliance

The 2.4 mm female flange connector is constructed from stainless steel with gold-plated beryllium-copper contacts, ensuring superior conductivity and corrosion resistance. Fully REACH and RoHS compliant, it withstands extreme temperature variations from −55 °C to +165 °C while maintaining stable performance.

Applications in Precision Test Assemblies

The 5.64 mm flange spacing facilitates integration within 4-hole flange mount connector assemblies used in signal distribution networks, calibration instruments, and RF verification platforms.

Tailored Engineering Support

Mechanc’s 2.4 mm RF connector family includes configurable pin and flange options to suit a range of RF setups. Visit our RF Connector Catalog for additional compatible solutions and custom engineering options. Pair with the <a href="/rf-connectors/2-4mm-male-4-hole-flange-rf-connect
