2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.51mm Pin Diameter

2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, Model 2.4-KFD5

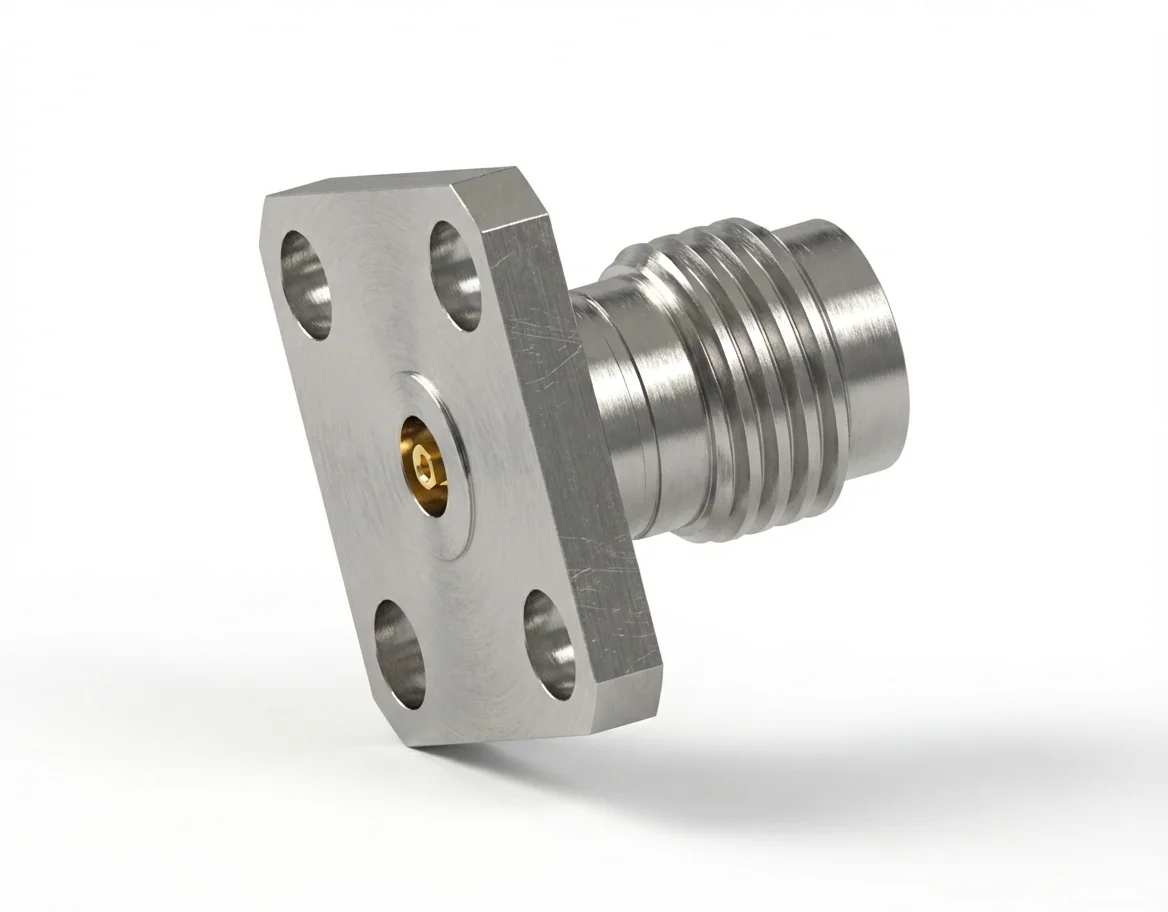

The 2.4 mm female 4-hole flange mount RF connector with 8.64 mm hole spacing and a 0.51 mm pin diameter offers exceptional precision and repeatability across broadband microwave frequencies. Designed for 50 Ω impedance and up to 50 GHz, the 2.4-KFD5 combines low-loss electrical performance with robust mechanical construction for demanding test and measurement applications. Explore the full range of RF connectors available from Mechanc.

High-Frequency Performance and Impedance Control

The 2.4-KFD5 RF connector ensures VSWR ≤ 1.18 and insertion loss ≤ 0.06 √F(GHz) dB, guaranteeing stable return loss and minimal signal degradation. Its precision 2.4 mm interface enables repeatable connection cycles and reliable impedance matching for laboratory-grade network analyzers and calibration systems. Visit our 2.4 mm connector family for more high-frequency solutions.

Flange Design and Mechanical Alignment

The 4-hole flange mount configuration provides strong structural anchoring and accurate reference-plane alignment. With its 8.64 mm flange spacing, the 2.4-KFD5 supports secure installation in high-density test setups, ensuring consistent torque response and reliable long-term performance.

Material Construction and Durability

Machined from passivated stainless steel and featuring a gold-plated beryllium-copper center contact, the 2.4-KFD5 connector combines superior electrical conductivity with mechanical resilience. All Mechanc components are fully RoHS and REACH compliant, engineered for longevity in precision instrumentation. Learn more about our field-replaceable connector line.

Applications and Custom Design Options

The 2.4-KFD5 4-hole flange mount RF connector is optimized for broadband analyzers, calibration modules, and high-frequency test fixtures requiring stable phase and repeatable performance. Mechanc provides custom flange designs, alternative plating finishes, and non-magnetic options tailored for advanced RF measurement environments.

For the corresponding male version, see the mirror part: 2.4 mm Male 4-Hole Flange RF Connector – 0.51 mm Pin Diameter, Model 2.4-JFD5.
