| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

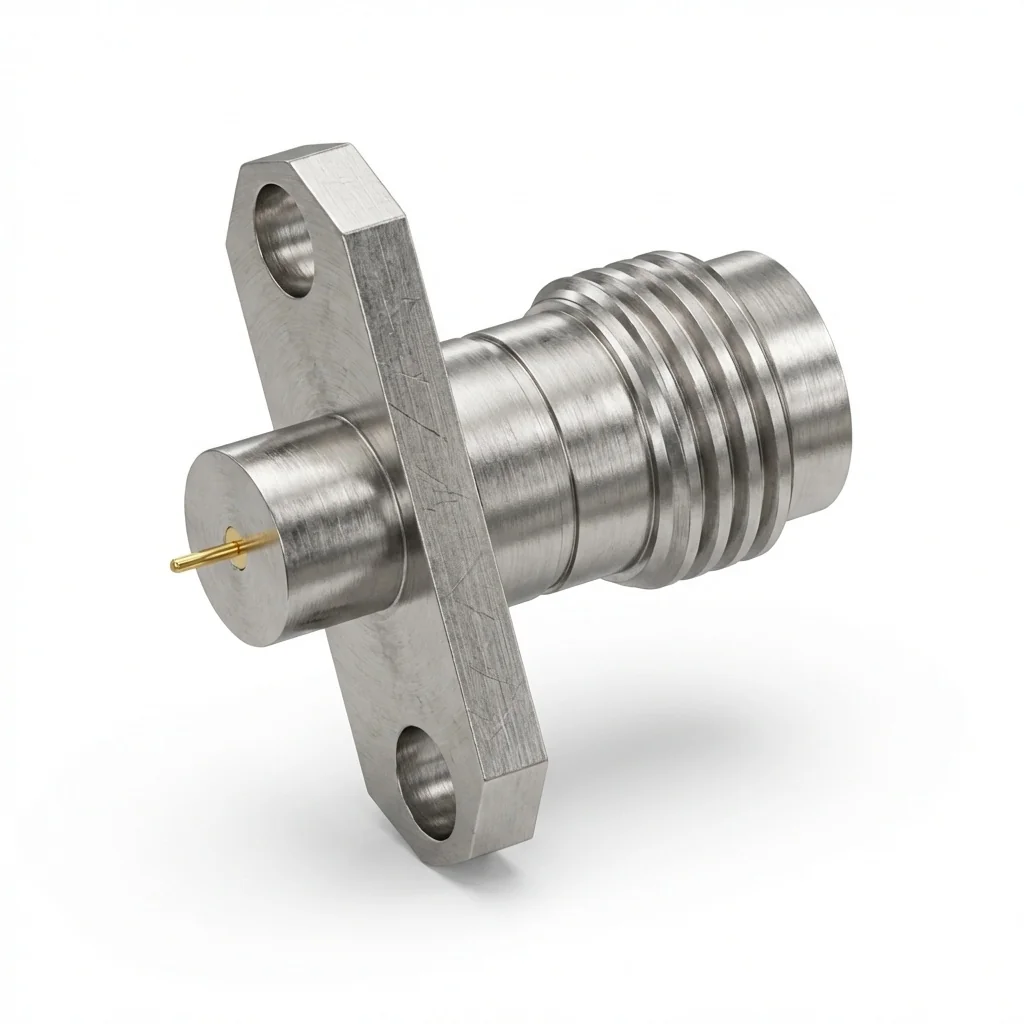

The 2.4mm female 2-hole flange mount RF connector with a 0.30 mm pin and 12.2 mm hole spacing is designed for secure solder attachment in high-frequency assemblies. Supporting 50 Ω impedance and frequencies up to 50 GHz, this precision-engineered connector ensures stable signal transmission and reliable mechanical performance for laboratory and production use.
With VSWR ≤ 1.18 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4mm female 2-hole flange mount RF connector maintains superior impedance consistency and low reflection across broadband systems, guaranteeing precision in calibration and test applications.
Manufactured from stainless steel and fitted with gold-plated beryllium copper contacts, the 2.4mm female flange connector delivers exceptional durability, conductivity, and resistance to corrosion. Fully REACH and RoHS compliant, it performs consistently across −55 °C to +165 °C environments.
The 12.2 mm 2-hole flange spacing allows integration with 2-hole flange mount RF connectors used in frequency analyzers, signal distribution networks, and precision instrumentation requiring soldered, vibration-resistant attachment.
Mechanc provides a comprehensive range of 2.4mm RF connectors optimized for solder-based, high-frequency connections. Visit the RF Connector Catalog to explore compatible field-replaceable and precision interconnect solutions.
