2.4mm Female PCB Mount RF Connector – End Launch Clamp Solder

2.4mm Female PCB Mount RF Connector – End Launch Clamp Solder, Model 2.4-KFD801

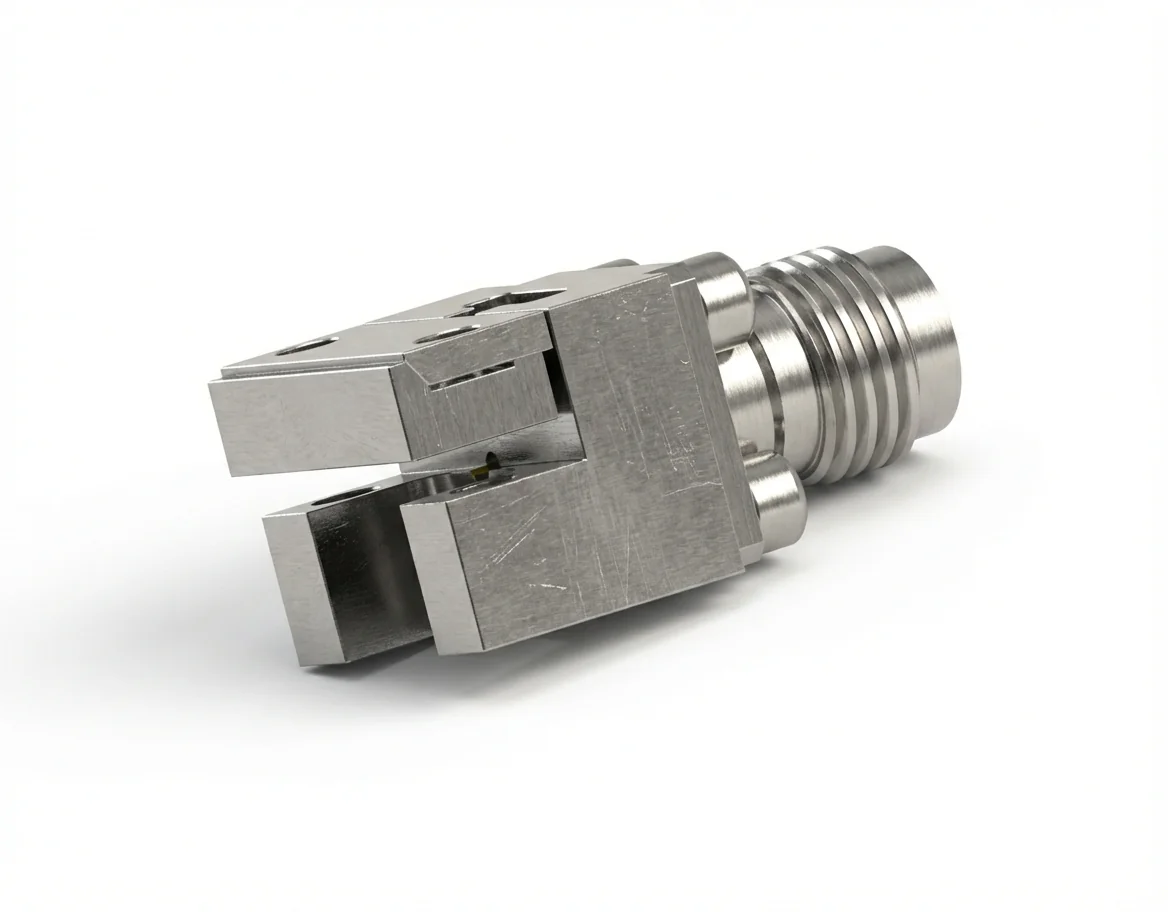

The 2.4mm female PCB mount RF connector with an end launch clamp solder design offers superior electrical precision for high-frequency printed circuit board applications. Engineered for 50 Ω impedance and frequency operation up to 50 GHz, this connector ensures low-loss signal integrity in compact, high-speed RF modules.

High-Frequency Electrical Performance

Delivering VSWR ≤ 1.18 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4mm female PCB mount RF connector guarantees minimal reflection and optimal return-loss performance, making it suitable for precision instrumentation and broadband testing circuits.

Mechanical Design and Material Reliability

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.4mm female PCB connector provides excellent conductivity, corrosion resistance, and mechanical stability. Fully REACH and RoHS compliant, it operates reliably between −55 °C and +165 °C in demanding RF environments.

Applications in PCB and Measurement Systems

The end launch configuration enables seamless integration with PCB mount RF connectors for high-speed data transmission and precision measurement platforms. The clamp solder interface enhances mechanical fixation and repeatability in calibration-grade test boards.

Custom RF Design Options

Mechanc manufactures 2.4mm RF connectors tailored for high-frequency PCB and modular integration. Explore our RF Connector Catalog to find compatible PCB-mount, field-replaceable, and end-launch RF solutions for your next project.
