2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.23mm Pin Diameter

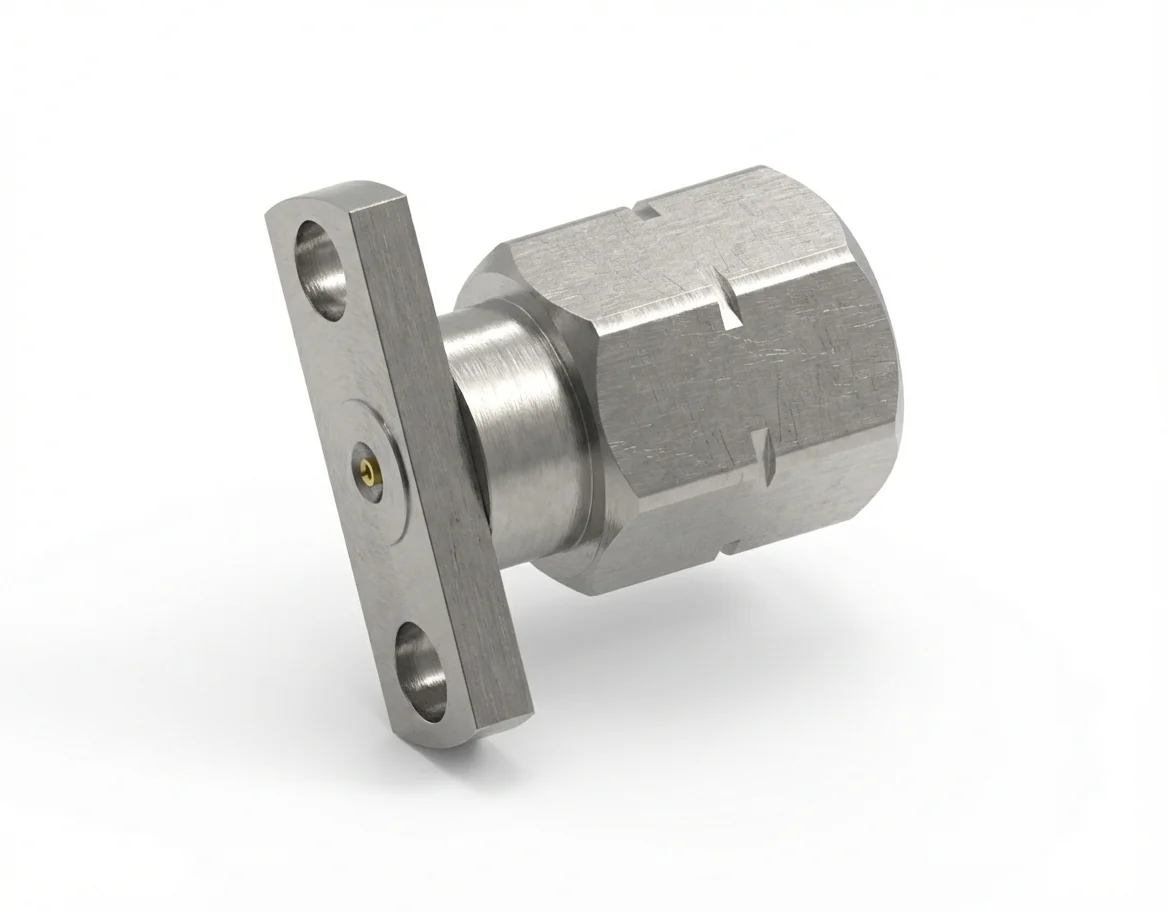

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD21

The 2.4 mm male 2-hole flange mount RF connector with a 0.23 mm pin and 10.2 mm hole spacing provides compact precision for high-frequency signal paths. Designed for 50 Ω operation up to 50 GHz, this field-replaceable RF connector delivers superior return loss and signal reliability in micro-scale RF systems.

Precision Design for Compact Modules

With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 2-hole flange mount RF connector ensures ultra-low reflection and phase consistency. The 0.23 mm pin is optimized for tight-tolerance metrology instruments and low-power calibration setups.

Material Integrity and Compliance

Manufactured from stainless steel and gold-plated beryllium copper, the 2.4 mm male flange connector guarantees long-lasting conductivity and corrosion resistance. It is fully REACH and RoHS compliant and performs within −55 °C to +165 °C.

Applications and Mounting

Designed for compact analyzers, precision switch banks, and portable RF modules, this connector integrates smoothly into 2-hole flange mount assemblies where minimal footprint and repeatable alignment are essential.

Matching Female Model

The 2.4-JFD21 mates with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD21. Explore Mechanc’s 2.4 mm RF connector range within the RF Connector Catalog for additional configurations.
