2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.23mm Pin Diameter

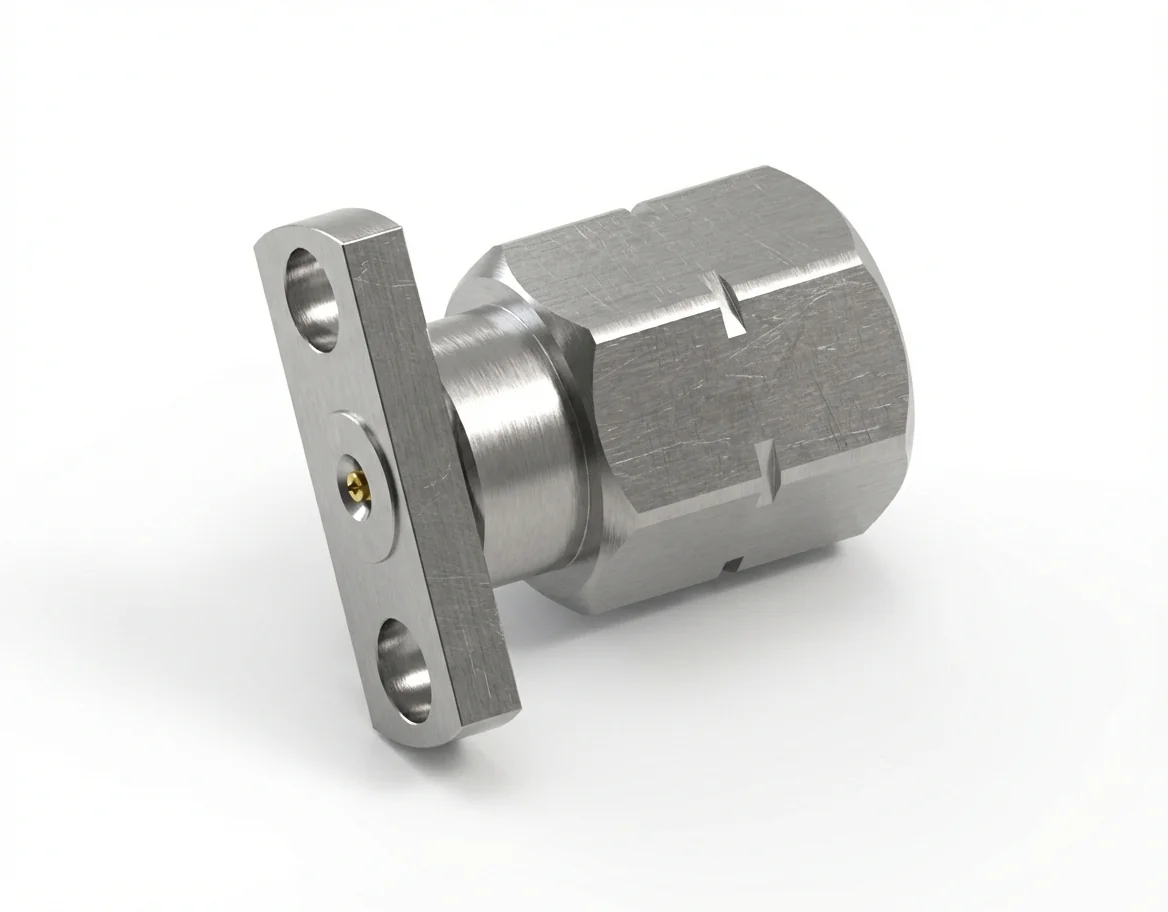

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD26

The 2.4 mm male 2-hole flange mount RF connector with a 0.23 mm pin and 9 mm hole spacing is designed for ultra-compact high-frequency assemblies. Supporting 50 Ω systems up to 50 GHz, this field-replaceable connector ensures stable, repeatable performance in space-constrained precision applications.

Compact Precision and Electrical Stability

Delivering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 2-hole flange mount RF connector maintains excellent impedance control and low signal reflection. Its ultra-fine 0.23 mm pin is ideal for sensitive measurement setups and micro-calibration networks.

Material Integrity and Compliance

Manufactured from stainless steel and gold-plated beryllium copper, the 2.4 mm male flange connector provides reliable electrical contact and corrosion resistance. It is fully REACH and RoHS compliant and performs consistently between −55 °C and +165 °C.

Applications in Miniaturized Systems

Used in portable analyzers, micro signal analyzers, and compact calibration modules, it fits standard 2-hole flange mount RF connectors where limited surface area demands precision alignment.

Matching Female Connector

The 2.4-JFD26 pairs with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD26. Explore the 2.4 mm RF connector collection in Mechanc’s RF Connector Catalog for complementary models.
