2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.38mm Pin Diameter

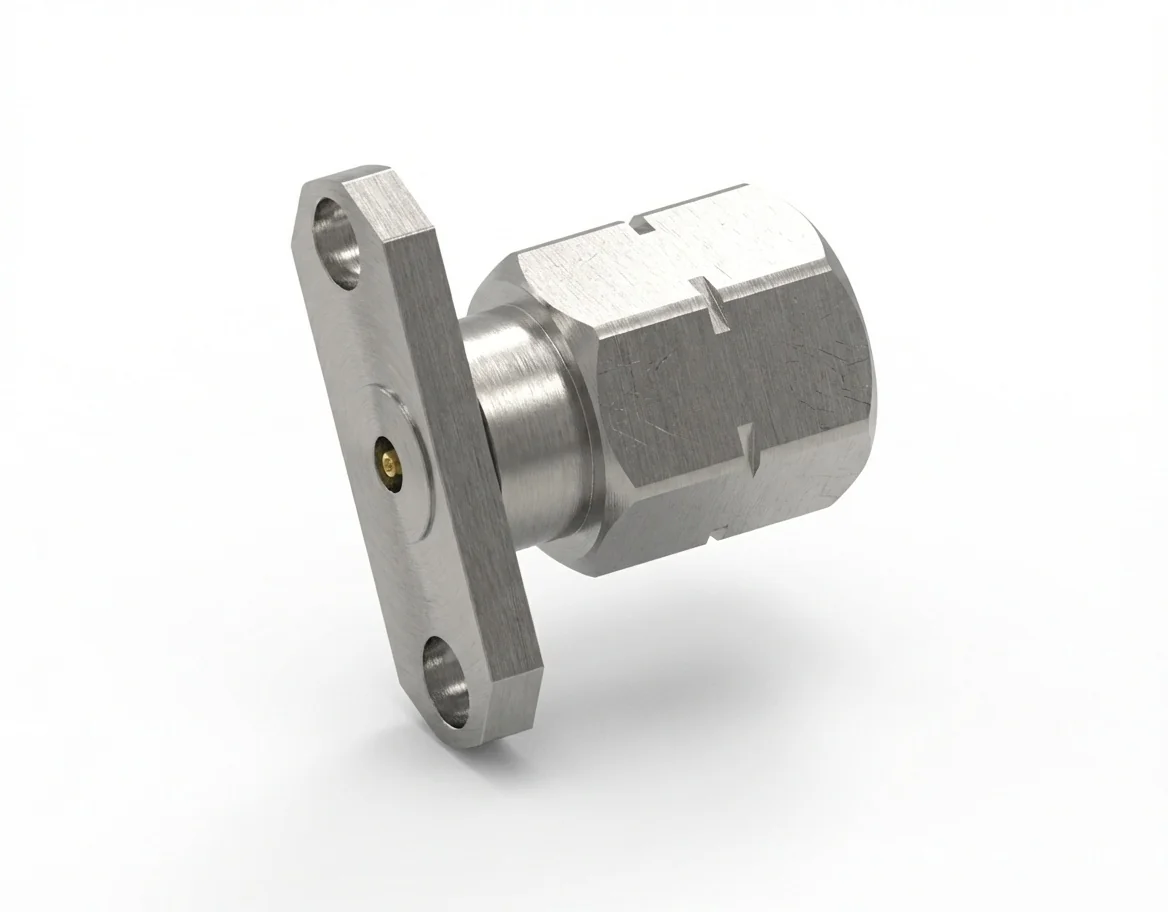

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD18

The 2.4 mm male 2-hole flange mount RF connector with a 0.38 mm pin and 12.22 mm hole spacing is optimized for stable performance in microwave and millimeter-wave testing. This field-replaceable connector ensures tight mechanical coupling and repeatable electrical performance up to 50 GHz.

Enhanced Contact Stability

Delivering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 2-hole flange mount RF connector provides low-loss signal transfer with excellent impedance control. The 0.38 mm pin supports strong mechanical engagement under repeated use.

Material Construction and Compliance

Machined from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector is fully REACH and RoHS compliant and rated for −55 °C to +165 °C operation.

Applications in Testing and Measurement

Designed for analyzers, switch banks, and RF evaluation platforms, it mounts securely on 2-hole flange mount RF interfaces where durability and signal precision are paramount.

Compatible Female Connector

The 2.4-JFD18 pairs with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD18. Discover more 2.4 mm RF connectors and custom solutions in the RF Connector Catalog.
