2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.38mm Pin Diameter

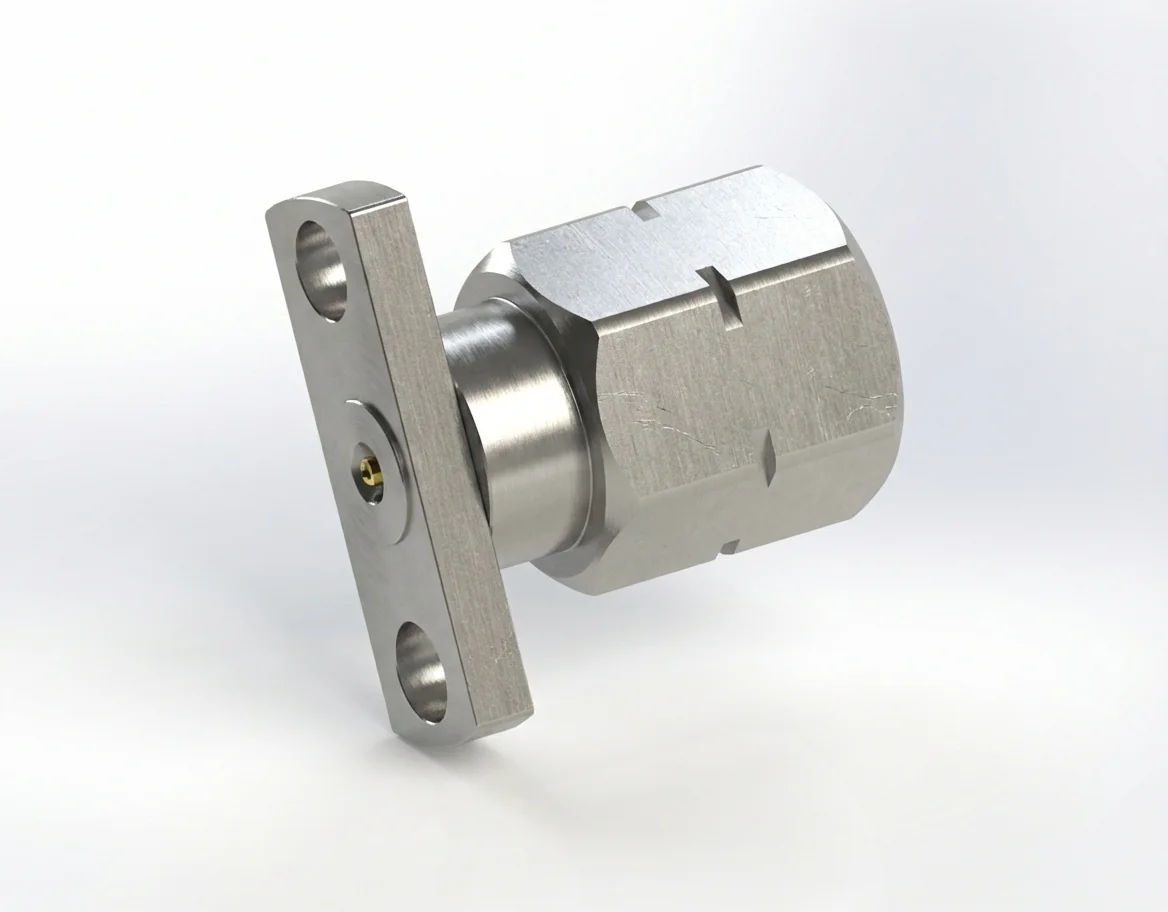

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD23

The 2.4 mm male 2-hole flange mount RF connector with a 0.38 mm pin and 10.2 mm hole spacing is engineered for robust, repeatable performance in compact test setups. Operating at 50 Ω up to 50 GHz, this field-replaceable connector provides exceptional electrical and mechanical integrity for demanding laboratory environments.

Low VSWR and Repeatable Coupling

The 2.4 mm male 2-hole flange mount RF connector offers VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, maintaining low signal reflection and consistent impedance even after multiple connections. The 0.38 mm pin enhances robustness and precise alignment.

Material Construction and Environmental Safety

Produced from stainless steel and gold-plated beryllium copper, the 2.4 mm male flange connector resists wear and oxidation. Fully REACH and RoHS compliant, it operates reliably from −55 °C to +165 °C.

Applications in Test and Measurement

Ideal for signal routing modules, frequency calibration equipment, and compact analyzer setups, it mounts seamlessly on 2-hole flange mount RF assemblies for secure integration.

Matching Female Version

The 2.4-JFD23 mates with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-K
