| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

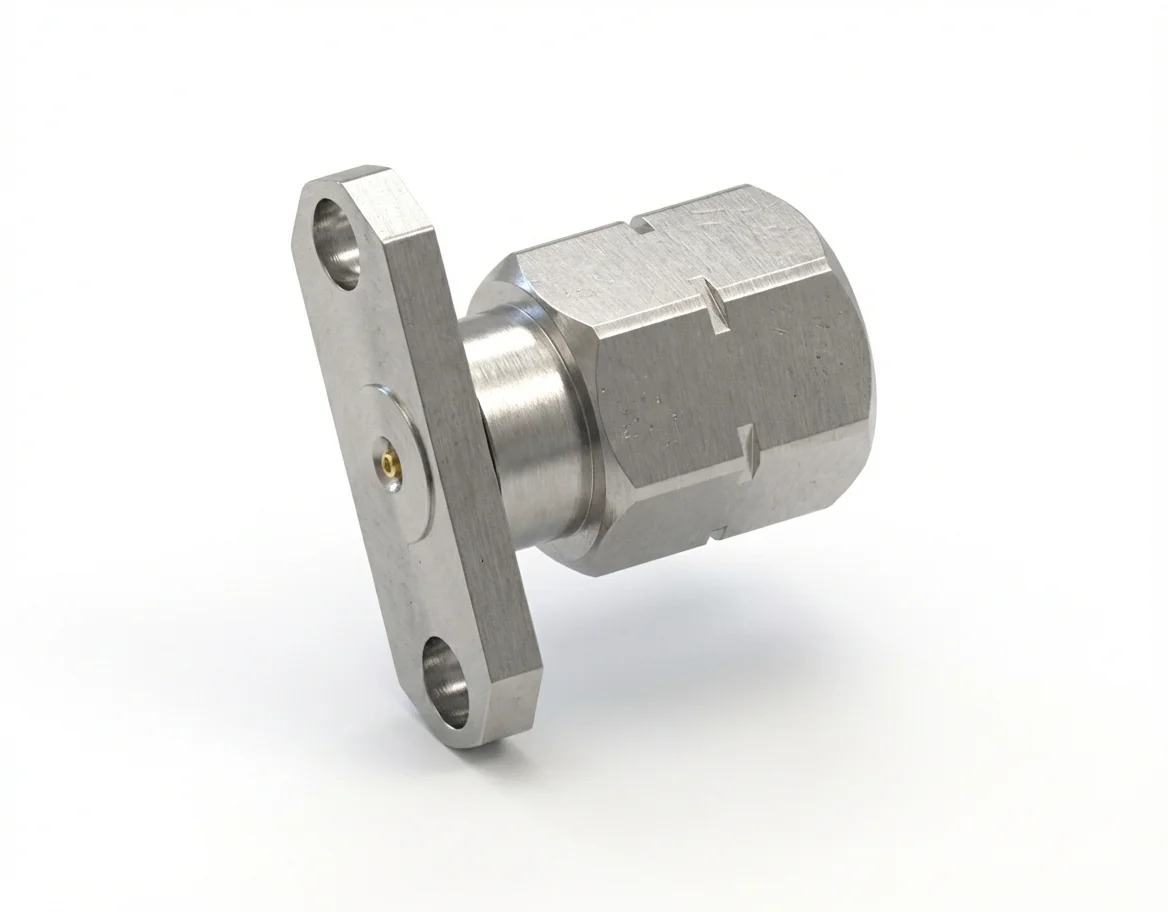

The 2.4 mm male 2-hole flange mount RF connector with a 0.30 mm pin and 12.22 mm hole spacing delivers excellent balance between mechanical stability and electrical precision. Operating at 50 Ω to 50 GHz, this field-replaceable connector is ideal for compact microwave assemblies and test instrumentation.
The 2.4 mm male 2-hole flange mount RF connector achieves VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB. The 0.30 mm pin ensures a consistent contact surface for reliable signal transfer across wide frequency bands.
Constructed from stainless steel and gold-plated beryllium copper, the 2.4 mm male flange connector offers robustness and excellent electrical conductivity. It is fully REACH and RoHS certified and withstands temperatures from −55 °C to +165 °C.
This model is suited for vector network analyzer ports, frequency synthesizers, and compact test modules that employ 2-hole flange mount RF connectors for secure alignment and reliability.
The 2.4-JFD17 mates with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD17. Visit the 2.4 mm RF connector series in Mechanc’s RF Connector Catalog.
