2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.46mm Pin Diameter

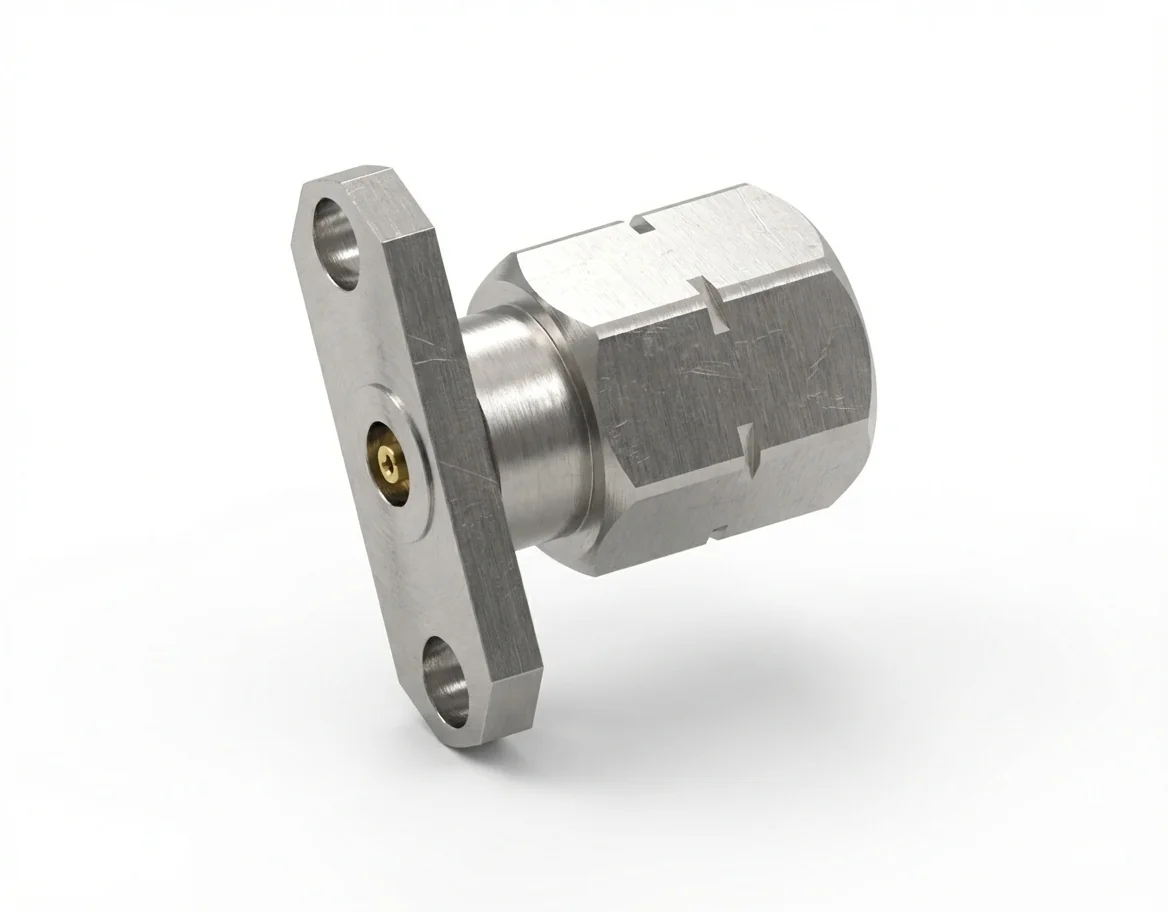

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD19

The 2.4 mm male 2-hole flange mount RF connector featuring a 0.46 mm pin and 12.22 mm hole spacing is crafted for durable, high-power microwave applications. This field-replaceable connector supports 50 Ω systems up to 50 GHz with superior return-loss control and mechanical rigidity.

Power Handling and Electrical Precision

Offering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 2-hole flange mount RF connector ensures broadband stability and minimal reflection. The 0.46 mm pin reinforces contact strength for reliable performance under load.

Mechanical Design and Compliance

Fabricated from stainless steel and gold-plated beryllium copper, the 2.4 mm male flange connector is fully REACH and RoHS compliant and maintains stability between −55 °C and +165 °C.

Field Applications

This connector is used in broadband amplifier evaluation, signal distribution, and phase stable testing assemblies utilizing 2-hole flange mount RF connectors for tight space installations.

Matching Female Connector

The 2.4-JFD19 is designed to mate with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD19. Explore the full 2.4 mm RF connector family in Mechanc’s RF Connector Catalog.
