2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.46mm Pin Diameter

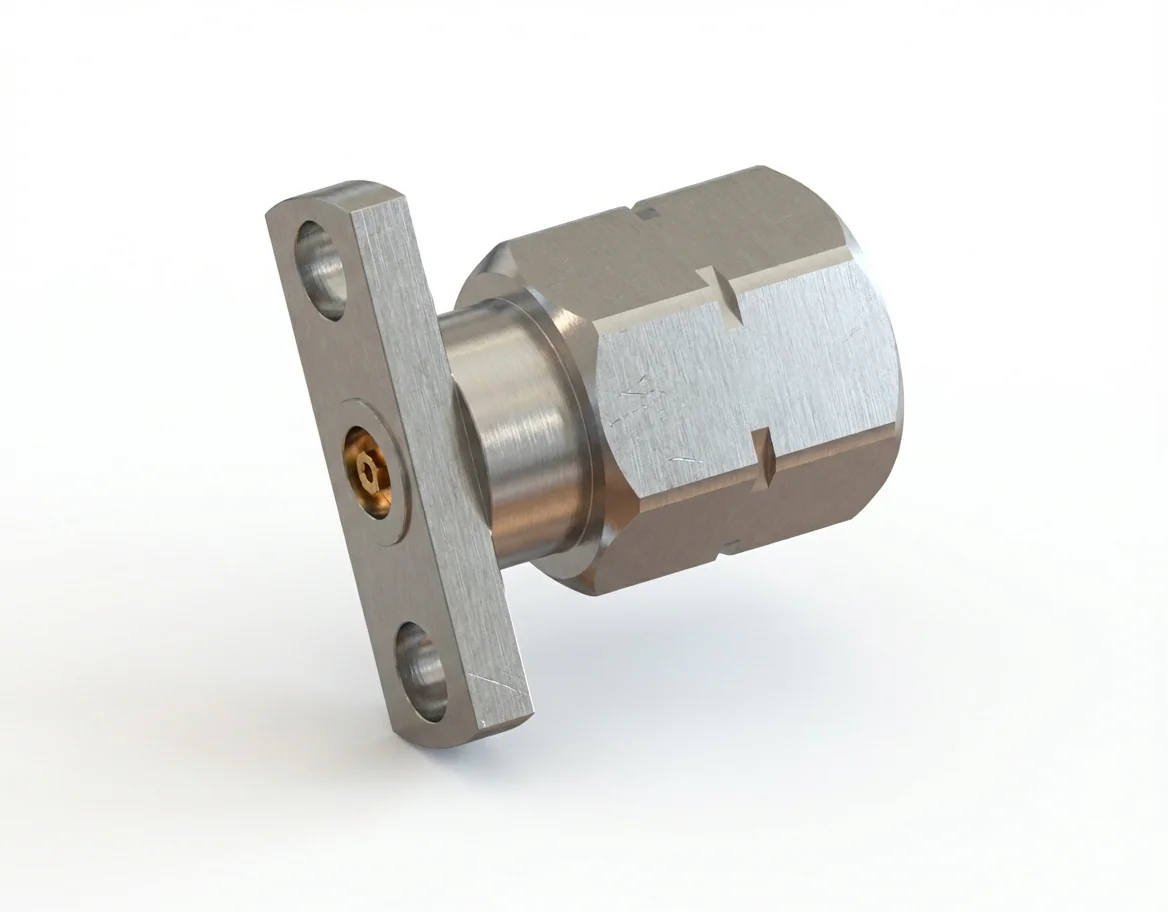

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD24

The 2.4 mm male 2-hole flange mount RF connector with a 0.46 mm pin and 10.2 mm hole spacing combines mechanical endurance with electrical precision. Designed for 50 Ω operation up to 50 GHz, this field-replaceable connector ensures low-loss transmission for professional RF test systems.

Optimized for Power and Accuracy

With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 2-hole flange mount RF connector delivers consistent signal performance under mechanical load. The 0.46 mm pin enhances current capacity while maintaining excellent impedance balance.

High-Quality Materials and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector offers long-lasting durability and environmental protection. Fully REACH and RoHS compliant, it endures temperatures between −55 °C and +165 °C.

Applications

This connector is often used in precision network analyzers, frequency control equipment, and modular RF testing platforms featuring 2-hole flange mount RF connectors for repeatable precision.

Compatible Female Version

The 2.4-JFD24 pairs with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD24. Explore more 2.4 mm RF connectors and field-replaceable models in Mechanc’s RF Connector Catalog.
