2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.51mm Pin Diameter

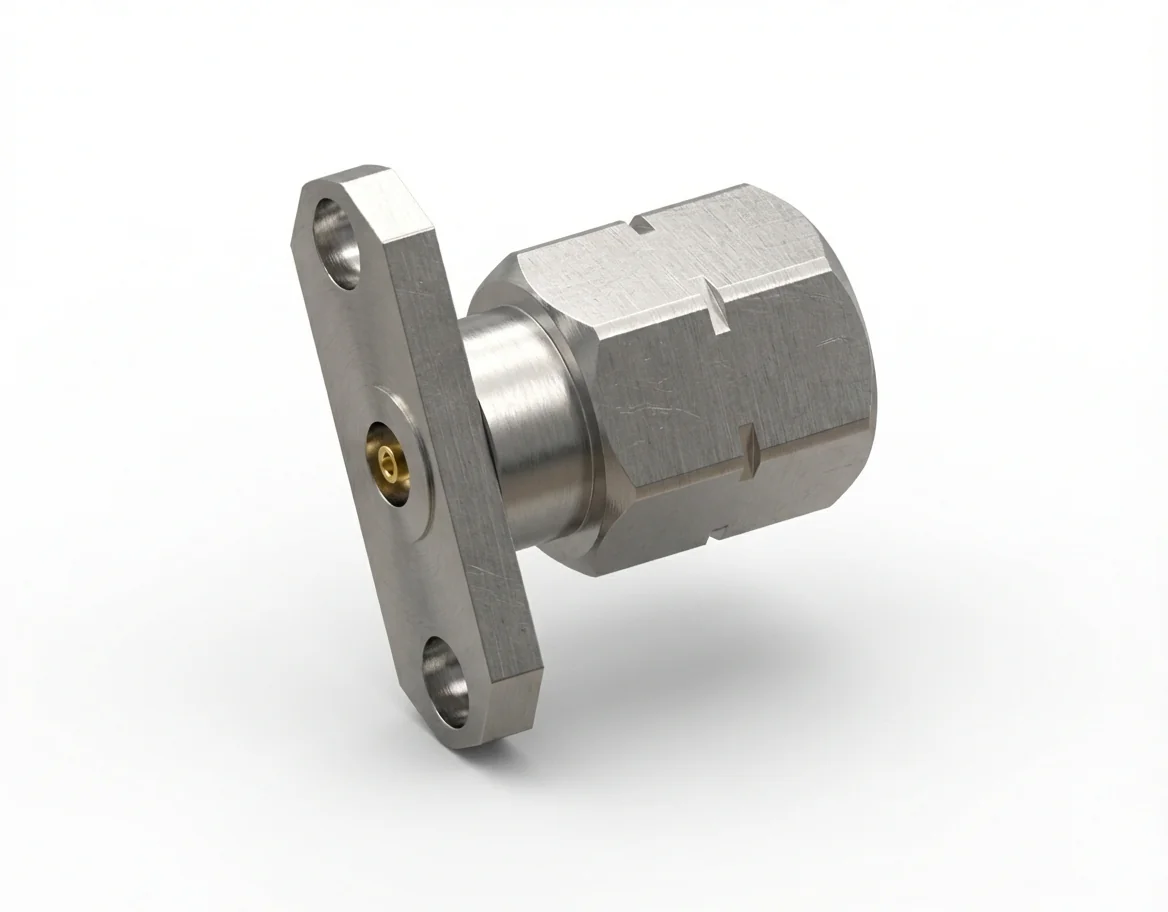

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD20

The 2.4 mm male 2-hole flange mount RF connector with a 0.51 mm pin and 12.22 mm hole spacing provides a rugged solution for high-frequency testing and precision power systems. This field-replaceable connector maintains low-loss signal integrity in 50 Ω systems up to 50 GHz.

Reliable Electrical Performance

With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 2-hole flange mount RF connector delivers high-power signal transmission with minimal attenuation. The 0.51 mm pin ensures robust contact for heavy-duty mating cycles.

Material Quality and Compliance

Crafted from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector is fully REACH and RoHS compliant and guarantees long-term reliability from −55 °C to +165 °C.

Applications and Integration

Used in broadband analyzers, microwave network testing, and aerospace instrumentation, it mounts onto 2-hole flange mount RF interfaces requiring precision and mechanical stability.

Complementary Connector

The 2.4-JFD20 mates with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD20. For other pin configurations and field-replaceable options, browse the 2.4 mm RF connector range in the RF Connector Catalog.
