2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.51mm Pin Diameter

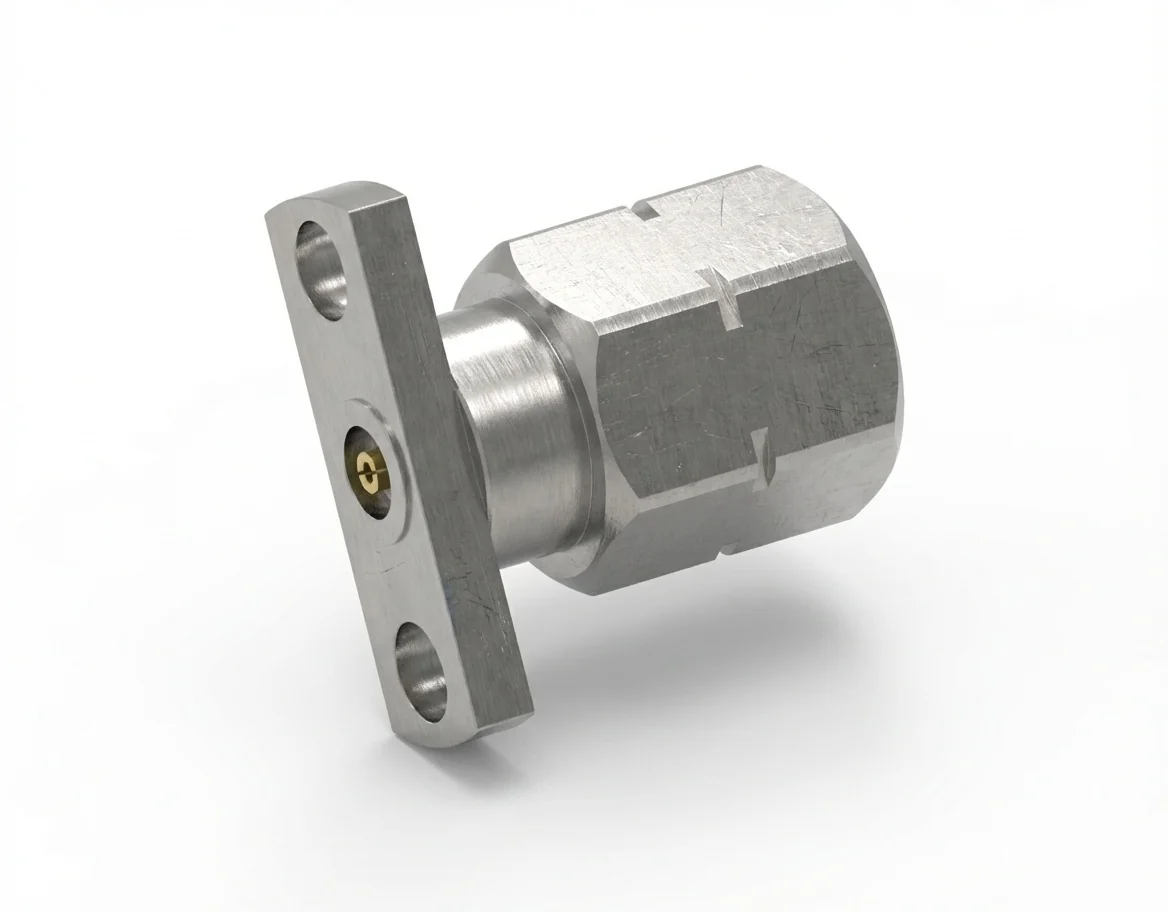

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD25

The 2.4 mm male 2-hole flange mount RF connector with a 0.51 mm pin and 10.2 mm hole spacing provides exceptional durability and electrical integrity for high-frequency test systems. Operating up to 50 GHz at 50 Ω, this field-replaceable connector ensures minimal reflection and long-term connection reliability.

High-Power Signal Transmission

Featuring VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 2-hole flange mount RF connector supports stable signal flow even in high-power setups. The 0.51 mm pin enhances current capacity and structural strength for intensive testing.

Material Robustness and Compliance

Made from stainless steel and gold-plated beryllium copper, the 2.4 mm male flange connector resists mechanical fatigue and oxidation. It is fully REACH and RoHS compliant and rated for −55 °C to +165 °C operation.

Integration and Applications

Used in broadband analyzer setups, microwave bench systems, and RF calibration stations, it mounts precisely with 2-hole flange mount RF connectors for compact high-frequency assemblies.

Compatible Connector

The 2.4-JFD25 is compatible with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD25. Browse additional 2.4 mm RF connectors and precision-grade field-replaceable designs in the RF Connector Catalog.
