2.4mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.51mm Pin Diameter

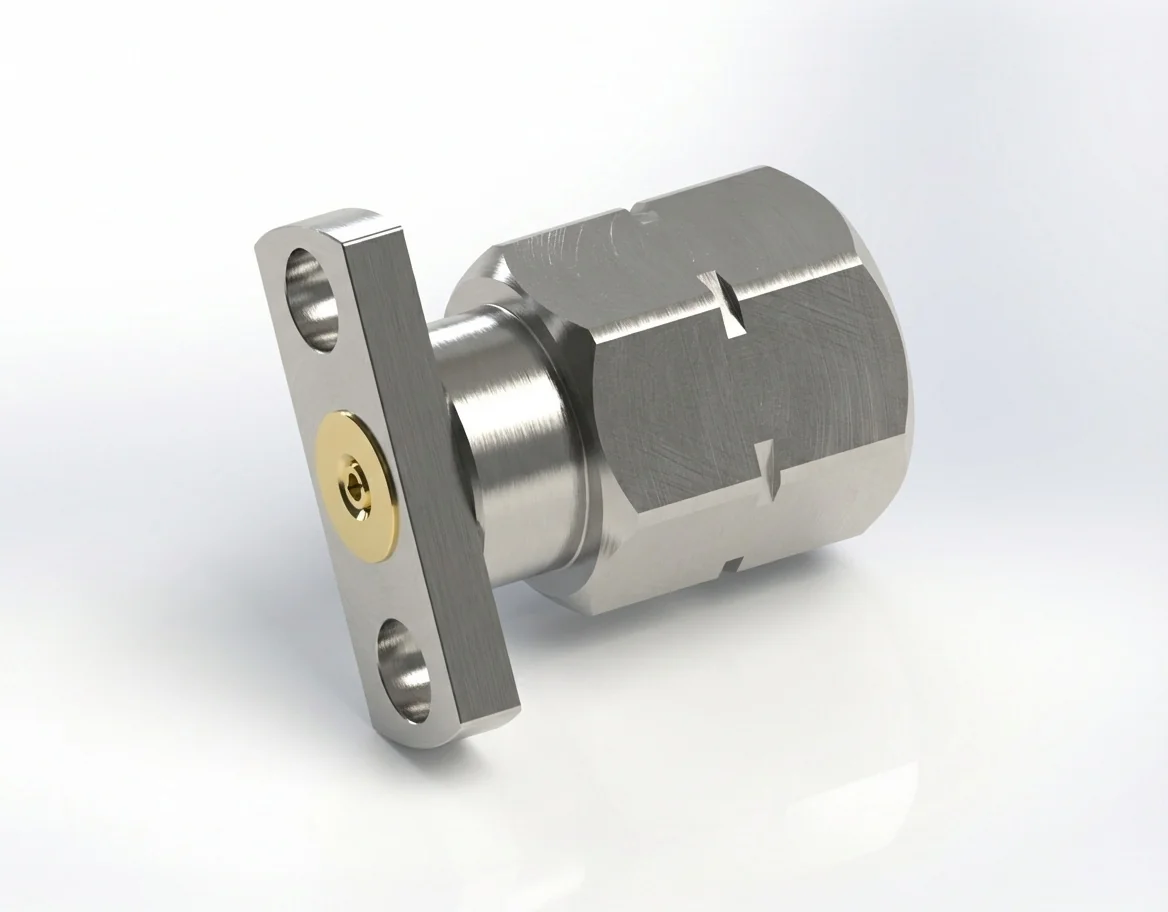

2.4mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD30

The 2.4 mm male 2-hole flange mount RF connector with a 0.51 mm pin and 9 mm hole spacing delivers heavy-duty electrical stability in a miniature footprint. Designed for 50 Ω systems up to 50 GHz, this field-replaceable connector combines robust mechanics with excellent signal integrity.

Stable High-Frequency Performance

Providing VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 2-hole flange mount RF connector supports high-power testing environments while maintaining precise impedance control. The 0.51 mm pin maximizes contact surface and durability.

Material Quality and Compliance

Fabricated from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector is fully REACH and RoHS compliant and performs across a wide thermal range from −55 °C to +165 °C.

Applications and Integration

Used in broadband amplifier modules, precision calibration networks, and compact signal distribution assemblies, this connector integrates seamlessly with 2-hole flange mount RF connectors.

Complementary Female Connector

The 2.4-JFD30 mates with the 2.4 mm female 2-hole flange mount RF connector – Model 2.4-KFD30. View related 2.4 mm RF connectors in Mechanc’s RF Connector Catalog.
