2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.23mm Pin Diameter

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD1

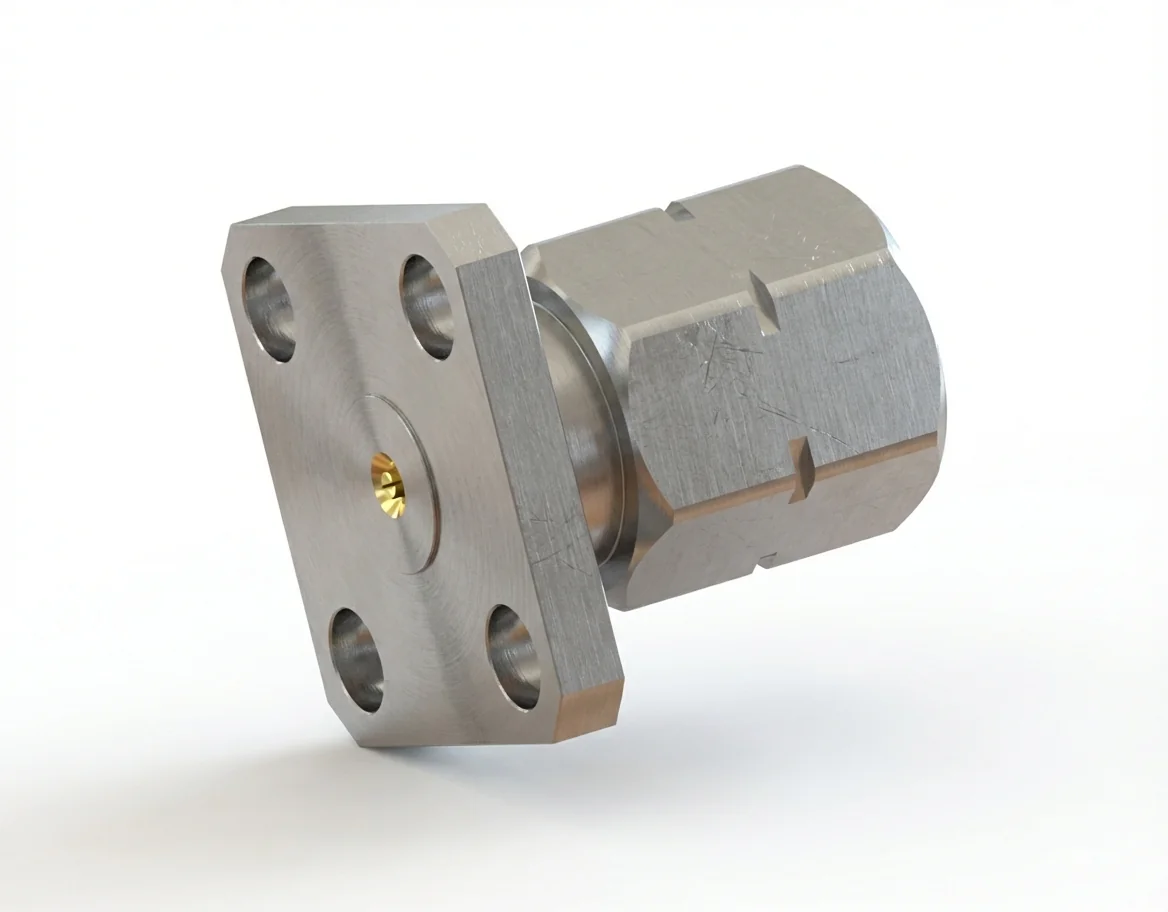

The 2.4mm male 4-hole flange mount RF connector with a 0.23 mm pin and 8.64 mm hole spacing is engineered for high-frequency signal-launch applications requiring utmost precision. Rated for 50 Ω impedance and frequencies up to 50 GHz, this field-replaceable connector ensures low-loss and repeatable performance in calibration modules and analyzer test ports.

High-Frequency Signal Stability

Delivering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4mm male 4-hole flange mount RF connector guarantees phase consistency and minimal reflection across broadband measurement ranges. The finely machined 0.23 mm launch pin provides precise alignment and stable impedance control during repeated connections.

Material Integrity and Environmental Compliance

Constructed from passivated stainless steel with gold-plated beryllium-copper contacts, the 2.4mm male flange connector offers superior conductivity, corrosion resistance, and long-term mechanical strength. Fully REACH and RoHS compliant, it operates reliably between −55 °C and +165 °C in demanding laboratory and production environments.

Applications in RF Measurement Systems

This model serves as a precision launch interface for vector-network analyzers, microwave signal sources, and metrology-grade calibration fixtures. The four-hole flange ensures secure mounting on 4-hole flange mount RF connectors used throughout modular measurement platforms.

Compatible Interfaces and Custom Solutions

The 2.4-JFD1 is designed to mate with its corresponding female version, available as the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD1. Mechanc also manufactures customized 2.4 mm RF connectors in varied pin geometries, flange patterns, and plating options. Explore the full RF Connector Catalog for compatible high-frequency assemblies.
