2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.23mm Pin Diameter

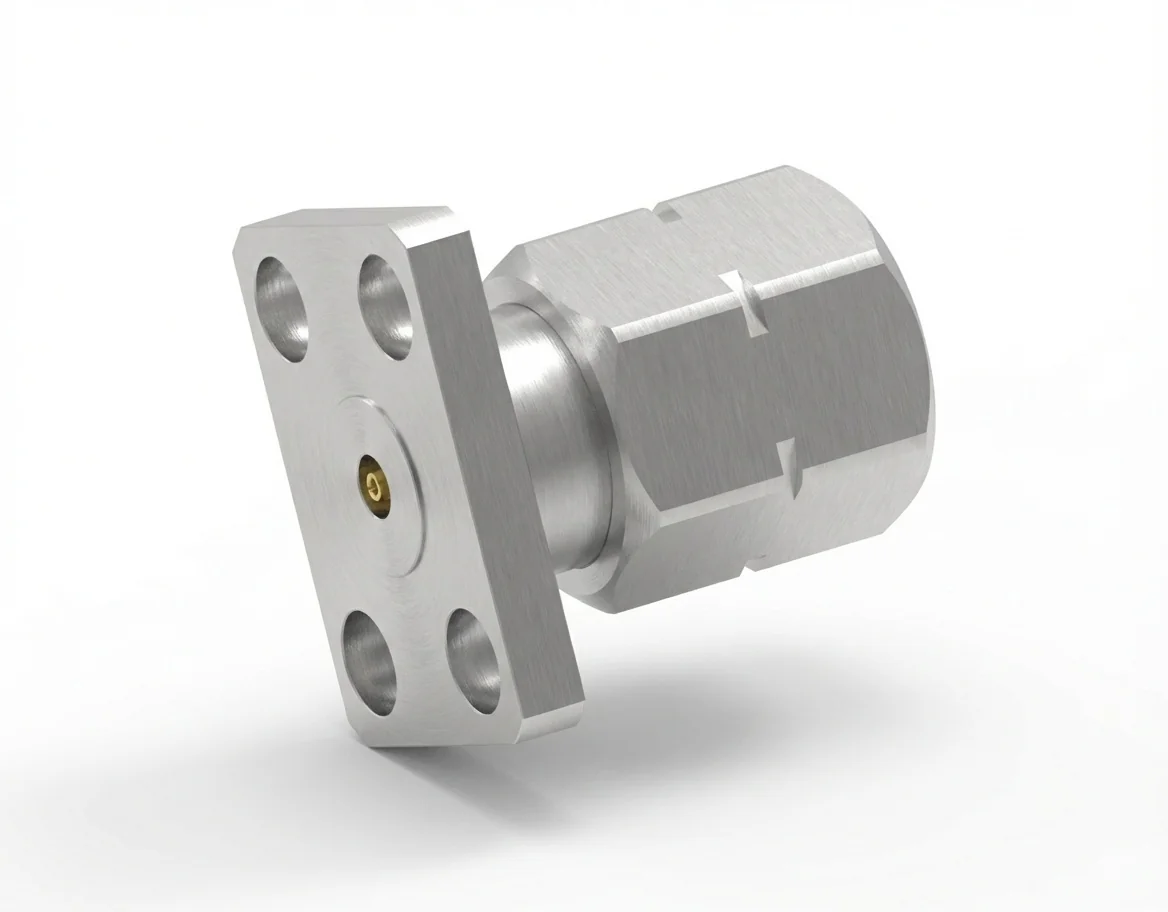

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD11

The 2.4 mm male 4-hole flange mount RF connector with a 0.23 mm pin and 5.64 mm hole spacing is engineered for fine-tolerance test systems where space and accuracy are crucial. Operating from DC to 50 GHz at 50 Ω, this field-replaceable RF connector delivers ultra-low loss and superior phase stability for precision measurements.

Fine-Pitch Electrical Accuracy

Offering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 4-hole flange mount RF connector ensures minimal reflection and excellent repeatability. Its micro-pin geometry supports high-sensitivity signal transfer and tight electrical tolerance control.

Precision Materials and Compliance

Built from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector offers reliable conductivity and corrosion resistance. Fully REACH and RoHS compliant, it withstands −55 °C to +165 °C in lab or production environments.

Compact Integration

The 5.64 mm hole pattern suits tight-spacing applications such as handheld analyzers, calibration modules, and compact network interfaces using 4-hole flange mount RF connectors.

Matching Female Counterpart

The 2.4-JFD11 is designed to mate with the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD11. For other precision options, explore Mechanc’s 2.4 mm RF connectors in the RF Connector Catalog.
