2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.38mm Pin Diameter

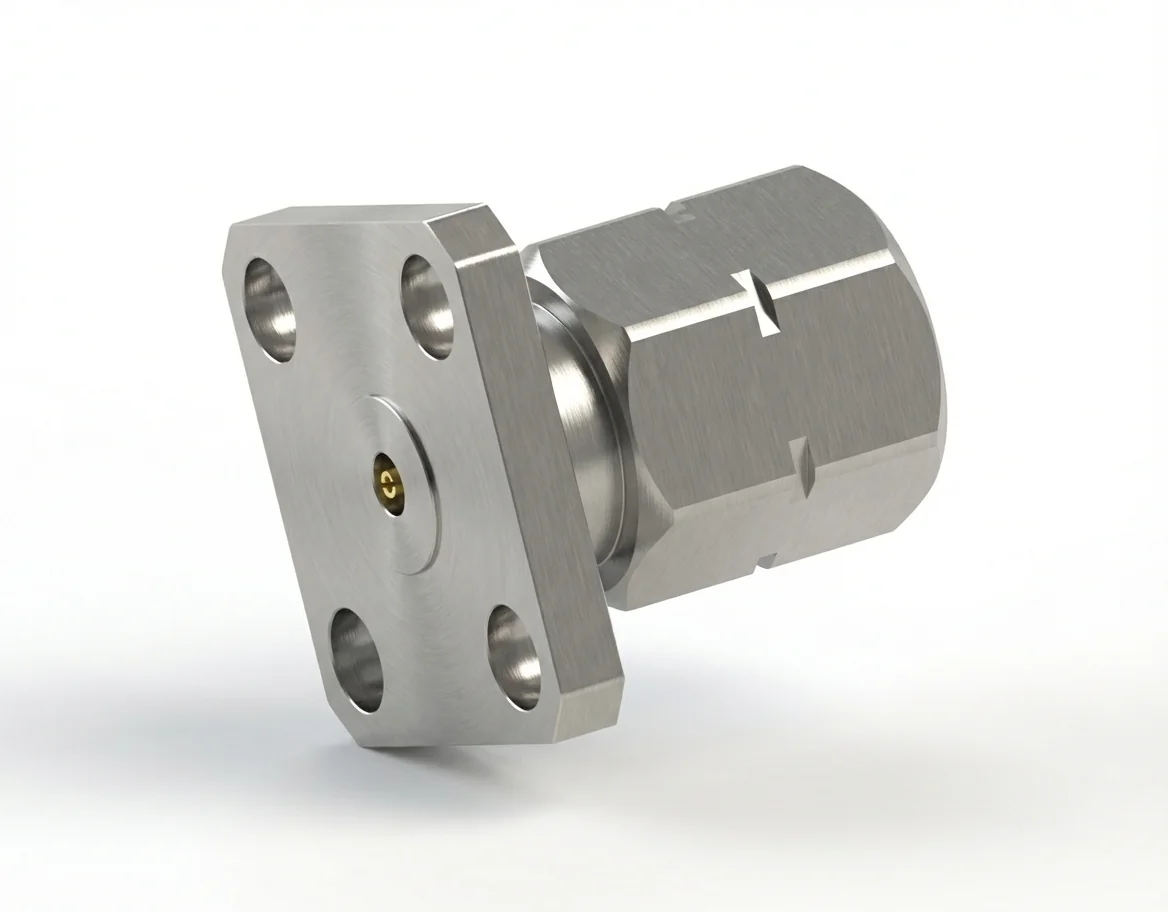

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD3

The 2.4mm male 4-hole flange mount RF connector with a 0.38 mm pin and 8.64 mm hole spacing is engineered for high-power RF testing where durability and signal precision are critical. Operating up to 50 GHz at 50 Ω, this field-replaceable connector delivers low-loss and high-stability performance across repeated connections.

Enhanced Power Handling

With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4mm male 4-hole flange mount RF connector supports broadband applications with excellent return-loss control. The 0.38 mm pin offers reinforced contact stability under moderate-power conditions without sacrificing frequency response.

Mechanical Durability and Compliance

Fabricated from stainless steel with gold-plated beryllium copper contacts, the 2.4mm male flange connector ensures a long service life and corrosion resistance. It operates between −55 °C and +165 °C and is fully REACH and RoHS compliant for safe, sustainable use.

Applications and Mounting

Commonly used in vector network analyzers, amplifier evaluations, and signal distribution modules, its four-hole mounting pattern aligns with 4-hole flange mount RF connectors for precise and repeatable torque control.

Compatible Counterpart and Customization

The 2.4-JFD3 is designed to mate with its corresponding female version, available as the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD3. Explore additional customized 2.4 mm RF connectors and high-frequency assemblies in the RF Connector Catalog.
