2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.38mm Pin Diameter

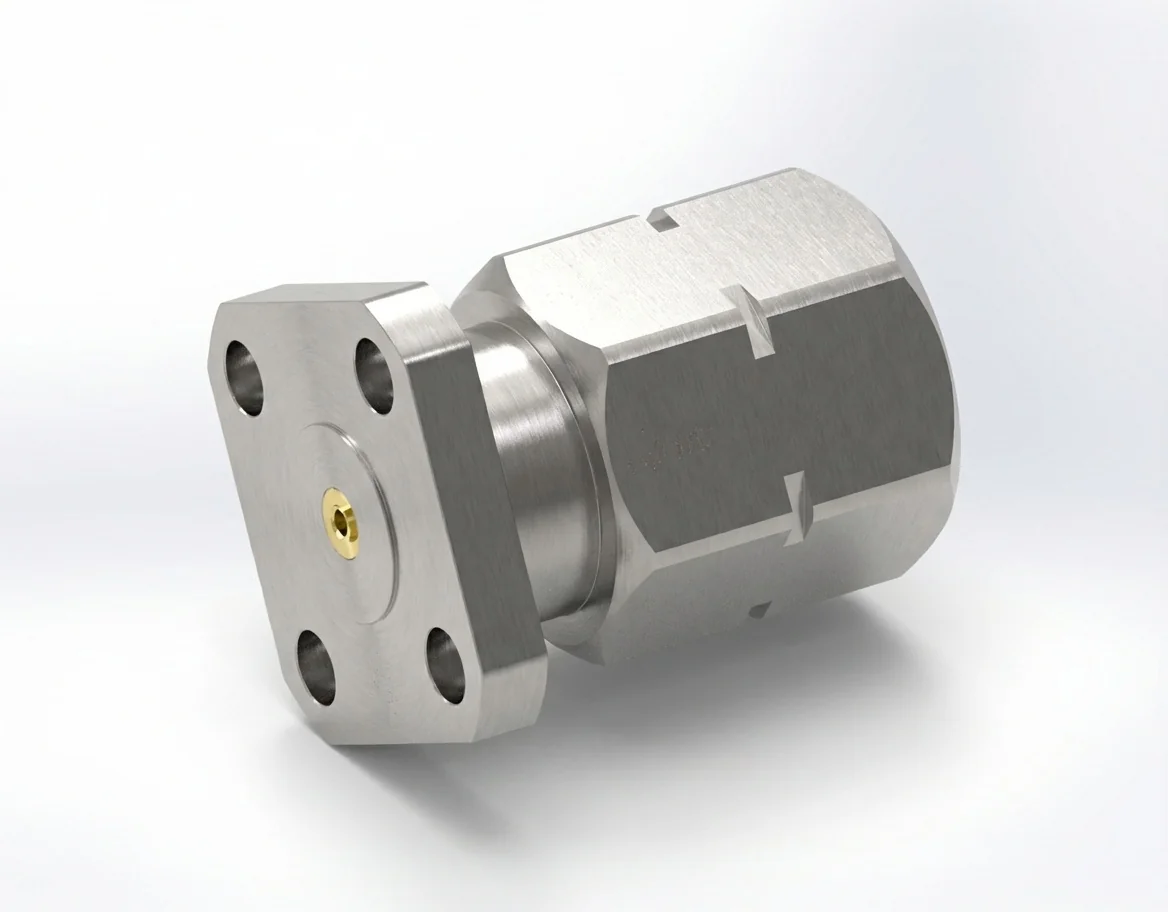

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD8

The 2.4 mm male 4-hole flange mount RF connector featuring a 0.38 mm pin and 6.35 mm hole spacing delivers robust mechanical stability and precise electrical alignment for high-frequency applications up to 50 GHz. This field-replaceable connector is ideal for multi-port testing and laboratory verification systems.

Consistent Electrical Integrity

Achieving VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 4-hole flange mount RF connector maintains stable impedance and low signal distortion across broad bandwidths. The 0.38 mm pin enhances contact reliability for frequent connection cycles.

Material Quality and Compliance

Precision-machined from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector is fully REACH and RoHS compliant and rated for −55 °C to +165 °C operation.

Applications in Test and Measurement

This connector is suited for broadband analyzer interfaces, switch modules, and RF amplifier evaluation benches that utilize 4-hole flange mount RF connectors for secure installation.

Compatible Version and Customization

The 2.4-JFD8 is designed to mate with the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD8. Mechanc also manufactures custom 2.4 mm RF connectors for precision RF instrumentation needs in its RF Connector Catalog.
