2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.3mm Pin Diameter

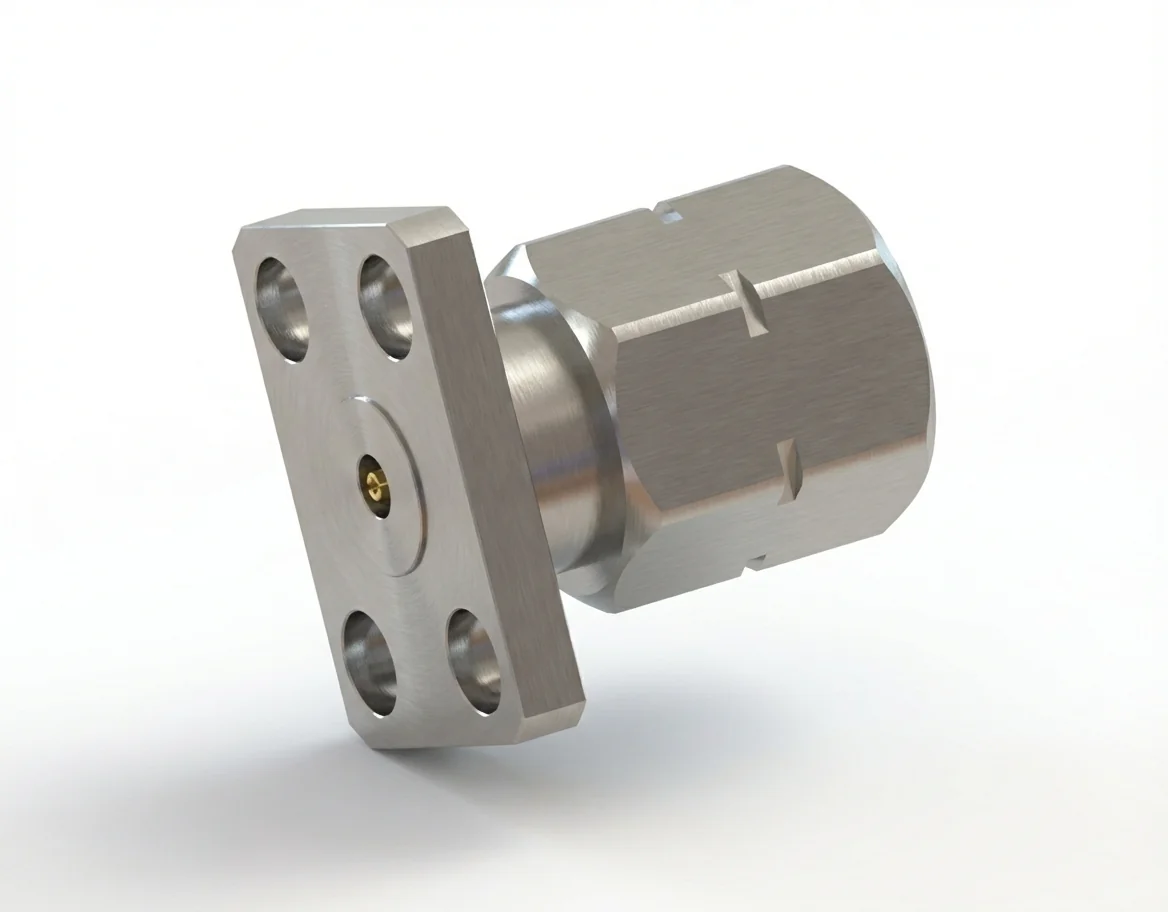

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD12

The 2.4 mm male 4-hole flange mount RF connector featuring a 0.30 mm pin and 5.64 mm hole spacing is ideal for broadband signal testing and modular assembly systems. Rated for 50 Ω up to 50 GHz, this field-replaceable connector provides consistent signal integrity across multiple mating cycles.

Stable High-Frequency Response

Delivering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male flange mount RF connector minimizes return loss and maintains phase alignment through repeated use. The 0.30 mm pin offers a perfect balance of mechanical strength and alignment precision.

Material Quality and Regulatory Assurance

Machined from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector delivers outstanding wear resistance and electrical stability. Fully REACH and RoHS compliant, it performs reliably from −55 °C to +165 °C.

Applications and Integration

Frequently used in microwave testing, phase stable assemblies, and vector calibration tools, this connector mounts securely on 4-hole flange mount RF modules requiring tight mechanical tolerances.

Compatible Connector and Customization

The 2.4-JFD12 mates with the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD12. Mechanc also produces custom 2.4 mm RF connectors for bespoke high-frequency solutions in its RF Connector Catalog.
