Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

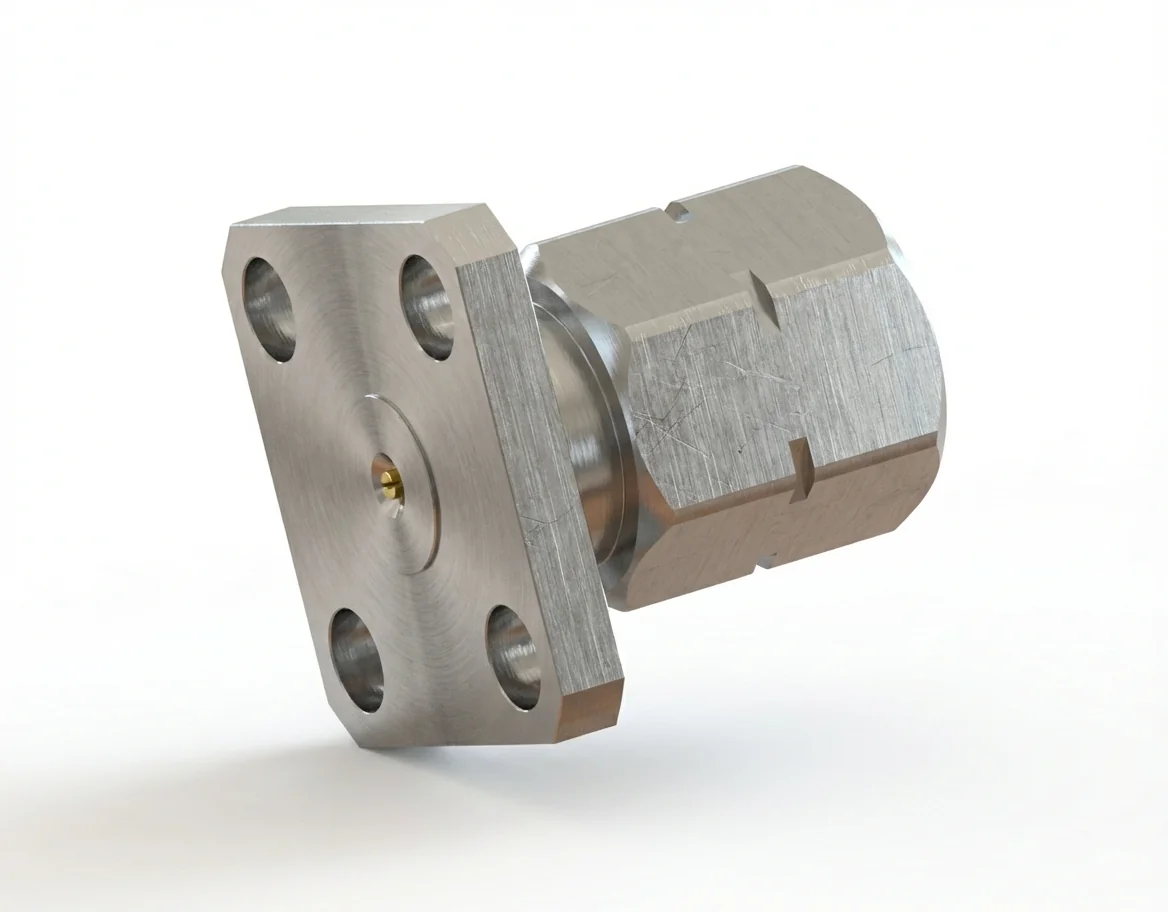

The 2.4mm male 4-hole flange mount RF connector with a 0.30 mm pin and 8.64 mm hole spacing offers a precise, stable interface for broadband test environments. Designed for 50 Ω systems up to 50 GHz, this field-replaceable connector combines durability and accuracy in demanding microwave and instrumentation setups.
With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4mm male 4-hole flange mount RF connector ensures low reflection and excellent phase consistency. The 0.30 mm pin diameter provides an optimal balance between contact pressure and electrical precision during repeated test cycles.
Machined from passivated stainless steel and fitted with gold-plated beryllium-copper contacts, the 2.4mm male flange connector guarantees long-term conductivity and corrosion resistance. It is fully REACH and RoHS compliant and performs reliably between −55 °C and +165 °C.
Ideal for use in calibration fixtures, power amplifier testing, and microwave modules, the connector’s four-hole pattern ensures solid attachment to 4-hole flange mount RF connectors across various high-frequency platforms.
The 2.4-JFD2 is designed to mate with its corresponding female version, available as the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD2. Mechanc also provides custom-engineered 2.4 mm RF connectors for specialized flange geometries and interface types. Visit the RF Connector Catalog for related solutions.
