2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.41mm Pin Diameter

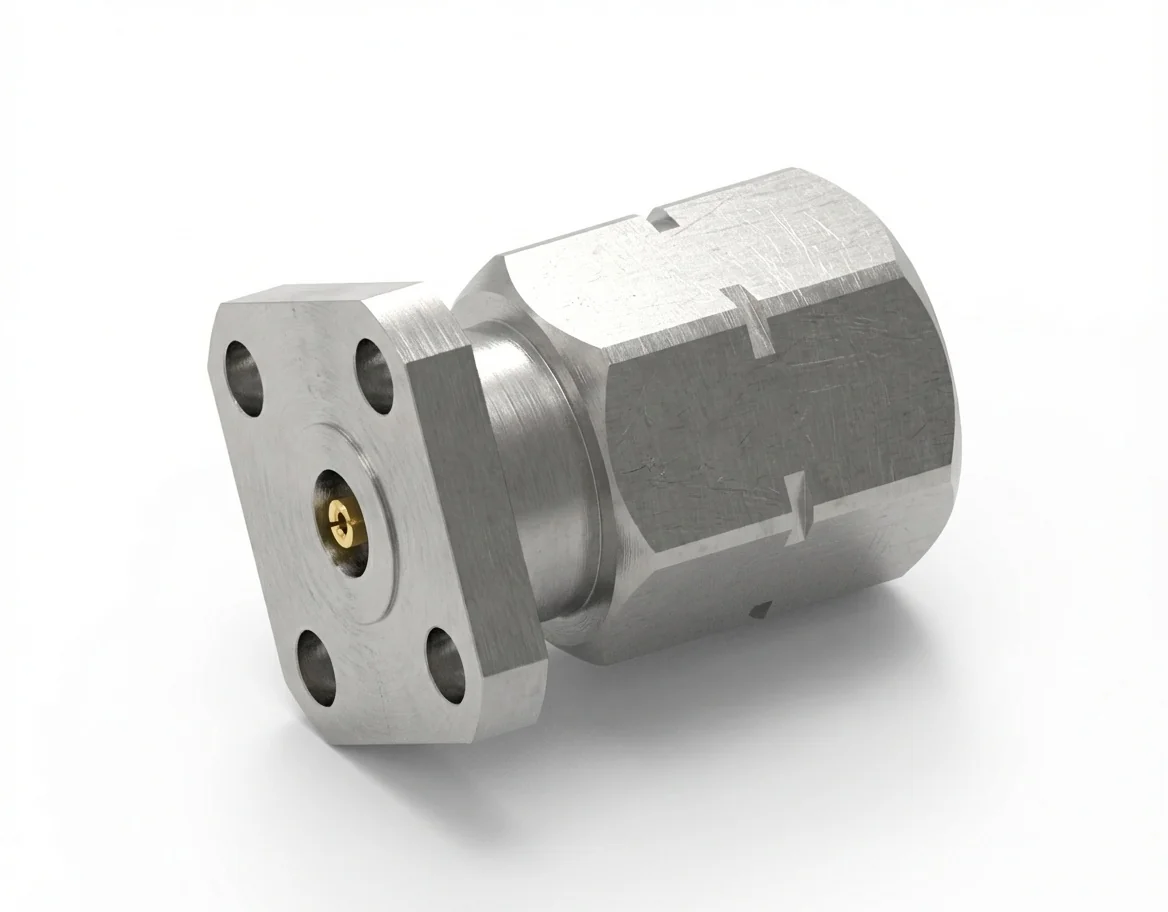

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD9

The 2.4 mm male 4-hole flange mount RF connector with a 0.41 mm pin and 6.35 mm hole spacing is optimized for precision high-power transmission and reliable phase stability. Operating at 50 Ω to 50 GHz, this field-replaceable connector ensures excellent return loss and durability under mechanical stress.

Electrical Precision and Low Reflection

With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 4-hole flange mount RF connector delivers high-efficiency signal transfer for demanding test and measurement systems. The 0.41 mm pin diameter offers reinforced contact stability for sustained high-power applications.

Construction and Regulatory Conformance

Made from stainless steel and gold-plated beryllium copper, the 2.4 mm male flange connector resists deformation and oxidation in frequent use. It is fully REACH and RoHS compliant and maintains performance between −55 °C and +165 °C.

Professional Applications

Used in precision signal analyzers, RF switch banks, and vector calibration systems, it mounts securely with standard 4-hole flange mount RF connectors for rigid assembly environments.

Matching Connector and Customization

The 2.4-JFD9 is compatible with its female counterpart, the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD9. Explore bespoke 2.4 mm RF connectors and system integration options in the RF Connector Catalog.
