2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.46mm Pin Diameter

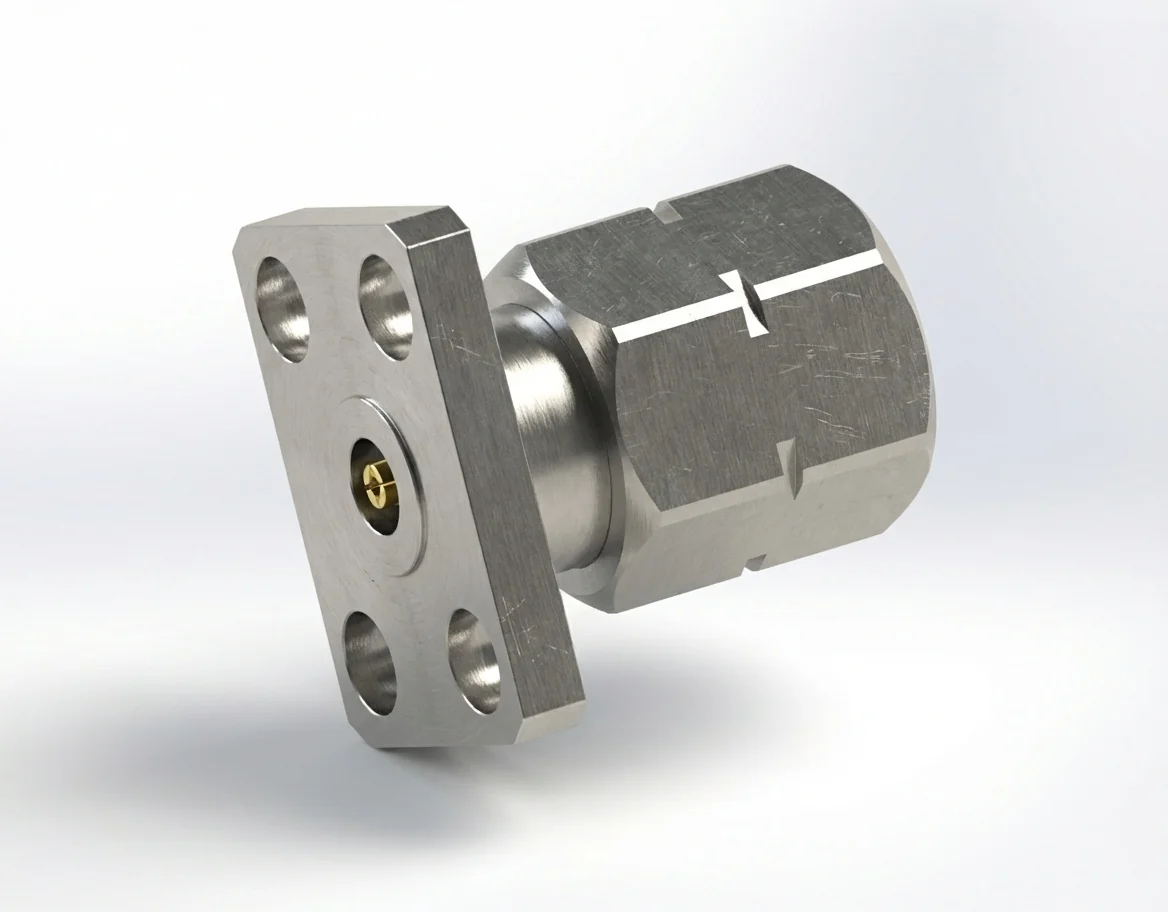

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD14

The 2.4 mm male 4-hole flange mount RF connector featuring a 0.46 mm pin and 5.64 mm hole spacing delivers high-power handling with outstanding signal fidelity. Rated for 50 Ω systems up to 50 GHz, this field-replaceable connector is built for laboratories and precision RF test benches.

Superior Return-Loss Performance

With VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male flange mount RF connector ensures consistent impedance matching. The larger 0.46 mm pin enhances contact area for mechanical strength and reduced thermal stress.

Durability and Environmental Compliance

Manufactured from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector is fully REACH and RoHS certified and maintains stable performance between −55 °C and +165 °C.

High-Power Applications

Used in amplifier testing, broadband signal distribution, and calibration frameworks, it mounts securely on 4-hole flange mount RF connectors to ensure repeatable alignment and torque stability.

Matching Component and Customization

The 2.4-JFD14 is paired with the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD14. For bespoke geometry or finish requirements, consult Mechanc’s 2.4 mm RF connector series in the RF Connector Catalog.
