2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.51mm Pin Diameter

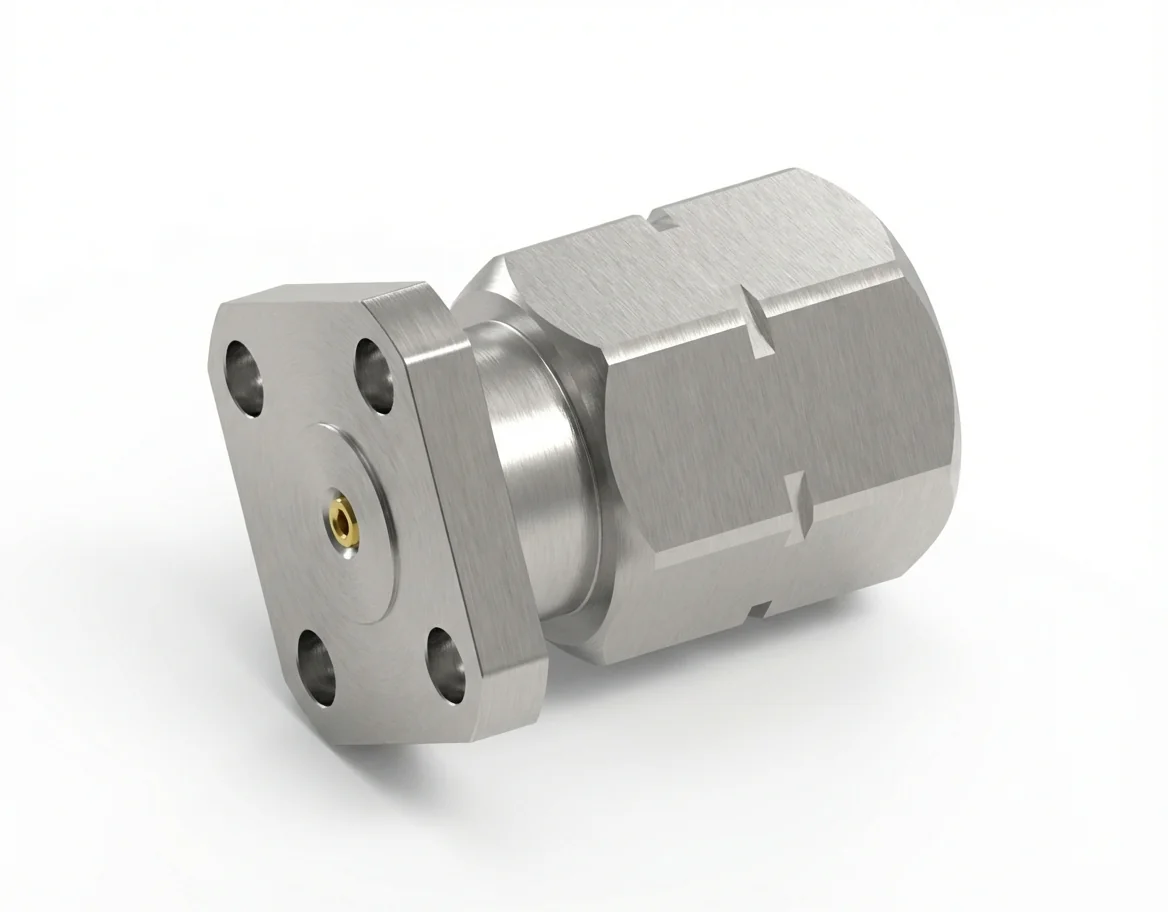

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD10

The 2.4 mm male 4-hole flange mount RF connector with a 0.51 mm pin and 6.35 mm hole spacing is built for rugged high-power measurement systems. With 50 Ω impedance and operation up to 50 GHz, this field-replaceable RF connector delivers repeatable and low-loss connections for long-term test reliability.

High-Power Electrical Stability

Rated VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male 4-hole flange mount RF connector ensures uniform impedance control even under repeated mating stress. The 0.51 mm pin enhances mechanical strength for sustained test rig operation.

Material Integrity and Compliance

Produced from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector offers superior conductivity and corrosion protection. It is fully REACH and RoHS certified and functions reliably between −55 °C and +165 °C.

Applications and System Integration

Ideal for broadband test stations, signal distribution units, and microwave network modules, its four-hole design is compatible with 4-hole flange mount RF connectors for repeatable alignment and torque control.

Compatible Model and Customization

The 2.4-JFD10 is designed to mate with its female equivalent, the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD10. Find customized 2.4 mm RF connectors and precision flange solutions in the RF Connector Catalog.
