2.4mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.51mm Pin Diameter

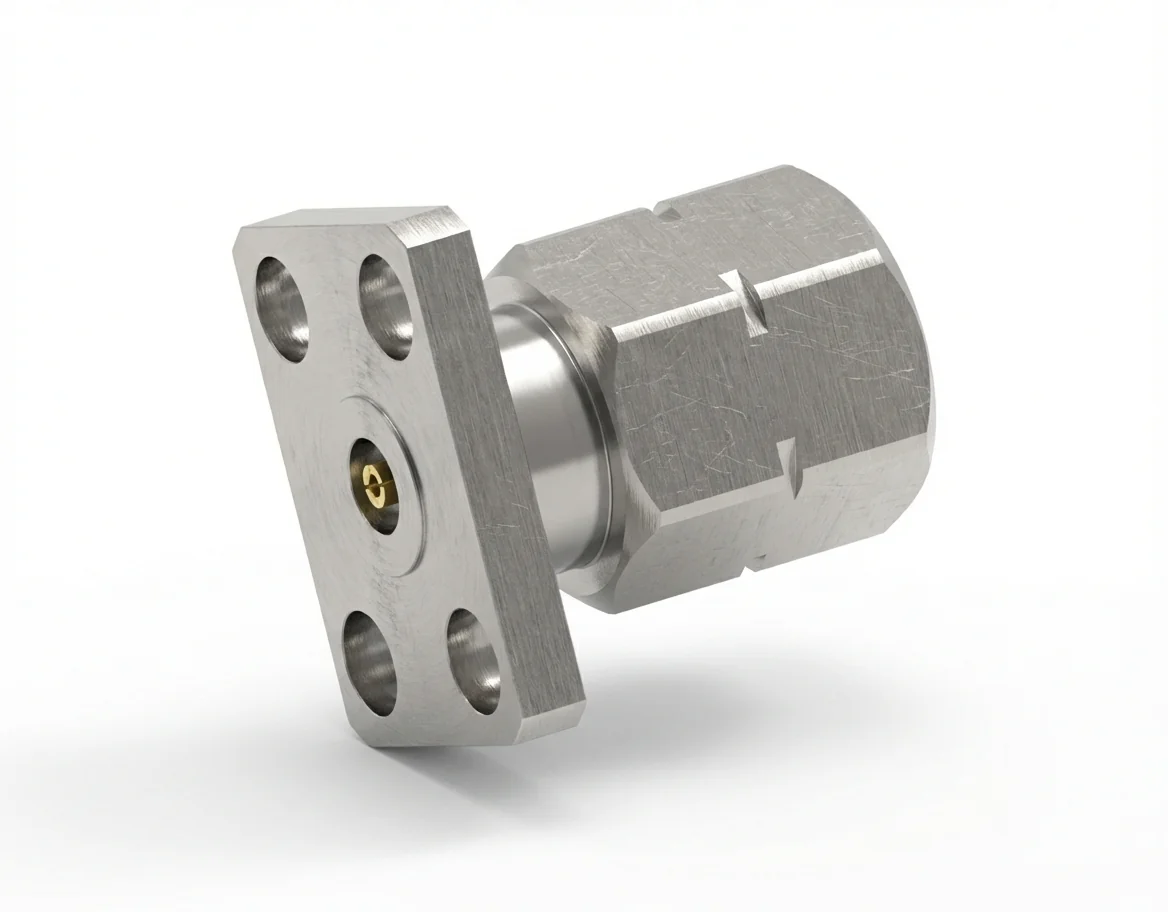

2.4mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-JFD15

The 2.4 mm male 4-hole flange mount RF connector with a 0.51 mm pin and 5.64 mm hole spacing is designed for rugged measurement applications demanding high stability and mechanical strength. Supporting frequencies up to 50 GHz at 50 Ω, this field-replaceable RF connector offers long-term reliability for precision bench testing.

Robust Electrical and Mechanical Design

Delivering VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4 mm male flange mount RF connector provides low-loss operation under repeated use. The thicker 0.51 mm pin ensures enhanced durability and thermal resilience.

Material Quality and Compliance

Fabricated from stainless steel with gold-plated beryllium copper contacts, the 2.4 mm male flange connector is fully REACH and RoHS compliant and operates reliably from −55 °C to +165 °C.

System Integration and Applications

Commonly used in microwave amplifier testing, vector network systems, and signal distribution modules, this connector mounts on 4-hole flange mount RF interfaces for precise mechanical coupling.

Compatible Counterpart and Customization

The 2.4-JFD15 is designed to mate with the 2.4 mm female 4-hole flange mount RF connector – Model 2.4-KFD15. Discover additional precision-grade 2.4 mm RF connectors and field-replaceable assemblies in the RF Connector Catalog.
