2.4mm Male Straight RF Connector – Fits CFT360 Coaxial Cable

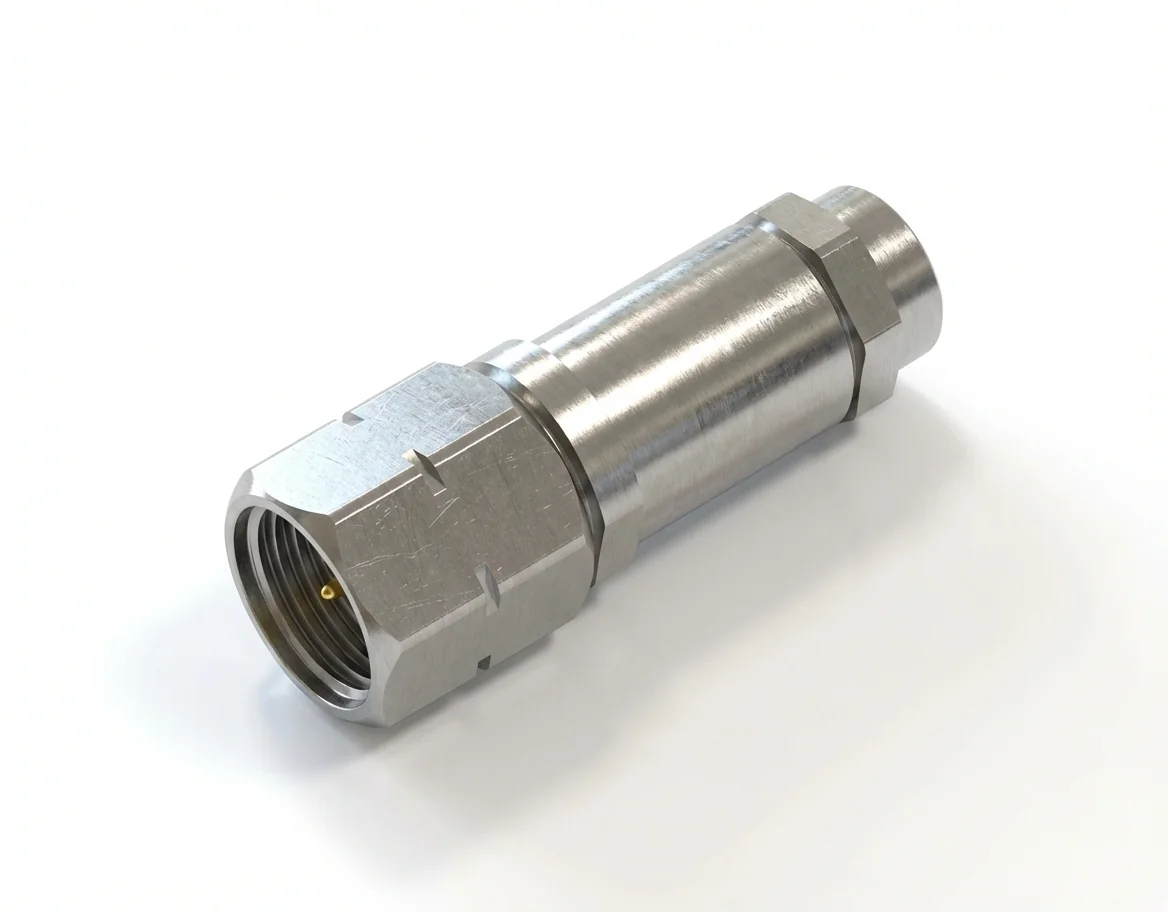

2.4mm Male Straight RF Connector – Cable Mount, Model 2.4-JCFT360-1

The 2.4 mm male straight cable-mount RF connector, model 2.4-JCFT360-1, is engineered for low-loss microwave and millimeter-wave systems using the CFT360 low-loss, phase-stable coaxial cable. Operating from DC to 50 GHz with a 50 Ω impedance, VSWR ≤ 1.2, and insertion loss ≤ 0.06 √f dB, it ensures precise impedance transition and broadband signal integrity across demanding production and field-test environments. Explore the full 2.4 mm connector family for matching interfaces.

Electrical Precision and Broadband Consistency

The 2.4-JCFT360-1 connector offers superior impedance uniformity and low reflection throughout the DC–50 GHz frequency range. Its precision 2.4 mm interface supports stable phase response and excellent return-loss control, ensuring accurate data transmission and measurement reliability in vector network analyzers, calibration kits, and telemetry systems.

Mechanical Construction and Interface Reliability

Featuring a passivated stainless-steel body and a gold-plated beryllium-copper center contact, the 2.4-JCFT360-1 provides low contact resistance and long-term durability under frequent mating cycles. Its robust mechanical design guarantees repeatable electrical performance and stable insertion loss in high-cycle, high-frequency test applications. For additional high-performance interconnects, explore our RF connectors.

Termination Design and Cable Integration

The solder-type cable-mount configuration supports strain relief and precise dielectric alignment, ensuring secure electrical connection and maintaining phase stability during cable handling or vibration. Discover more precision termination options under cable-mount connectors.

Optimized Pairing and Measurement Applications

When paired with the CFT360 low-loss, phase-stable coaxial cable, the 2.4-JCFT360-1 connector delivers consistent broadband performance, low insertion loss, and exceptional repeatability for use in vector-network-analysis, calibration, and microwave telemetry environments.

For the corresponding female version, see the mirror part:

2.4mm Female Straight RF Connector – Fits CFT360 Coaxial Cable, Model 2.4-KCFT360-1
.
