| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

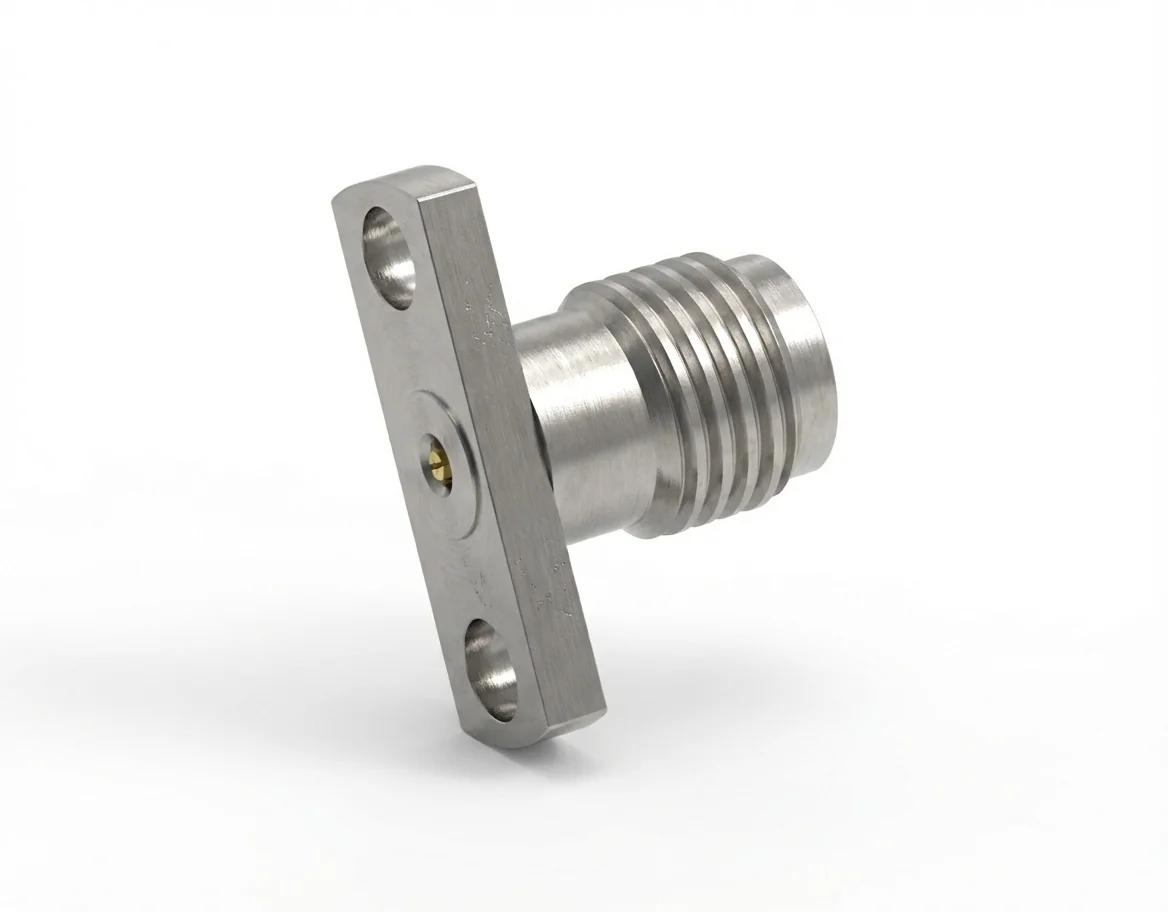

The 2.92 mm female 2-hole flange mount RF connector with a 0.23 mm pin and 10.2 mm hole spacing delivers a compact, high-accuracy interface for broadband systems operating up to 40 GHz. Designed for 50 Ω applications, this field-replaceable connector offers low insertion loss and excellent return loss in dense test setups.
With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector ensures precise impedance matching. The fine 0.23 mm pin guarantees excellent contact alignment and minimal reflection for metrology-grade connections.
Manufactured from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector is fully REACH and RoHS compliant and rated for −55 °C to +165 °C operation.
Ideal for RF analyzers, compact measurement modules, and 2-hole flange mount RF assemblies where precision and repeatability are critical.
Compatible with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD21. See more in the 2.92 mm RF connector series within our RF Connector Catalog.
