2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.23mm Pin Diameter

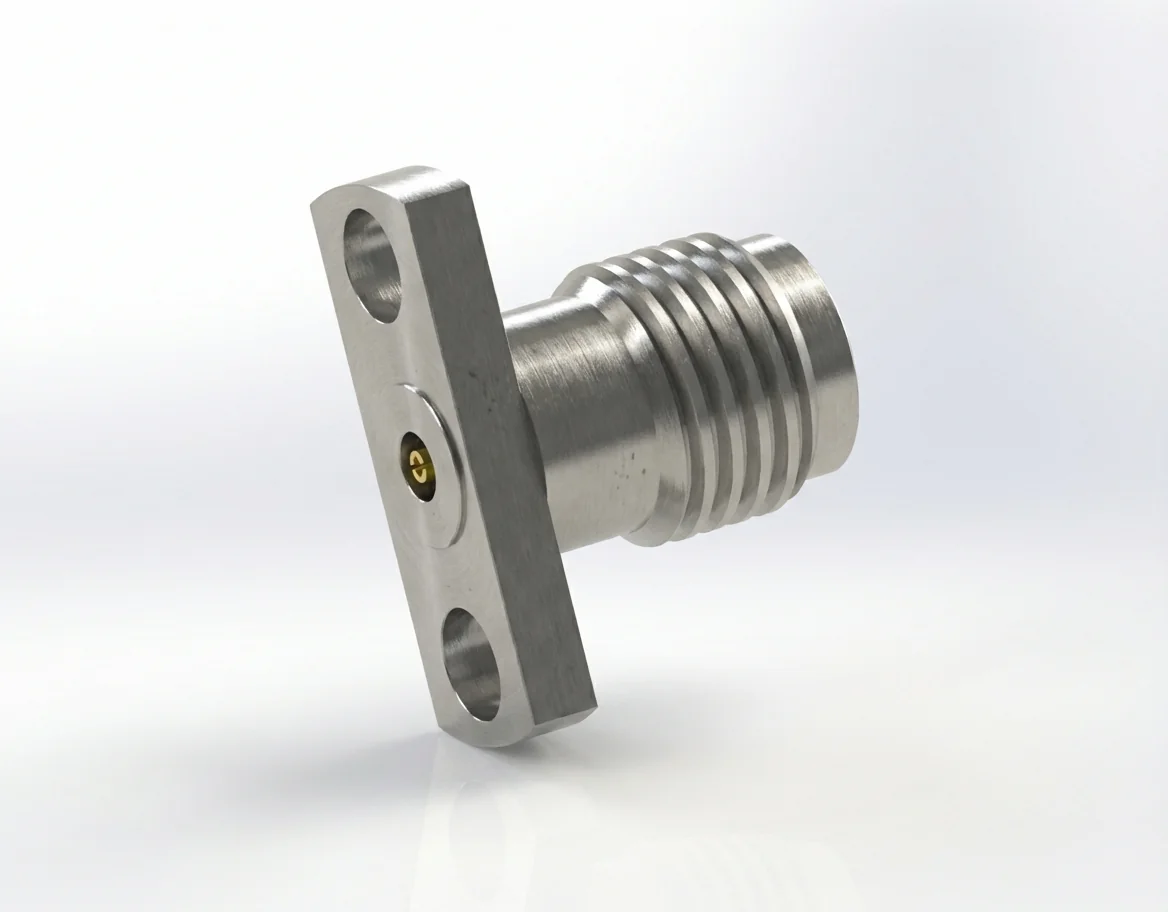

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD26

The 2.92 mm female 2-hole flange mount RF connector with a 0.23 mm pin and 9 mm hole spacing provides exceptional precision for miniaturized microwave systems operating up to 40 GHz. Designed for 50 Ω impedance, this field-replaceable connector ensures reliable signal stability within extremely tight mounting layouts.

Micro-Format Electrical Accuracy

Featuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector minimizes reflection and phase drift even in compact high-frequency modules. The 0.23 mm pin enables ultra-fine contact alignment for low-noise measurement circuits.

Precision Materials and Standards

Built from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector is REACH and RoHS compliant and performs reliably from −55 °C to +165 °C.

Compact Integration Applications

Ideal for micro-analyzers, calibration jigs, and 2-hole flange mount RF assemblies where space and precision are equally important.

Matching Male Version

Pair with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD26. Explore our 2.92 mm RF connector range within the RF Connector Catal
