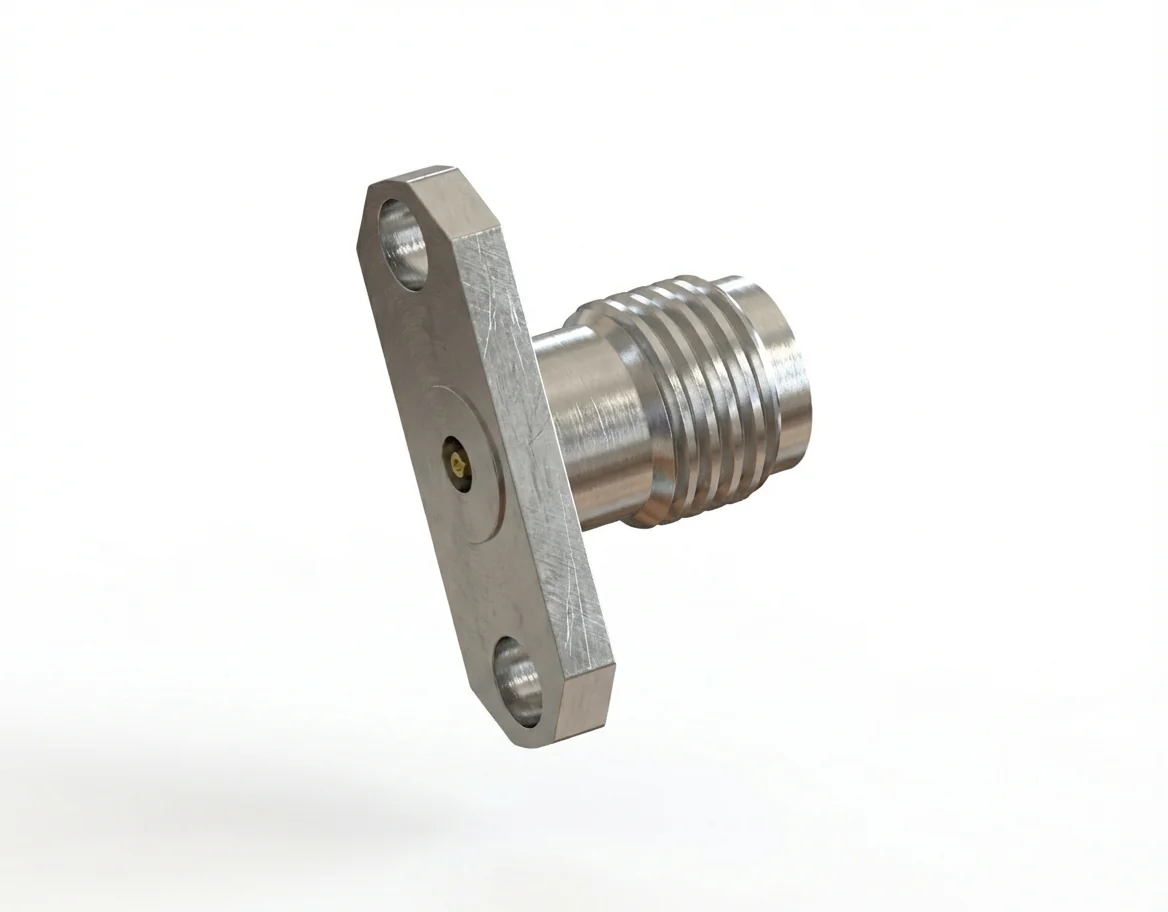

2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.38mm Pin Diameter

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD18

The 2.92 mm female 2-hole flange mount RF connector with a 0.38 mm pin and 12.22 mm hole spacing is engineered for mid-power precision applications up to 40 GHz. This field-replaceable connector provides outstanding phase stability and repeatability in test and measurement systems.

Low Loss and Stable VSWR

Delivering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector maintains superior signal integrity and return loss control for critical test environments.

Material Structure and Compliance

The 2.92 mm female flange connector is made of stainless steel with gold-plated beryllium copper contacts for maximum conductivity and longevity. Fully REACH and RoHS compliant.

Applications

Well-suited for signal measurement racks, calibration benches, and compact 2-hole flange mount RF modules in microwave systems.

Male Counterpart

Pair with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD18. Explore more in our 2.92 mm RF connector series within the RF Connector Catalog.
