2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.38mm Pin Diameter

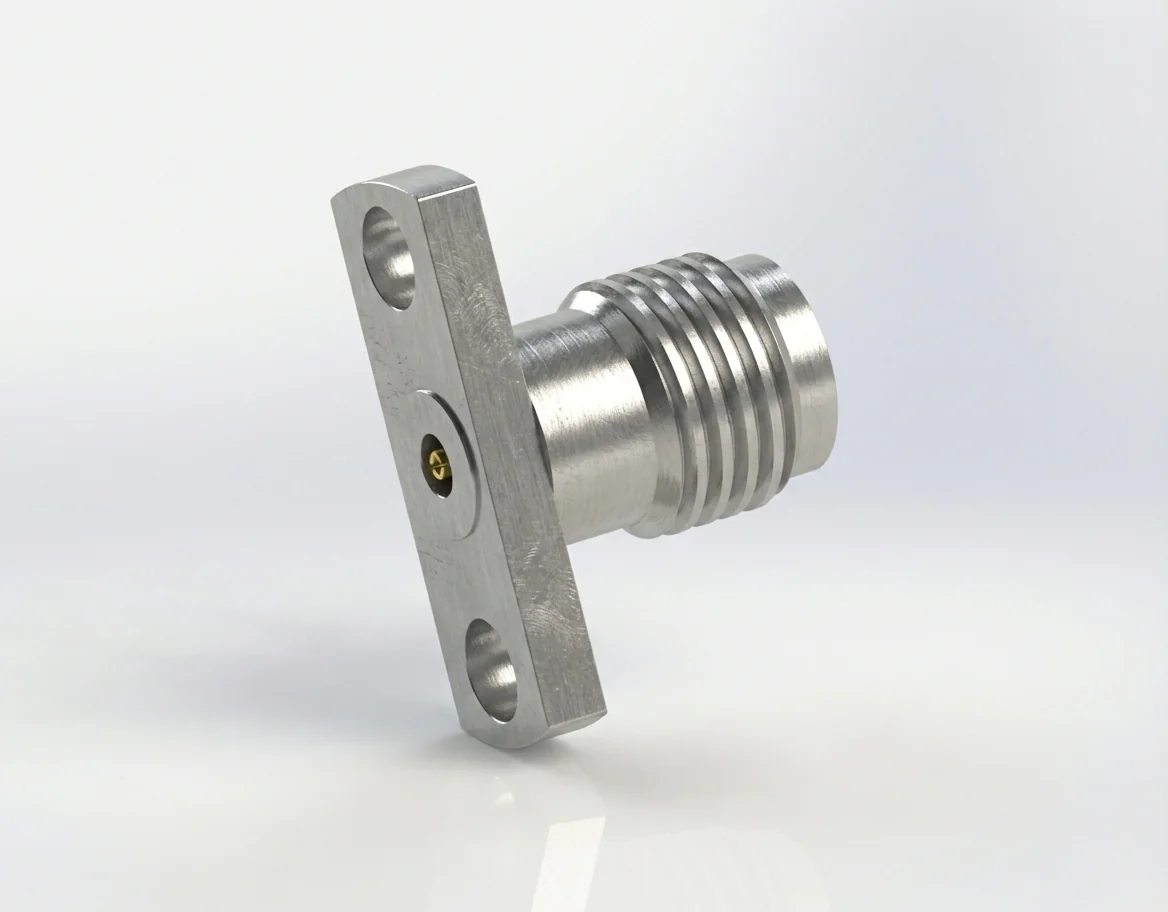

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD23

The 2.92 mm female 2-hole flange mount RF connector with a 0.38 mm pin and 10.2 mm hole spacing is engineered for precise broadband testing and integration into microwave systems up to 40 GHz. This field-replaceable connector provides low reflection, stable impedance, and repeatable mating cycles.

Electrical Characteristics

VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB ensure exceptional signal consistency. The 0.38 mm pin enhances structural stability without compromising high-frequency performance.

Material Quality and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector is REACH and RoHS compliant and operates safely from −55 °C to +165 °C.

Applications

Ideal for calibration kits, measurement systems, and 2-hole flange mount RF devices requiring stable electrical contact.

Male Counterpart

Combine with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD23. Find all matching connectors in our 2.92 mm RF connector series within the RF Connector Catalog.
