2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.3mm Pin Diameter

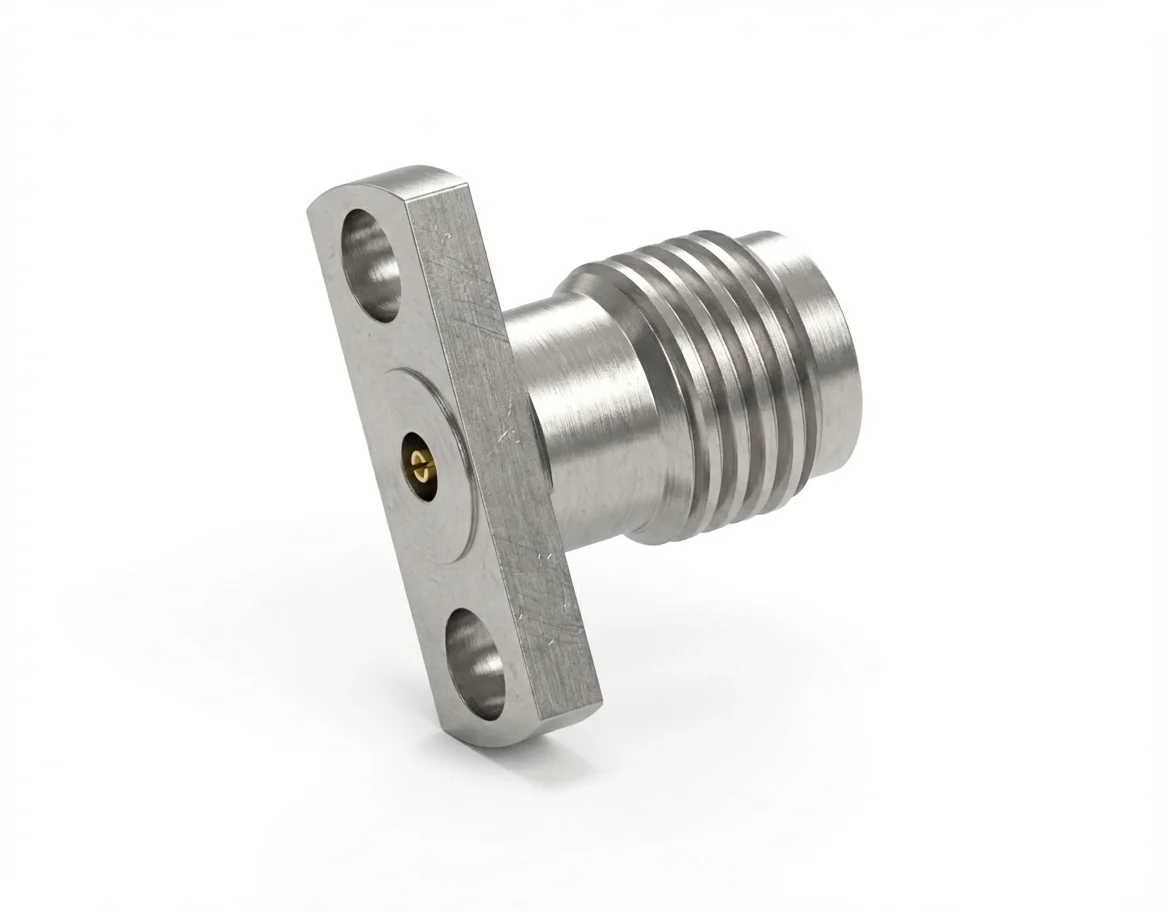

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD27

The 2.92 mm female 2-hole flange mount RF connector with a 0.30 mm pin and 9 mm hole spacing delivers stable electrical performance for high-density testing systems up to 40 GHz. This field-replaceable connector combines rugged reliability with superior signal control.

Low-Loss Signal Transmission

Offering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector provides broadband consistency and reduced standing-wave error. The 0.30 mm pin adds mechanical strength for repeat mating cycles.

High-Quality Construction

Made from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector fully meets REACH and RoHS environmental compliance.

Applications and Integration

Perfect for metrology, network analyzers, and compact 2-hole flange mount RF modules requiring consistent precision in confined configurations.

Paired Male Connector

Use with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD27. View the complete 2.92 mm RF connector series in our RF Connector Catalog.
