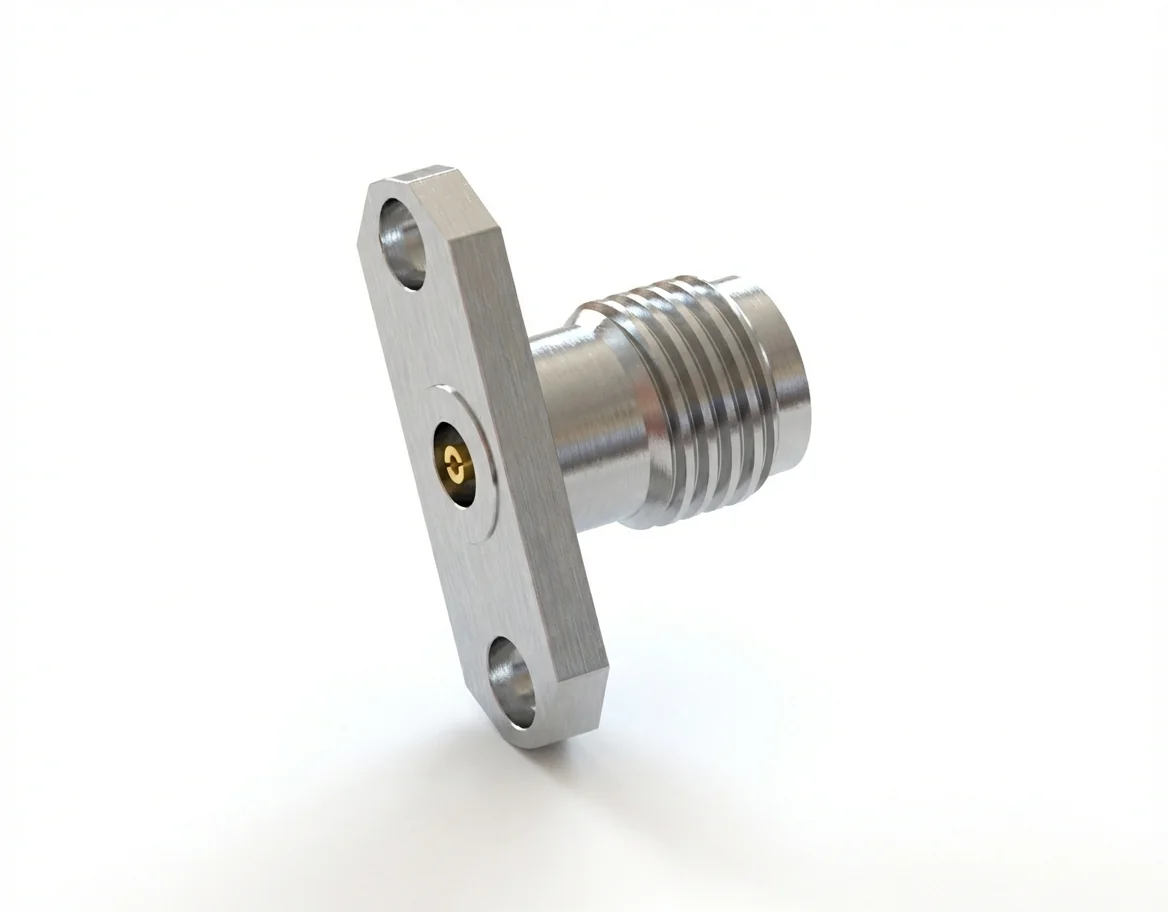

2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.46mm Pin Diameter

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD19

The 2.92 mm female 2-hole flange mount RF connector with a 0.46 mm pin and 12.22 mm hole spacing offers enhanced power capacity and mechanical stability for precision RF measurements up to 40 GHz. This field-replaceable connector combines strength and signal accuracy in a compact form factor.

Electrical and Mechanical Performance

Achieving VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector minimizes signal loss while supporting stable high-frequency operation. The 0.46 mm pin increases contact surface for robust mating.

Material Quality and Compliance

Fabricated from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector is fully REACH and RoHS compliant and temperature rated from −55 °C to +165 °C.

Applications

Used in test fixtures, radar analyzers, and 2-hole flange mount RF assemblies requiring both strength and accuracy.

Matching Male Connector

Compatible with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD19. Find it in the 2.92 mm RF connector section of our RF Connector Catalog.
