2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.46mm Pin Diameter

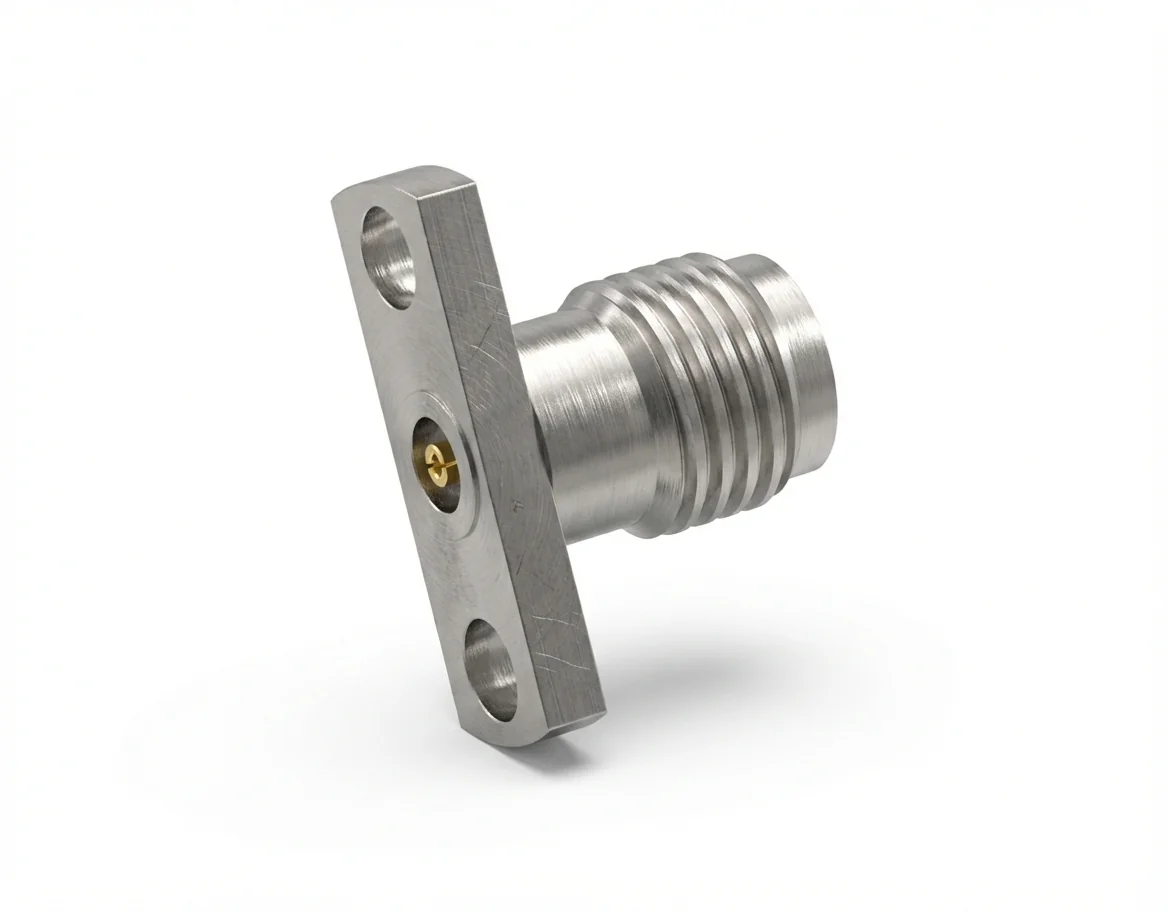

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD24

The 2.92 mm female 2-hole flange mount RF connector with a 0.46 mm pin and 10.2 mm hole spacing provides a high-strength interface for RF modules and test benches operating up to 40 GHz. This field-replaceable connector ensures reliable broadband performance and mechanical endurance.

High-Frequency Consistency

Delivering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector maintains precise impedance and phase integrity. The 0.46 mm pin enhances mechanical stability for frequent mating operations.

Material and Standards

Made from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector is REACH and RoHS compliant and temperature rated between −55 °C and +165 °C.

Applications

Commonly used in radar calibration units and 2-hole flange mount RF assemblies requiring both mechanical robustness and low reflection.

Male Equivalent

Compatible with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD24. Discover related connectors in the 2.92 mm RF connector series and our RF Connector Catalog.
