2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.46mm Pin Diameter

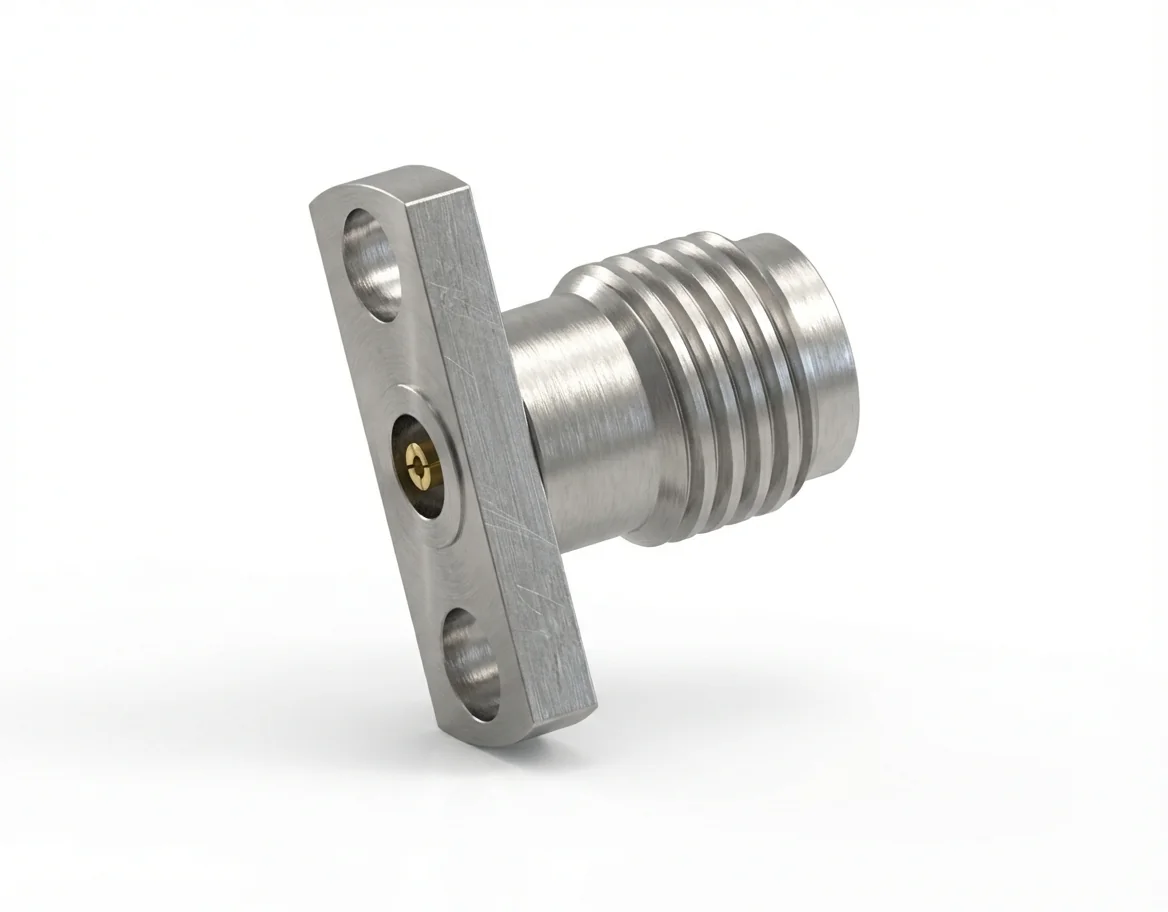

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD29

The 2.92 mm female 2-hole flange mount RF connector with a 0.46 mm pin and 9 mm hole spacing offers a solid, low-loss connection for high-power precision applications up to 40 GHz. This field-replaceable connector guarantees durability and consistency through frequent assembly cycles.

Signal Integrity and Mechanical Resilience

Ensuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector delivers accurate phase stability with the 0.46 mm pin’s enhanced contact pressure.

Material Composition and Compliance

The 2.92 mm female flange connector is made of stainless steel and gold-plated beryllium copper and meets REACH and RoHS standards for safe, dependable performance across temperature extremes.

Application Environments

Used in radar calibration benches, microwave analyzers, and 2-hole flange mount RF assemblies that demand consistent broadband accuracy.

Complementary Male Version

Pair with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD29. View all options in the 2.92 mm RF connector section of our RF Connector Catalog.
